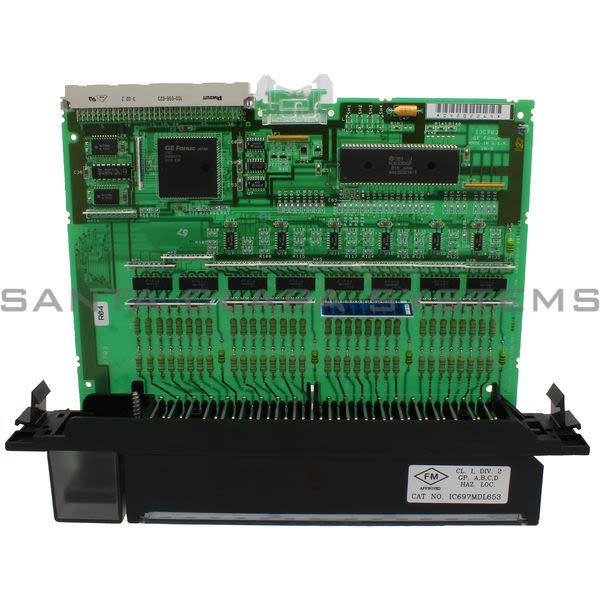

• General Electric IC697 MDL 653 Input Module | Series 90-70 I/O Product Image

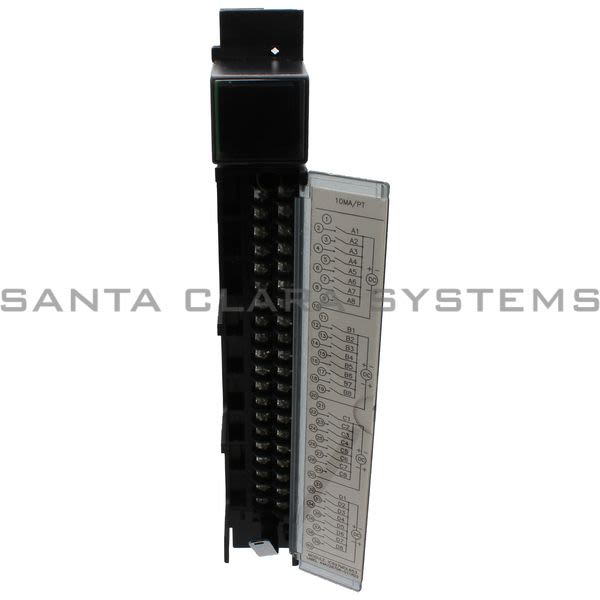

  • General Electric IC697 MDL 653 Input Module | Series 90-70 I/O Product Image

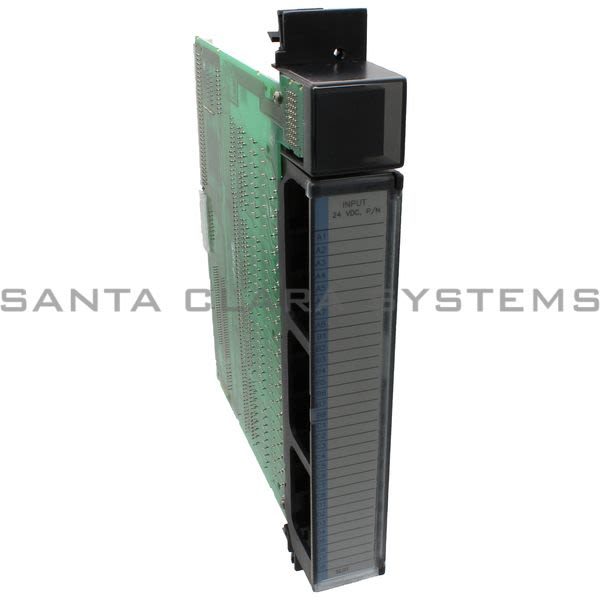

  • General Electric IC697 MDL 653 Input Module | Series 90-70 I/O Product Image
  • General Electric IC697 MDL 653 Barcode

IC697MDL653

Product Summary:

  • Type of Device: 24 Volt DC Positive/Negative Logic, 32-Point Input Module
  • Rated Voltage: 24 volts DC
  • Inputs per Module: 32 (four groups of eight inputs each)
  • Isolation: 1500 volts - any input to backplane, 500 volts between input groups
  • Input Voltage Range: -3 to +30 volts DC
Get a Quote

Current response time:

15 Minutes 29 Seconds
  • Description: Input Module | Series 90-70 I/O
  • Type of Device: 24 Volt DC Positive/Negative Logic, 32-Point Input Module
  • Product Description: 32 Points - Four isolated groups of 8 points each; Positive/Negative Logic Compatibility; Proximity switch compatible; Input filter selectable - 1mS or 10mS; One input configurable as interrupt.
  • Rated Voltage: 24 volts DC
  • Inputs per Module: 32 (four groups of eight inputs each)
  • Isolation: 1500 volts - any input to backplane, 500 volts between input groups
  • Input Voltage Range: -3 to +30 volts DC
  • Input Current: 10mA (typical) at rated voltage
  • Input Impedance: 2.6K ohm, typical
  • On-state Voltage: 13.5 volts to 30 volts
  • On-state Current: 6mA to 15mA
  • Off-state Voltage: 0 volts to 5 volts
  • Off-state Current: 0 to 2mA (2mA minimum at 5V input)
  • Filter Delay Time: 1mS or 10mS configurable
  • Current Required from 5V Bus: 0.30 amp
  • VME: System designed to support the VME standard C.1
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC697MDL653 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
