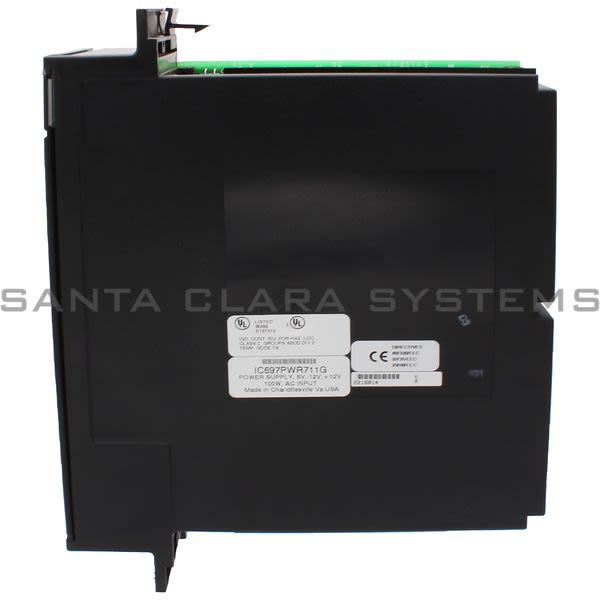

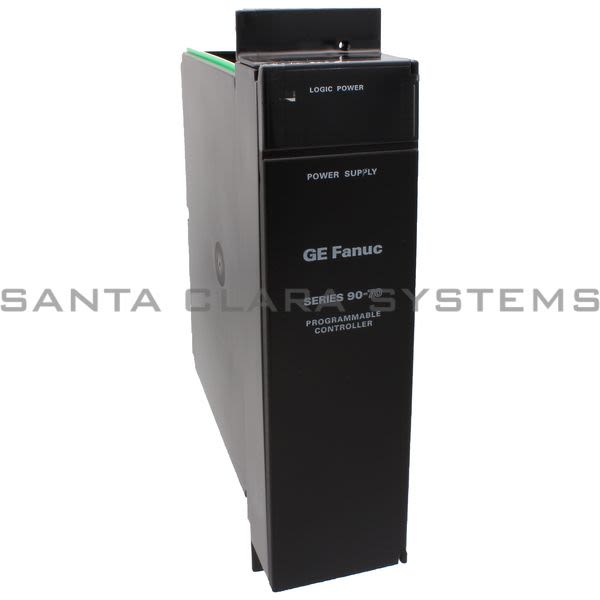

IC697PWR711

General Electric - Power Supply Module

Product Summary:

Type of Device: Power Supply Module, 100W, 120/240 VAC or 125 VDC
Nominal Rated Voltage: 120/240 VAC, or 125 VDC
Input Voltage Range AC Input: 90 to 264 VAC, 47 to 63 Hz
Input Voltage Range DC Input: 100 to 150 VDC
Input Power: 135 watts (typical), 160 watts (maximum)

Current response time:

By 5AM PT on Monday

Emergency?

Description: Power Supply Module
Type of Device: Power Supply Module, 100W, 120/240 VAC or 125 VDC

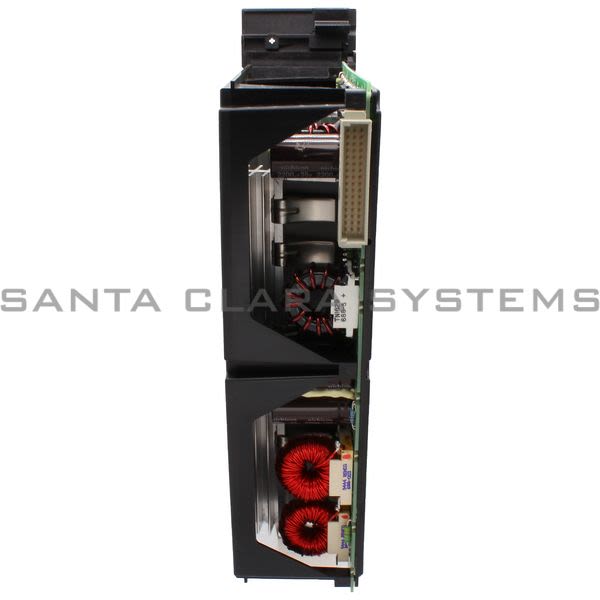

Product Description: The 100 Watt Power Supply Module is a rack-mounted unit that plugs directly into a 48-pin backplanemounted connector in the leftmost slot in the rack. It provides +5 volt, +12 volt and -12 volt power, and logic level sequencing signals to the backplane.
Nominal Rated Voltage: 120/240 VAC, or 125 VDC
Input Voltage Range AC Input: 90 to 264 VAC, 47 to 63 Hz
Input Voltage Range DC Input: 100 to 150 VDC

Input Power: 135 watts (typical), 160 watts (maximum)
Features: Electronic short circuit overcurrent protection; Two rack operation from a single power supply; Power Factor correction for AC operation; Jumper for overvoltage protection devices.

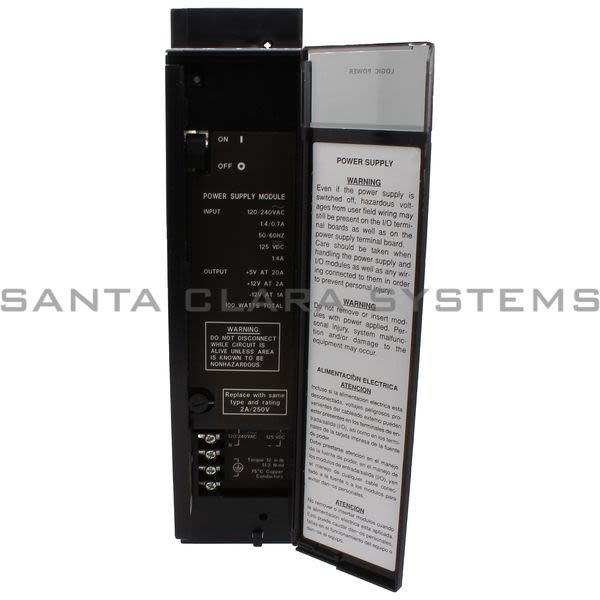

Power Supply Door: The power supply door can easily be opened by grasping the upper left corner of the door with your right thumb or a fingernail and gently pulling the door towards you. Use care when opening the door since pulling from the bottom can cause the hinge or the door to break.
Holdup Time: 21 milliseconds minimum (from loss of AC input)
VME: System designed to support the VME standard C.1
