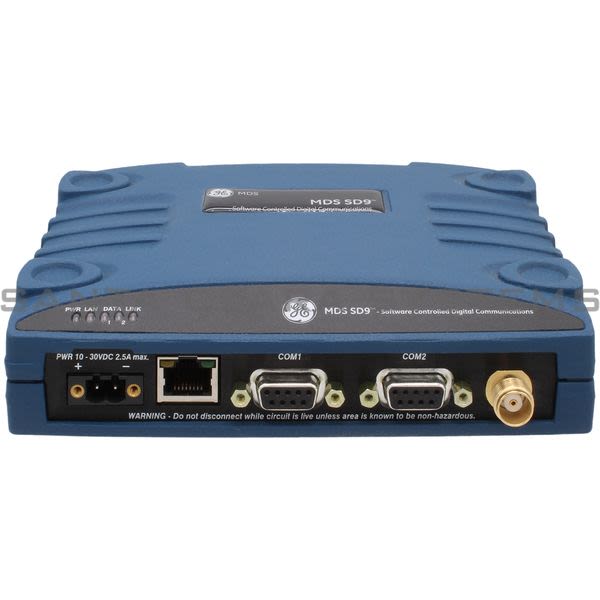

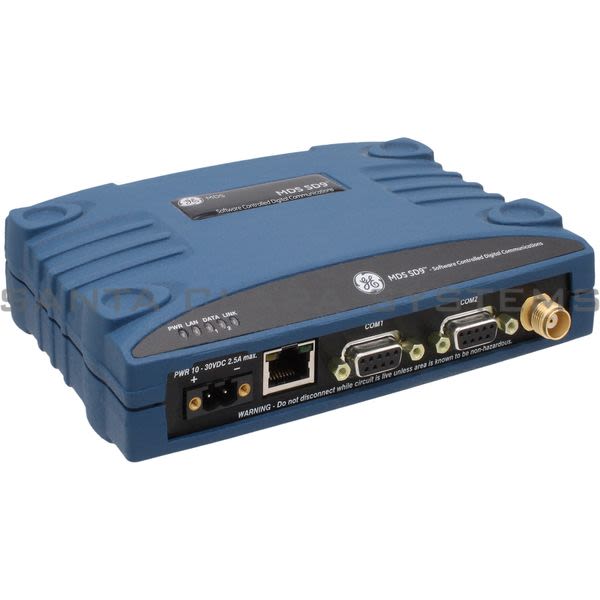

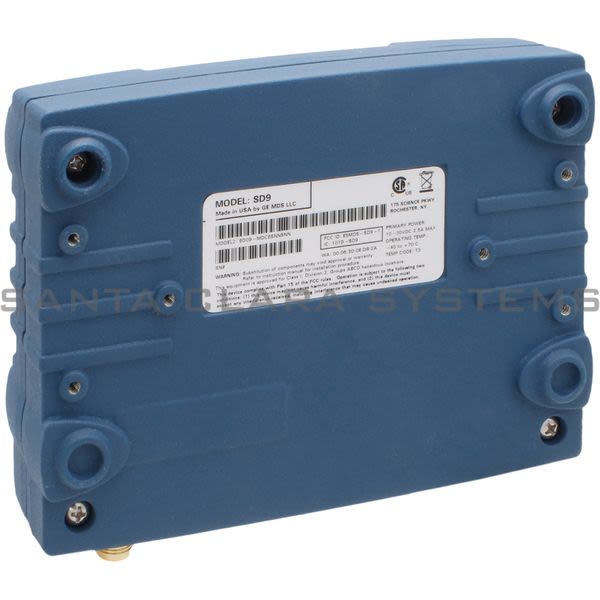

SD09-MDCESNNSNN

General Electric - Software Defined Managed Serial Radio

Product Summary:

Voltage: 10.0 to 30 VDC (Negative ground only)
Maximum Usable Sensitivity: –112 dBm at 1x10–6 BER (9600 BPS)
Carrier Power: 0.1 Watts to 5 Watts
Power Measurement Accuracy: +/- 1.5 dB
Duty Cycle: Continuous

Current response time:

8 Minutes 1 Second

Description: Software Defined Managed Serial Radio
Voltage: 10.0 to 30 VDC (Negative ground only)
Maximum Usable Sensitivity: –112 dBm at 1x10–6 BER (9600 BPS)
Carrier Power: 0.1 Watts to 5 Watts
Power Measurement Accuracy: +/- 1.5 dB
Duty Cycle: Continuous
Output Impedance: 50 Ohm

Signaling Types: RS-232/485; DB-9 Female connector Ethernet 10/100 Mbps; RJ-45F connector
COM2 Data Rates: 300–115200 bps, asynchronous
Data Latency: 11 ms typical (transparent)
TX Supply Current: 2.5 Amperes maximum @ 5 Watts RF Output
RX Supply Current: ) Operational — 125 mA, Nominal Sleep — <10 mA typical @ 13.8 VDC
Fuse: 5 Ampere, internal

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SD09-MDCESNNSNN . Santa Clara Systems carries 6,312 items from General Electric.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
