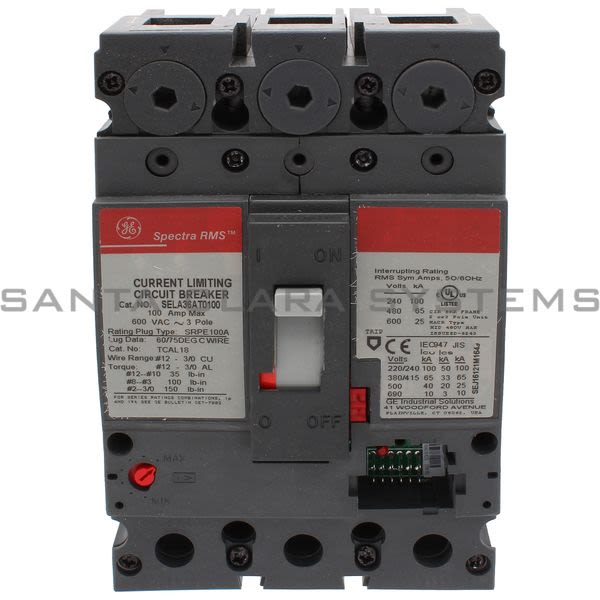

• General Electric SELA 36AT 0100 Molded Case Circuit Breaker; 100 Amp, 600 Volt AC, 3-Pole Product Image

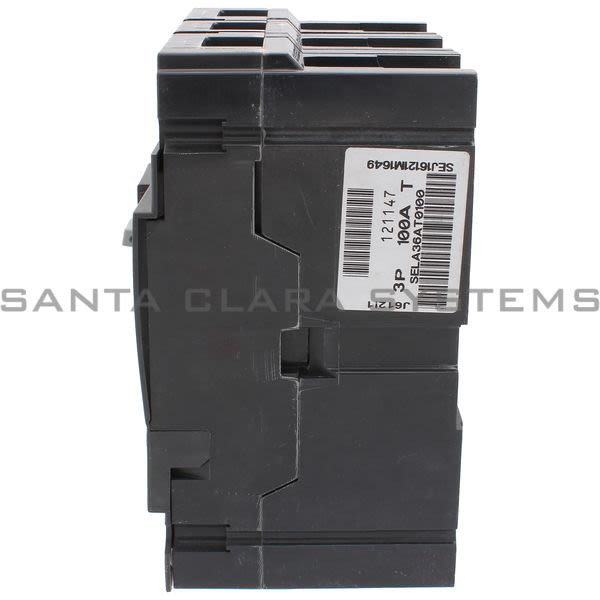

  • General Electric SELA 36AT 0100 Molded Case Circuit Breaker; 100 Amp, 600 Volt AC, 3-Pole Product Image

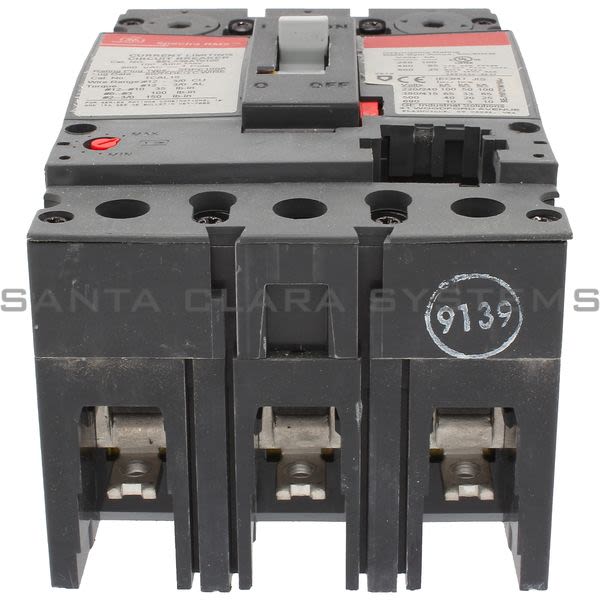

  • General Electric SELA 36AT 0100 Molded Case Circuit Breaker; 100 Amp, 600 Volt AC, 3-Pole Product Image
  • General Electric SELA 36AT 0100 Molded Case Circuit Breaker; 100 Amp, 600 Volt AC, 3-Pole Product Image
  • General Electric SELA 36AT 0100 Barcode

SELA36AT0100

Product Summary:

  • Type of Device: Molded Case Circuit Breaker; 100 Amp, 600 Volt AC, 3-Pole
  • Height: 7.0000
  • Width: 7.0000
  • Amperage: 100 A
  • Length: 7.5000
Get a Quote

Current response time:

14 Minutes 40 Seconds
  • Description: Molded Case Circuit Breaker; 100 Amp, 600 Volt AC, 3-Pole
  • Type of Device: Molded Case Circuit Breaker; 100 Amp, 600 Volt AC, 3-Pole
  • Product Description: Spectra RMS Molded Case Circuit Breakers (SE150, SF250, SG600 and SK1200) have a digital, solid state, RMS sensing trip system with field installable, front-mounted rating plugs to establish or change the breaker ampere rating. Adjustable instantaneous with tracking short-time is standard on all frames. The trip system uses digital sampling to determine the RMS value of sinusoidal and non-sinusoidal currents.
  • Height: 7.0000
  • Width: 7.0000
  • Amperage: 100 A
  • Length: 7.5000
  • UPC: 783164211474
  • Voltage Rating: 600 Volt AC
  • Standards: UL File E11592, CSA File LR40350, IEC 947-2, GSA Compliance
  • Wire Size: 12-3/0 AWG (Al/Cu)
  • Application: For Reverse Feed
  • Connection: Lug Terminal
  • Frame: SE150
  • Gross Weight: 5.430
  • Interrupt Rating: 25 Kilo-Amp
  • Interrupting Rating: 100 Kiloampere At 240 Vac, 65 Kiloampere At 480 Vac, 25 Kiloampere At 600 VAC (Ul); 100 Kiloampere At 220 to 240 Vac, 65 Kiloampere At 380 to 415 Vac, 40 Kiloampere At 500 Vac, 5 Kiloampere At 690 VAC (Iec)
  • Load Rating: HACR
  • Maximum AC Voltage Rating: 690
  • Trip Range: Interchangeable
  • Trip Type: Electronic, Interchangeable
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SELA36AT0100 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
