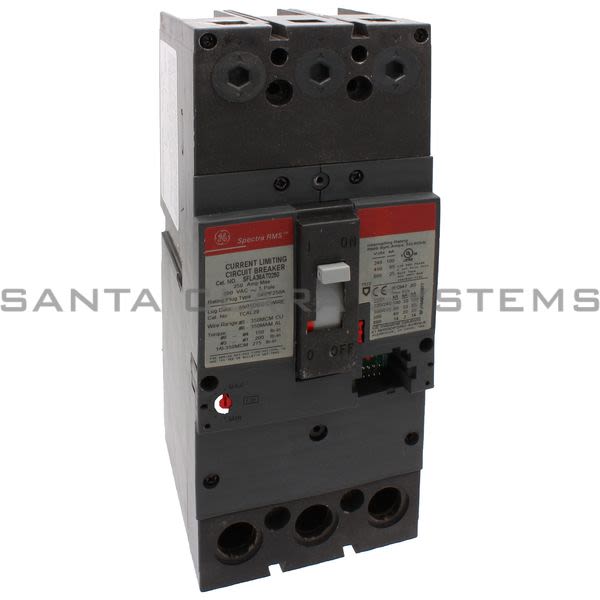

• General Electric SFLA 36AT 0250 Circuit Breaker Product Image

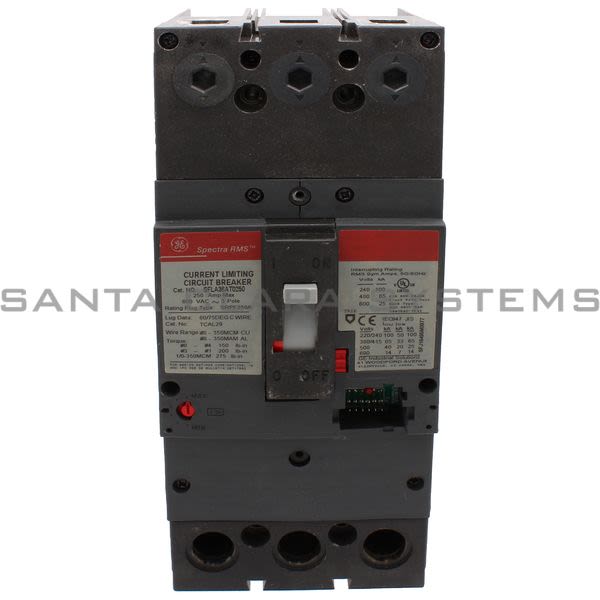

  • General Electric SFLA 36AT 0250 Circuit Breaker Product Image

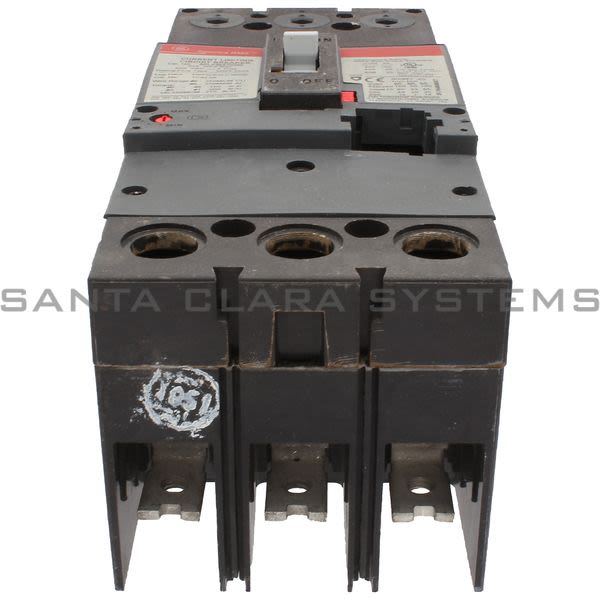

  • General Electric SFLA 36AT 0250 Circuit Breaker Product Image

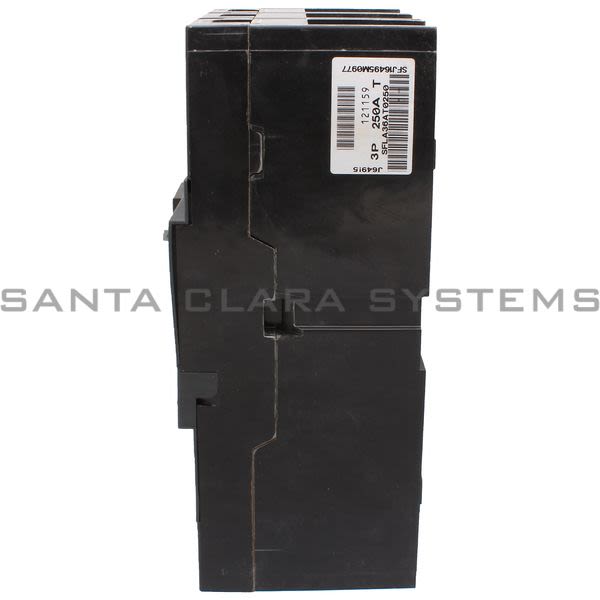

  • General Electric SFLA 36AT 0250 Circuit Breaker Product Image
  • General Electric SFLA 36AT 0250 Barcode

SFLA36AT0250

Product Summary:

  • Type of Device: Molded Case Circuit Breaker; 250 Amp, 600 Volt AC, 3-Pole
  • Height: 7.2500
  • Width: 8.2500
  • Amperage: 250 Amp
  • Length: 11.0000
Get a Quote

Current response time:

19 Minutes 59 Seconds
  • Description: Circuit Breaker
  • Type of Device: Molded Case Circuit Breaker; 250 Amp, 600 Volt AC, 3-Pole
  • Product Description: The standard circuit breaker ampere rating can be established/changed through digital, solid-state, RMS sensing trip system with field installable, front-mounted rating plugs. Trip system of circuit breaker determines RMS value of sinusoidal and non-sinusoidal currents using digital sampling. Industrial electronic interchangeable trip breaker includes short/long/instantaneous time trip functionality. Circuit breaker has voltage rating of 600 VAC and current rating of 250 Amps. It has interrupt current rating of 25 kilo-Amps. Molded case circuit breaker features LSI trip function and TCAL29 lugs for better connectivity. It is well suited for reverse fed application and has HACR special markings for convenience. It measures 4.120 Inch x 3.810 Inch x 10.120 Inch. Circuit breaker is UL listed and CSA/CE certified.
  • Height: 7.2500
  • Width: 8.2500
  • Amperage: 250 Amp
  • Length: 11.0000
  • UPC: 78316421159
  • Voltage Rating: 600 Volt AC
  • Number Of Poles: 3 Poles
  • Standards: UL File E11592, CSA LR 40350
  • Wire Size: 8 AWG-350 KCMIL (Al/Cu)
  • Standard: E11592
  • Application: For Reverse Feed
  • Brand / Label: Components
  • Commodity Code: 32742
  • Connection: Lug Terminal
  • Dimension: 4.120 Inch Width x 3.810 Inch Depth x 10.120 Inch Height
  • Frame: SF250
  • Gross Weight: 8.100
  • Interrupt Rating: 25 Kilo-Amp
  • Interrupting Rating: 100 Kiloampere At 240 Vac, 65 Kiloampere At 480 Vac, 25 Kiloampere At 600 VAC (Ul); 100 Kiloampere At 220 to 240 Vac, 65 Kiloampere At 380 to 415 Vac, 40 Kiloampere At 500 Vac, 14 Kiloampere At 690 VAC (Iec)
  • Load Rating: HACR
  • Maximum AC Voltage Rating: 690
  • Trip Range: Interchangeable
  • Trip Type: Electronic, Interchangeable
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SFLA36AT0250 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
