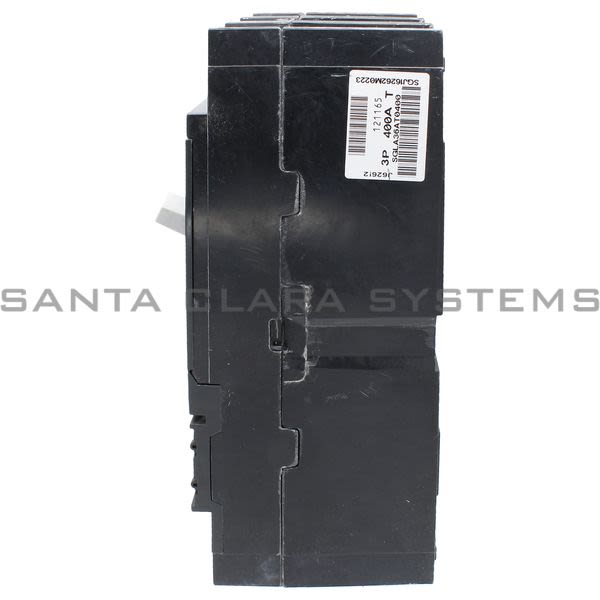

• General Electric SGLA 36AT 0400 Circuit Breaker Product Image

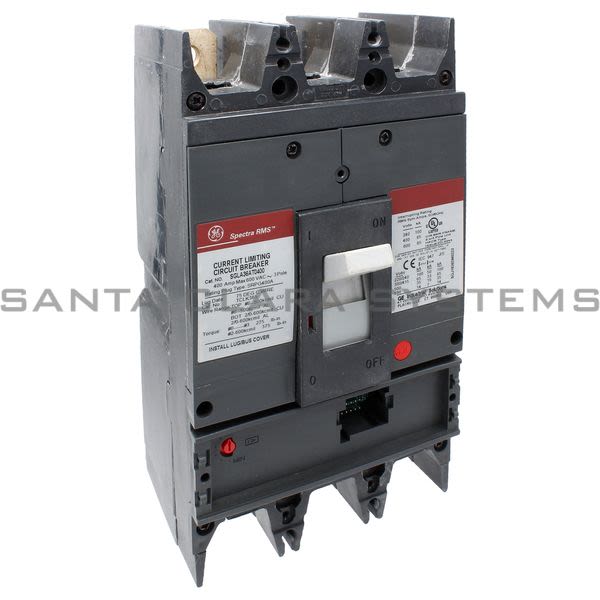

  • General Electric SGLA 36AT 0400 Circuit Breaker Product Image

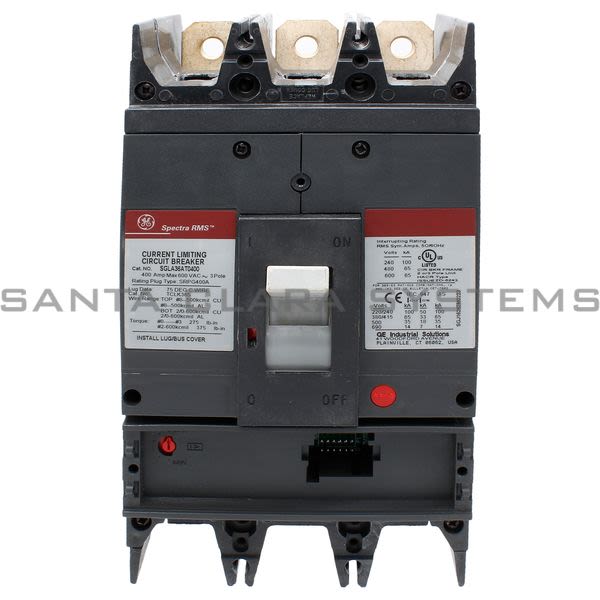

  • General Electric SGLA 36AT 0400 Circuit Breaker Product Image
  • General Electric SGLA 36AT 0400 Circuit Breaker Product Image
  • General Electric SGLA 36AT 0400 Barcode

SGLA36AT0400

Product Summary:

  • Type of Device: Molded Case Circuit Breaker; 400 Amp, 600 Volt AC, 3-Pole
  • Height: 7.5000
  • Width: 9.5000
  • Amperage: Amperage
  • Length: 11.7500
Let Us Find It

Current response time:

11 Minutes 49 Seconds
  • Description: Circuit Breaker
  • Type of Device: Molded Case Circuit Breaker; 400 Amp, 600 Volt AC, 3-Pole
  • Product Description: General Electric Spectra RMS 3-Pole Molded case circuit breaker features a digital, solid state, RMS sensing trip system with field installable, front-mounted rating plugs to establish or change the breaker current rating. The trip system uses digital sampling to determine the RMS value of sinusoidal and non-sinusoidal currents. It has an SG type of frame with an interchangeable trip style and includes long/short/instantaneous trip time. It has AC voltage rating of 600 Volts and current rating of 400 Amps. The breaker has interrupting rating of 65 kilo-Amps at 480 Volts. It measures 5.500 Inch x 3.810 Inch x 10.090 Inch. It is UL and CE approved.
  • Height: 7.5000
  • Width: 9.5000
  • Amperage: Amperage
  • Length: 11.7500
  • UPC: 78316421165
  • Voltage Rating: 600 Volt AC
  • Number of Poles: 3 Poles
  • Type: SG600 Line, Digital, Solid-State
  • Standards: UL File E11592, CSA LR 40350
  • Wire Size: (2) 2/0 AWG-500 KCMIL (Al), (1) 8 AWG-600 KCMIL (Al)
  • Application: For Reverse Feed
  • Frame: SG
  • Gross Weight: 13.820
  • Interrupt Rating: 65 Kilo-Amp at 480 Volt AC
  • Interrupting Rating: 100 Kiloampere At 240 Vac, 65 Kiloampere At 480/600 VAC (Ul); 100 Kiloampere At 220 to 240 Vac, 65 Kiloampere At 380 to 415 Vac, 35 Kiloampere At 500 Vac, 14 Kiloampere At 690 VAC (Iec)
  • Load Rating: HACR
  • Maximum AC Voltage Rating: 690
  • Trip Range: Interchangeable
  • Trip Type: Electronic, Interchangeable
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SGLA36AT0400 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
