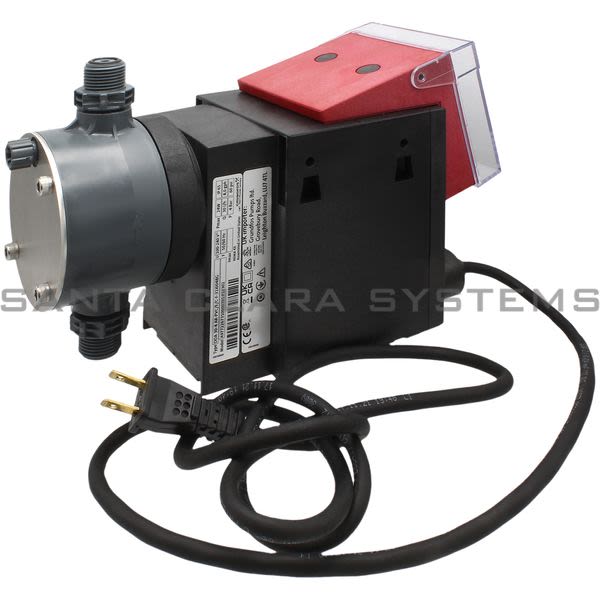

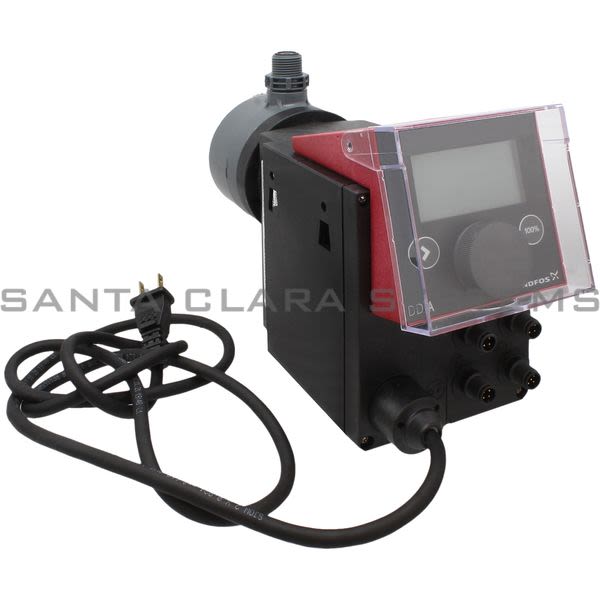

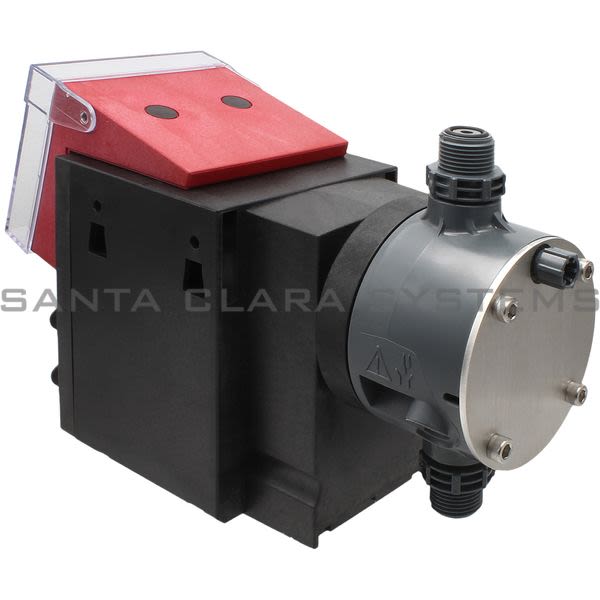

DDA30-4AR-PVC-E-C-F-31I004BG
Product Summary:
- Dosing Head: PVC (Polyvinyl Chloride)
- Valve Ball: Ceramic
- Gasket: EPDM
- Range of Ambient Temperature: 32 F - 113 F
- Maximum Operating Pressure: 58.02 PSI
- Description: Digital Dosing Pump - Chemical Metering
- Dosing Head: PVC (Polyvinyl Chloride)
- Valve Ball: Ceramic
- Gasket: EPDM
- Range of Ambient Temperature: 32 F - 113 F
- Maximum Operating Pressure: 58.02 PSI
- Pump Inlet Hose: 3/8 x 1/2" S
- Pump Outlet Hose: 3/8 x 1/2" S
- Max. Suction Lift During Operation: 19.7 ft
- Max. Suction Lift During Priming: 6.56 ft
- Max. Flow: 7.925 US Gal/Hour
- Max. Flow in Slow Mode 50%: 3.963 US Gal/Hour
- Max. Flow in Slow Mode 25%: 1.981 US Gal/Hour
- Maximum Viscosity at 100 %: 150 mPas
- Maximum Viscosity in Slow Mode 50 %: 600 mPas
- Maximum Viscosity in Slow Mode 25 %: 1500 mPas
- Accuracy of Repeatability: 1 %
- Liquid Temperature Range: 14 F - 113 F
- Selected Liquid Temperature: 68 F
- Density: 62.29 lb/ft
- Maximum Power Input - P1: 24 W
- Main Frequency: 50 / 60 Hz
- Rated Voltage: 1 x 100-240 V
- Enclosure Class (IEC 34-5): IP65 / NEMA 4X
- Length of Cable: 4.92 ft
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on DDA30-4AR-PVC-E-C-F-31I004BG . Santa Clara Systems carries 5 items from Grundfos.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
