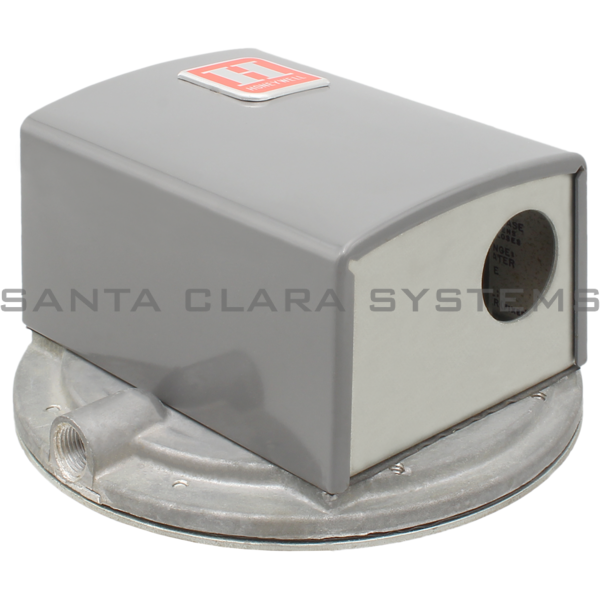

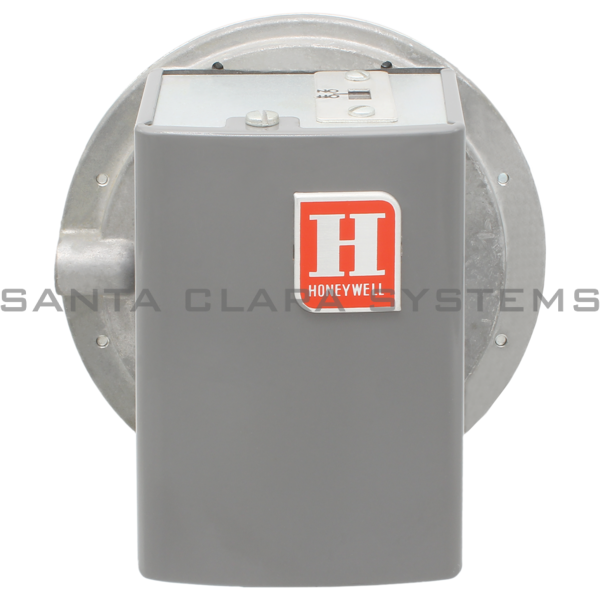

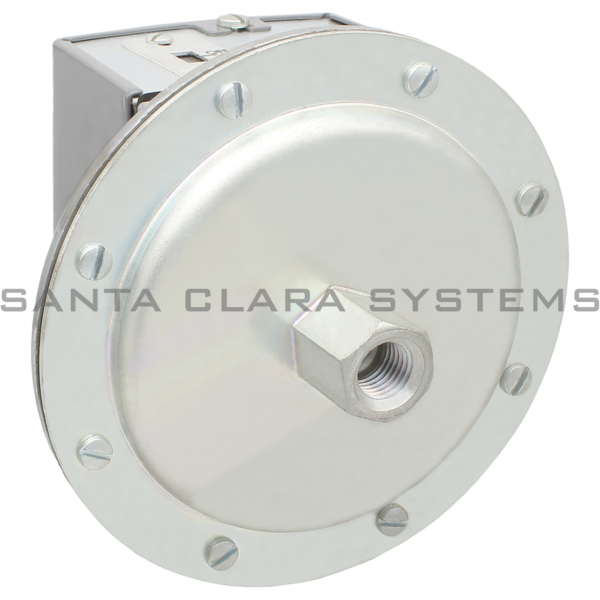

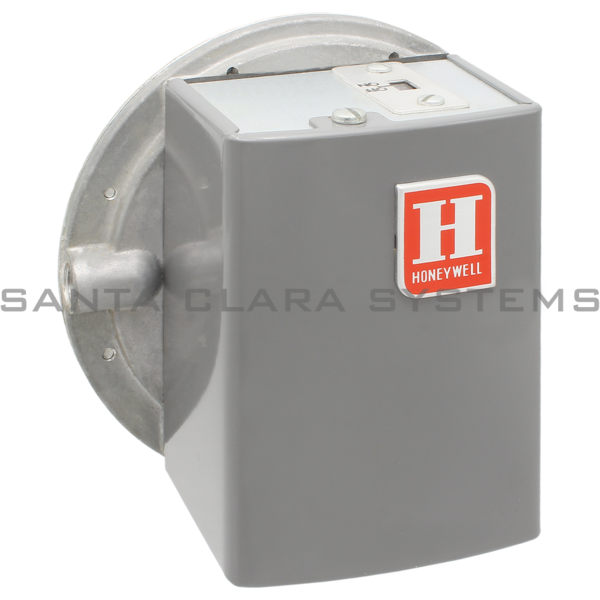

C645A1022

Honeywell - Pressure Switch

Current response time:

12 Minutes 57 Seconds

Description: Pressure Switch
Mounting: 1/4 in. NPT internal thread
Application: Natural Gas, Liquid Propane (LP) or Air Switch
Dimensions (in.): 4 3/4 in. diameter x 3 1/2 in. deep
Includes: Position indicator and cover window
Electrical Ratings: Ignition Transformer: 540 VA, Pilot Valve: 50 VA. Main Valve: 250 VA with 10 times inrush, 400 VA with 2-1/2 times inrush
Electrical Connections: Screw terminals

Contact Ratings: 120 Vac Switch Contact-- 7.4 AFL, 44.4 ALR; 240 Vac Switch Contact-- 3.7 AFL, 22.2 ALR
Operating Temperature Range (F): -20 F to +125 F
Operating Range (psi): 3 to 21 in. wc; 5.0 psi - Maximum Sustained
Differential Pressure Range (psi): 1.0 in. wc Nominal; 3.0 in. wc Maximum
Switch Operation: Auto recycle
Switching Action: SPDT break on pressure fall
Pipe Connection: Main or High Pressure--1/4 in. NPT internal thread; Vent or Low pressure--1/8 in. NPT internal thread
