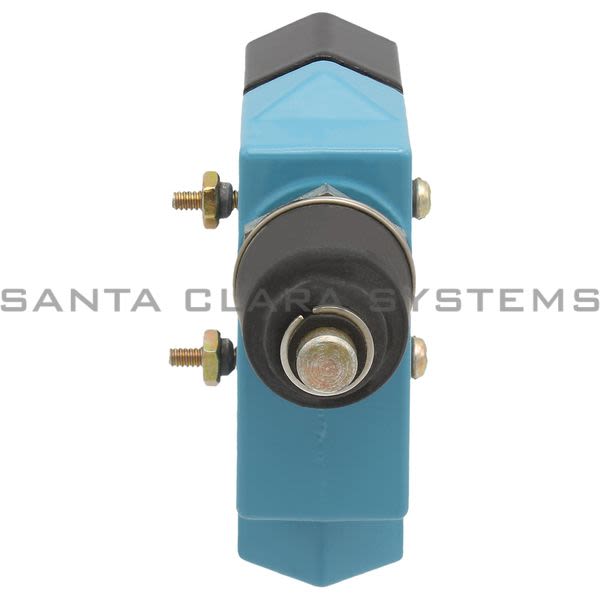

• Honeywell DTE6-2RN Limit Switch | MicroSwitch Product Image

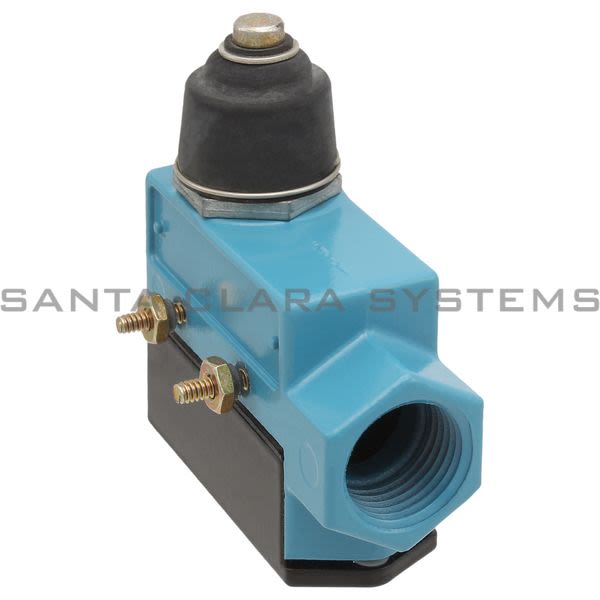

  • Honeywell DTE6-2RN Limit Switch | MicroSwitch Product Image

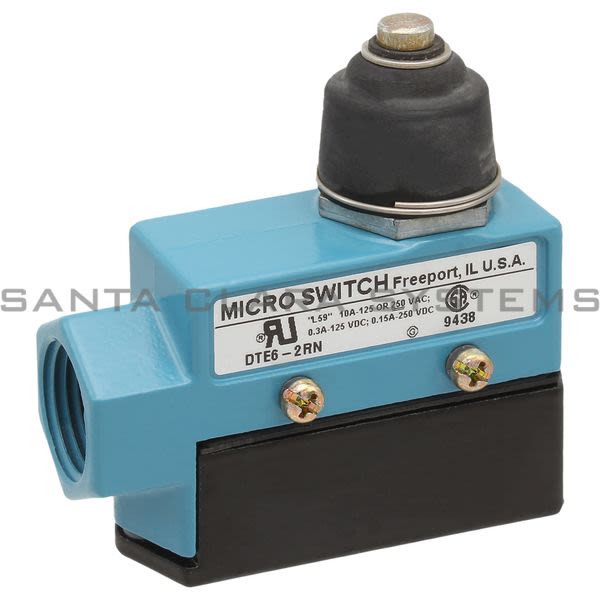

  • Honeywell DTE6-2RN Limit Switch | MicroSwitch Product Image

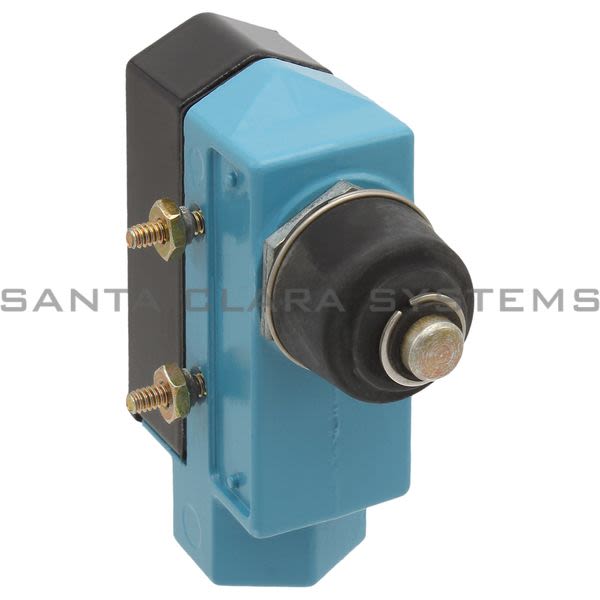

  • Honeywell DTE6-2RN Limit Switch | MicroSwitch Product Image
  • Honeywell DTE6-2RN Barcode

DTE6-2RN

Product Summary:

  • Supply Voltage: 125 Vac, 250 Vac/125 Vdc/250 Vdc
  • Actuator: Top Plunger
  • Operating Temperature: -32 C to 71 C [-25 F to 160 F]
  • Termination Type: 0.5 in - 14NPT Conduit
  • Housing Material: Zinc Die-Cast
Get a Quote

Current response time:

By 5AM PT on Thursday
  • Description: Limit Switch | MicroSwitch
  • Supply Voltage: 125 Vac, 250 Vac/125 Vdc/250 Vdc
  • Actuator: Top Plunger
  • Operating Temperature: -32 C to 71 C [-25 F to 160 F]
  • Termination Type: 0.5 in - 14NPT Conduit
  • Housing Material: Zinc Die-Cast
  • Product Type: Enclosed Switches
  • Availability: Global
  • Release Force: 1,67 N [6 oz] min.
  • Overtravel (OT): 3,18 mm [0.125 in] min.
  • Ampere Rating: 10 A Ind./0.3 A Res./0.15 A Res.
  • Housing Type: Split Housing, Side Mount
  • Comment: With seal boot on plunger
  • Operating Force (OF): 6,95 N to 16,4 N [25 oz to 59 oz]
  • Pretravel (PT): 2,8 mm [0.11 in] max.
  • Differential Travel (DT): 1,52 mm [0.06 in] min.
  • Circuitry: 2NC 2NO DPDT Snap Action
  • Sealing: IP66; NEMA 1, 3, 4
  • Series Name: E6/V6
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on DTE6-2RN . Santa Clara Systems carries 2,080 items from Honeywell.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
