Out of Stock

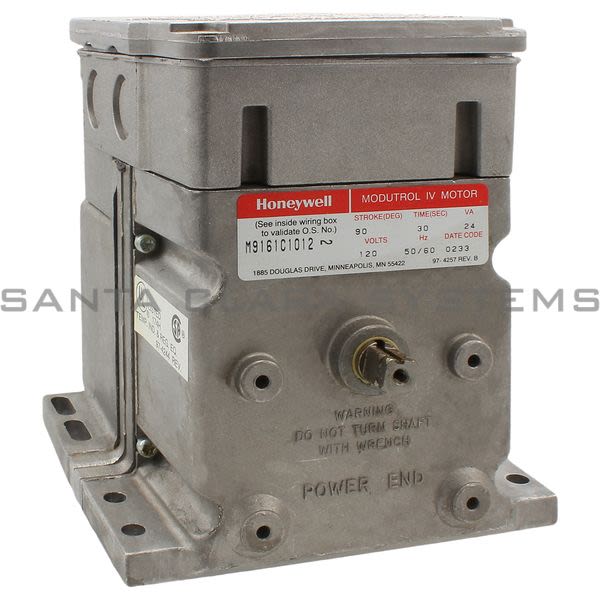

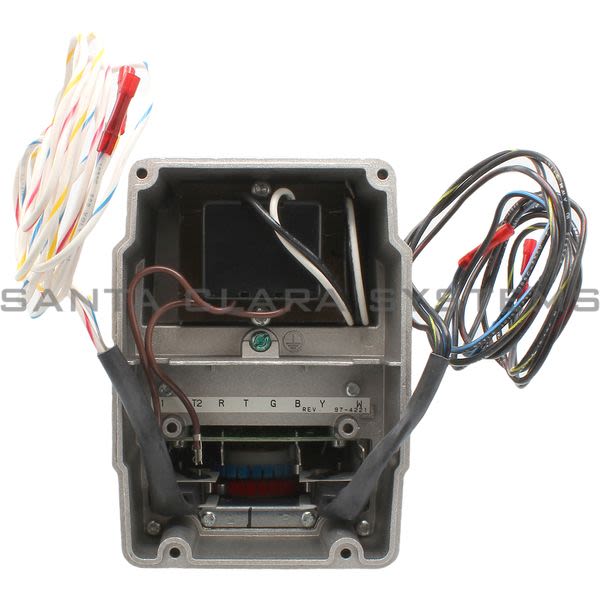

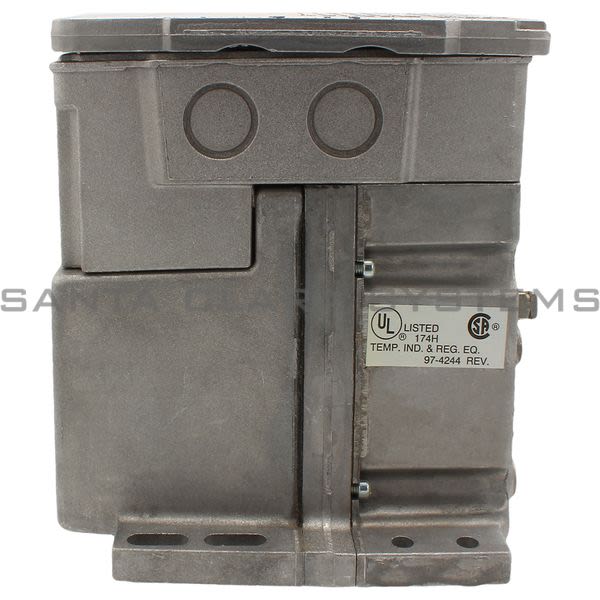

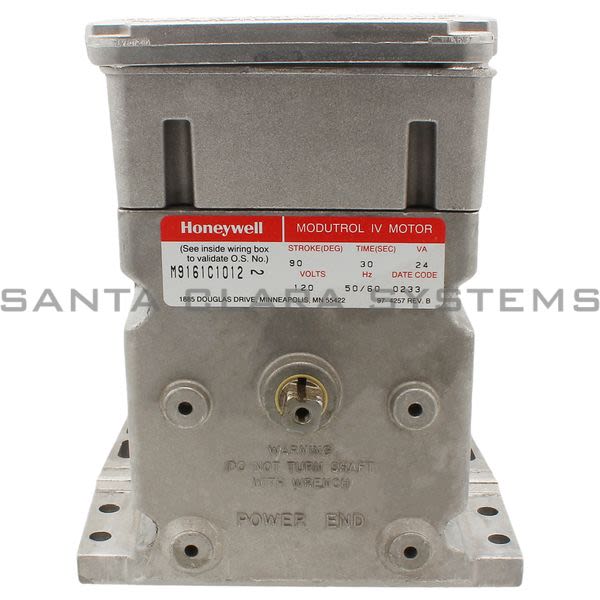

Honeywell M9161C 1012 Modutrol Motor Product Image

M9161C1012

Honeywell - Modutrol Motor

Product Summary:

Supply Voltage: 120V
Mounting: Foot-mounted
Application: Electric
Dimensions (in.): 6 7/16 in. high x 5 1/2 in. wide x 6 3/4 in. deep
Includes: Transformer and junction box

Current response time:

13 Minutes 29 Seconds

Description: Modutrol Motor
Supply Voltage: 120V
Mounting: Foot-mounted
Application: Electric
Dimensions (in.): 6 7/16 in. high x 5 1/2 in. wide x 6 3/4 in. deep
Includes: Transformer and junction box
Weight (lb): 7.44 lb
Frequency: 50 Hz; 60 Hz
Approvals, Underwriters Laboratories Inc.: Listed: File No. E4436, Guide No. XAPX for USA and Canada
Electrical Connections: Quick-connect terminals
Power Consumption: Driving-- 24 VA
Ambient Temperature Range (F): -40 F to +150 F
Internal Auxiliary Switch: 2
Auxiliary Switch Ratings: AFL - 120 Vac-- 7.2A; ALR- 120 Vac-- 43.2A; AFL - 240 Vac-- 3.6A; ALR- 240 Vac-- 21.6A

Stroke: Fixed; 90 degrees
Shaft Dimensions (in.): 0.375 in. Square
Control Signal: Proportional, 135 ohm
Fail Safe Mode: Non-Spring Return
Torque Rating (lb-in.): 60 lb-in.
Torque Rating (Nm): 4 Nm
External Auxiliary Switches Available: No
Shaft Rotation (upon control signal increase): Clockwise (as viewed from power end) (normally closed)
Timing, Nominal: 30 sec
Feedback: No
Shaft Dimensions (mm): 10 mm Square
Motor shafts: Single-ended shaft
Deadweight Load on Shaft: Either End-- 200 lbs.; Combined on both Shafts-- 300 lbs.
