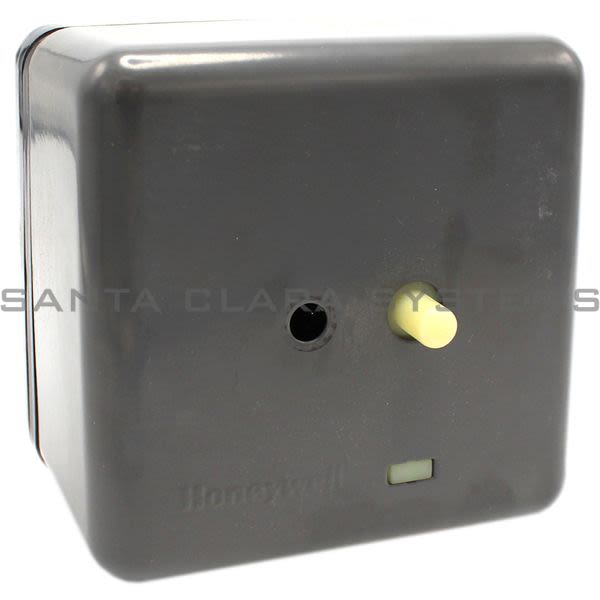

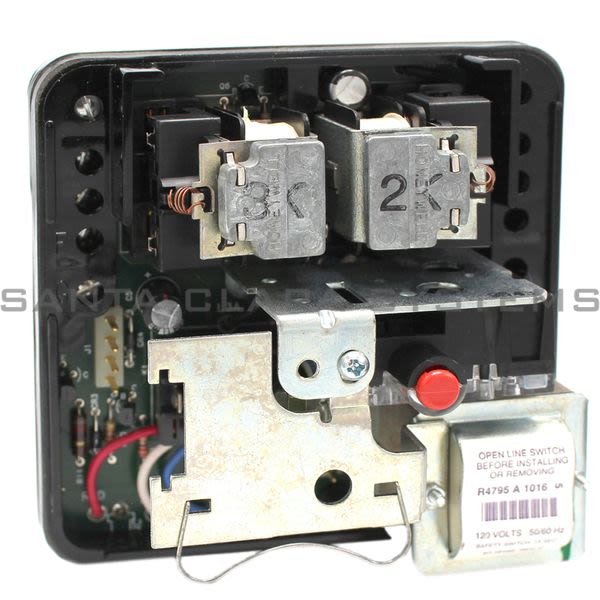

R4795A1016

Honeywell - Burner Control

Product Summary:

Voltage: 120 Vac
Application: Primary Control
Dimensions (in.): 5 in. high x 5 in. wide x 4 3/4 in. deep (including subbase)
Temperature Range (F): -20 F to +105 F @50 Hz,-20 F to +115 F @ 60 Hz
Includes: Female quick-connects

Current response time:

12 Minutes 46 Seconds

Description: Burner Control
Voltage: 120 Vac
Application: Primary Control
Dimensions (in.): 5 in. high x 5 in. wide x 4 3/4 in. deep (including subbase)
Temperature Range (F): -20 F to +105 F @50 Hz,-20 F to +115 F @ 60 Hz
Includes: Female quick-connects
Frequency: 50 Hz; 60 Hz

Approvals, Underwriters Laboratories Inc.: UL Listed:120V with 30, 60, 90 sec prepurge timers, includes -40 F models-File No.MP268, Guide No. MCCZ; UL Comp. Recg.:120V with 7, 10 sec prepurge timers, includes -40 F models-File No.MP268, Guide No.MCCZ2
Electrical Connections: Alarm contacts: male quick connect terminals.
PrePurge: Determined by Plug-in Purge Timer
Required Components: Mounting Base: Q270A1024; Plug-in Amplifier: R7289A1004, R7289A1012, R7290A1001, R7290A1019; Plug-in Purge Timer: ST71A1000 (7 sec), ST71A1018 (30 sec), ST71A1034 (90 sec).
Safety Switch Timing: 15 sec nominal
Alarm Relay Switching: SPDT
