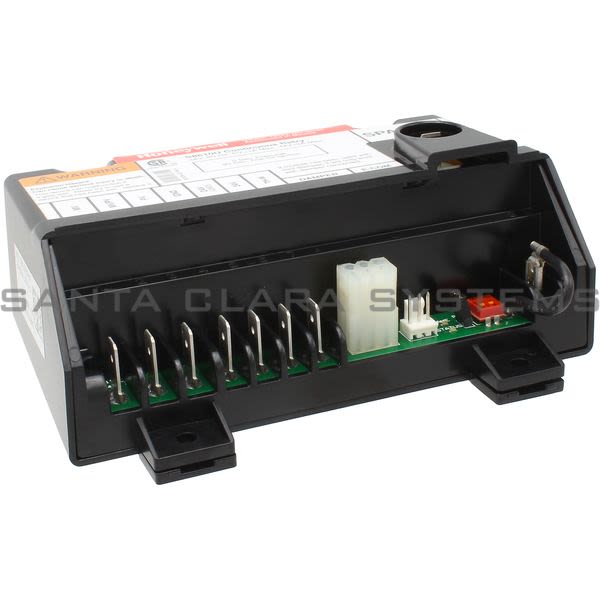

• Honeywell S8610U 3009 Intermittent Pilot Module | MicroSwitch Product Image

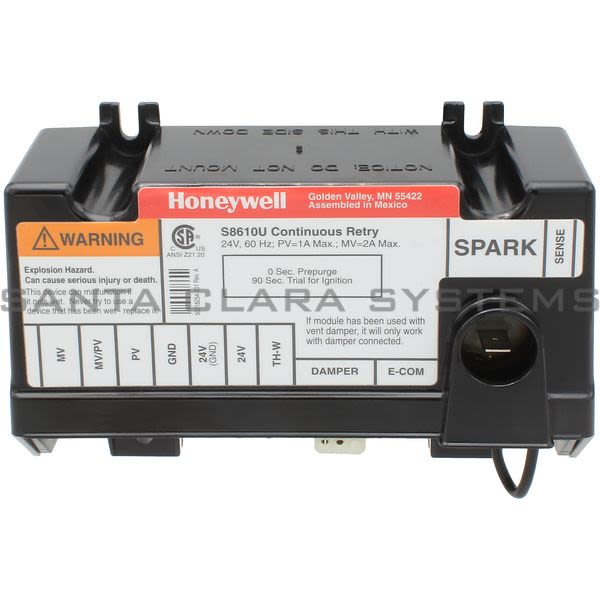

  • Honeywell S8610U 3009 Intermittent Pilot Module | MicroSwitch Product Image

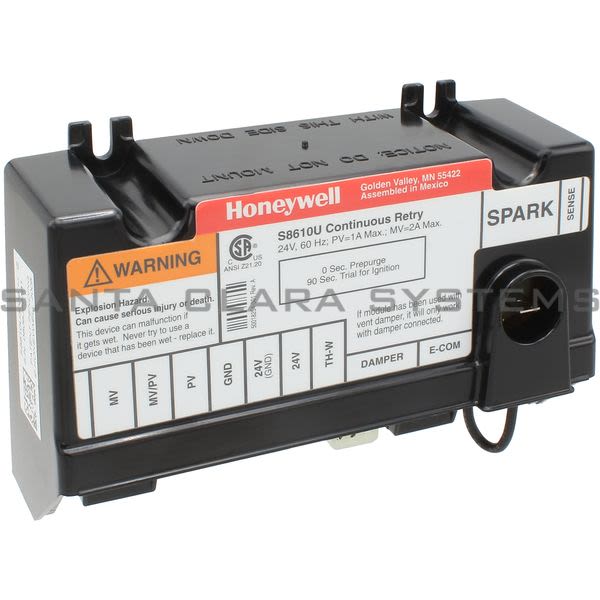

  • Honeywell S8610U 3009 Intermittent Pilot Module | MicroSwitch Product Image

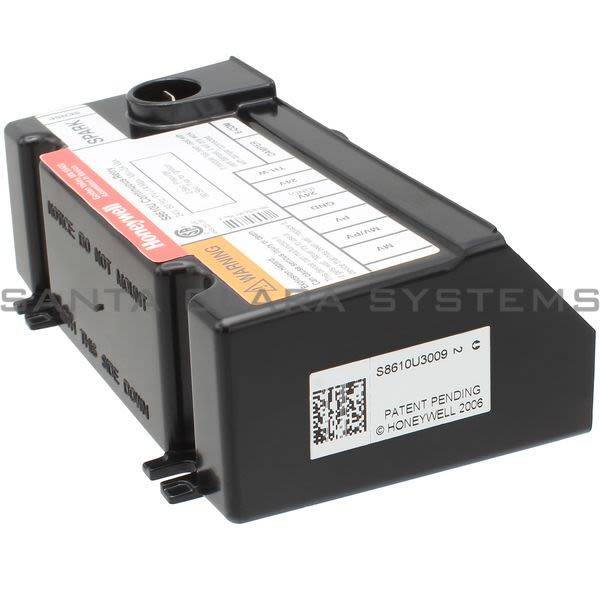

  • Honeywell S8610U 3009 Intermittent Pilot Module | MicroSwitch Product Image
  • Honeywell S8610U 3009 Barcode

S8610U3009

Get a Quote

Current response time:

9 Minutes 54 Seconds
  • Description: Intermittent Pilot Module | MicroSwitch
  • Voltage: 24
  • Electrical Connections: 1/4" Spade Terminals And Molex Plugs
  • Amps AC: 1 Pilot, 2 Main
  • Bracket: Universal
  • Control Volts: 24
  • Country of Origin: Mexico
  • Height (In.): 2.25
  • Width (In.): 4.5
  • Weight (lbs): 0.65
  • Electrical Ratings: 24 VAC
  • Gas Type: Natural or LP
  • Prepurge Time (Sec.): Up to 30
  • Retries: Continuous
  • Lockout Time (Sec.): 15 Or 90
  • Frequency: 50/60 Hz
  • Flame Sense: Single Rod or Two Rods
  • Ignition Sequence: Continuous retry, after trial for ignition, pilot gas shuts off for 5 minutes, then another trial for pilot ignition takes place
  • Ignition Source: Internal high voltage spark generator
  • Ignition System Type: Intermittent Pilot
  • Maximum Valve Load @ 24 Vac (Amps): 1A Pilot, 2A Main @ 165 F; 1A Pilot, 1A Main @ 175 F
  • Typical Gas Control: VR8204, VR8304
  • Typical Ignition Hardware: Q345, Q3451, Q3452
  • Maximum Ambient Temperature: (-40 C to +74 C) -40 F to +165 F
  • Dimensions, Approximate: 3 15/16 in. high x 5 7/16 in. wide x 2 5/8 in. deep (100 mm high x 138 mm wide x 67 mm deep)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on S8610U3009 . Santa Clara Systems carries 2,202 items from Honeywell.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
