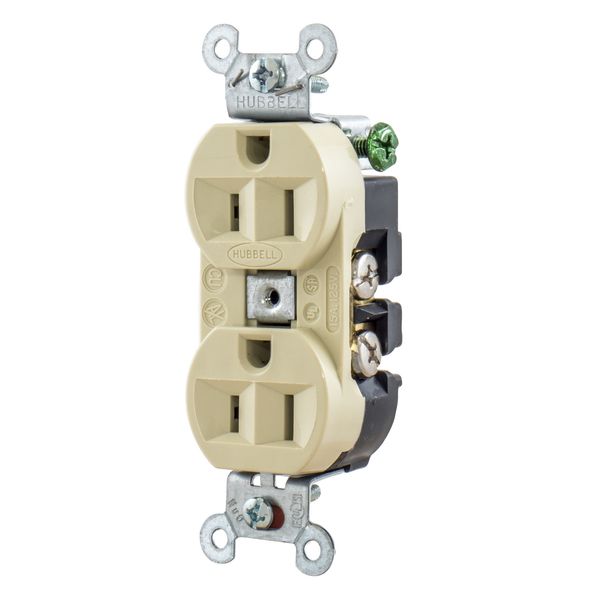

• Hubbell 5262I Control Product Image
  • Hubbell 5262I Barcode

5262I

Let Us Find It

Current response time:

6 Minutes 26 Seconds
  • Description: Control
  • Specifications Description: SelectSpec light industrial, commercial and hospital grade receptacles are ideal for any project where ease of wiring, durability and reliability are required. The impact resistant nylon face is available in a variety of colors to blend into the dcor of office buildings, administrative areas, schools, government facilities and retail spaces.
  • Flammability: UL 94V2
  • Operating Temperatures: Maximum Continuous 60 deg. C, minimum -40 deg. c. (w/o impact).
  • Current Interrupting: Certified for current interrupting at full rated current.
  • Terminal Identification: Terminals identified in accordance with UL 498 (Brass, White, Green).
  • Temperature Rise: Max 30 deg. C temperature rise at full rated current after 50 cycles of overload at 150% of rated direct current.
  • Terminal Accommodation: #14 to #10 AWG Copper Conductors Only.
  • Product Identification: Ratings are a permanent part of the device.
  • Max Working Voltage: 250V AC or DC
  • SELECTSPEC Product Type: Straight Blade Products
  • Straight Blade Product: Duplex Receptacle
  • Straight Blade Product Grade: Light Industrial
  • Straight Blade Product Style: Finder Groove Face, Back and Side Wired
  • Straight Blade Receptacle Rating: 15A, 125V
  • Straight Blade Receptacle Wiring Scheme: 2 Pole, 3 Wire Grounding
  • Straight Blade NEMA Configuration: 5-15R
  • Straight Blade Receptacle Color: Ivory
  • Straight Blade Listings and Approvals: UL Listed Fed Spec, CSA Certified
  • Features: Multiple Drive Screws, Pre-Tensioned Ground Contact, Large Oxide Cutting Terminal Screws, High Grade, Bronze Alloy Triple Wire Power Contacts.
  • Face: High Impact-Resistant Chemical-Resistant Nylon
  • Base: Thick Walled High Impact Resistant Nylon
  • Contacts/Blade Material: Brass Alloy
  • Mounting Yoke: Steel-Zinc Plated
  • Dielectric Voltage: Withstands 2,000V Minimum
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 5262I . Santa Clara Systems carries 10,215 items from Hubbell.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
