FR280BKA

Hubbell - Control

Current response time:

By 5AM PT on Monday

Emergency?

Description: Control

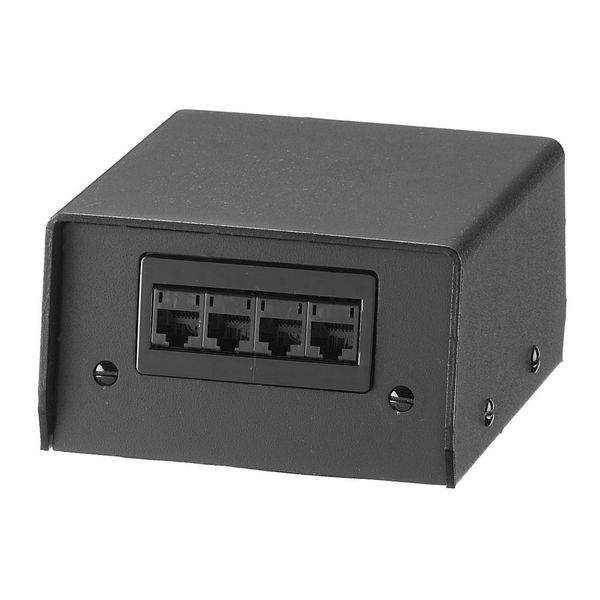

Specifications Description: The standard capacity two-gang pedestal may be ordered as a complete pedestal, or you may choose to create your own pedestal. In the latter option, order the pedestal housing, devices and corresponding face plates separately.
UPC Number: 78358539617
Weight in LBs: 1.65
Series: Painted Aluminum
Aluminum Pedestal Items: 2 Gang Pedestals
Complies with:: UL 514A requirements for scrub water protection.
Fire Rating: For use in 1, 1 1/2, 2, 3 or 4 hour rated unprotected reinforced concrete floors or in 1, 2 or 3 hour rated floors employing steel floor units and concrete topping (D900 series design).

UL Installation Spacing: Minimum of 2 feet on centers and not more than one unit per 65 sq. ft. of floor area in each span.
Pedestal Cubic Inch Capacity- Single Service: 39.00 sq. in. (638.8 cm3)
Pedestal Cubic Inch Capacity- Divided: Power: 19.5 sq. in. (319.4 cm3), Voice/Data: 19.5 sq. in. (319.4 cm3)
Service Pedestal Construction: Heavy gauge galvanized steel frame with aluminum housing and face plates
Service Pedestal Finish: Textured Gray or Black Epoxy Paint.
Pedestal/Face Plate Dimensions: 4.61" (117.0)W x 5.45" (138.4)D x 2.82" (71.6)H
Pedestal Series Listing: UL Listed, CSA Certified
