Out of Stock

GF15GYLA

Hubbell - Control

Current response time:

By 5AM PT on Thursday

Emergency?

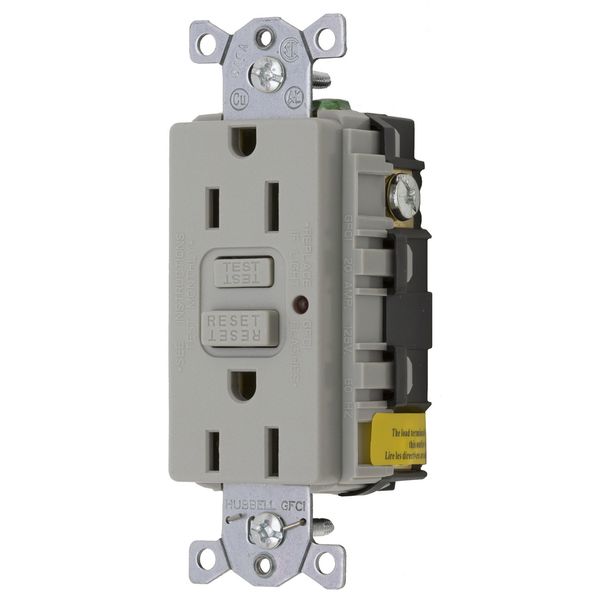

Description: Control
Specifications Description: 15A 125V, 2P 3W, Flush Thermoplastic Face, Back & Side Wired, Matching Wall Plate Included, Gray
UPC Number: 88377837903
Weight in LBs: 0.3
Amperage: 15A
Voltage: 125V AC
Operating Temp: Deg. F -30 to 150 (Deg. C -30 to 66)
Receptacle Version: LED Indicator Series Receptacle
Receptacle Grade: Commercial
Wiring Style: Internal Backwire

Packaging: Single
Trip Level: 4-6 mA
Trip Time: 0.025 seconds
Frequency: 60Hz
Voltage Range: 120V AC +10% -15%
Amperage Range: 15A/20A, 20 Amps Feed Thru
Max Humidity: 0.95
Max Interrupting Capacity: 10,000 Amps
Codes and Standards: Meets UL 943 Class A GFCIs and UL 498 for Receptacles. Complies to NEC, CEC & OSHA. UL File E-41978, CSA File LR-24886
Terminal Accommodations: #14 -10 AWG stranded or solid copper conductors only.

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on GF15GYLA . Santa Clara Systems carries 10,217 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
