Out of Stock

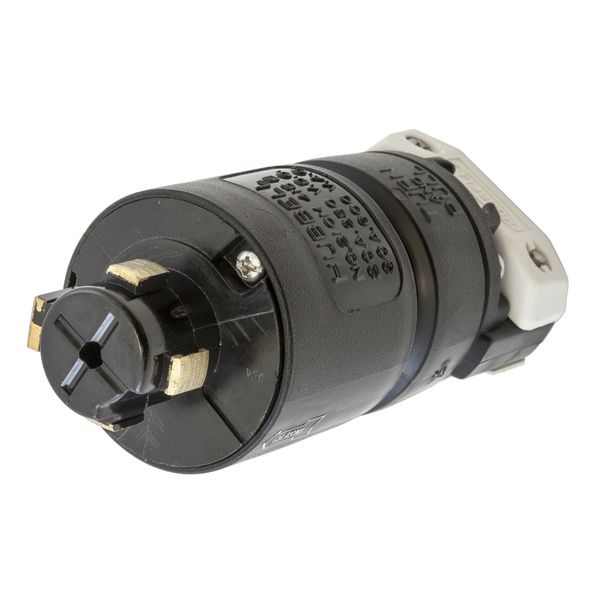

HBL21CM415B

Hubbell - Control

Current response time:

By 5AM PT on Tuesday

Emergency?

Description: Control
Specifications Description: 3P4W, 30A 600V AC Max, Black Nylon Housing, Thermoset Interior
UPC Number: 7.83585E+11
Weight in LBs: 0.9
Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 20A #12AWG; 30A #10AWG
Moisture Resistance: IP30
Terminal Screw Material: Copper lug terminals with steel set screws
Ground Screw Material: Copper lug terminals with steel set screws
Device Color: Yellow
Catalog No: Permanently ink marked on product
Product Item: Plug

Wiring Scheme: 3-Pole, 4-Wire Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Chem/Marine
Housing Material: Black nylon
Multi-Rating: 30A 600V AC, 20A 250V DC
Cord Dia.: .630"-1.20" (16.0-30.5)
Blade Holder Material: Black Thermoset
Cord Clamp Material: Glass Reinforced PET
Blade Material: Brass
Cord Clamp Screw Material: Stainless steel, Multi-drive
Body Holding Screw Material: Stainless steel, Multi-drive
Contact Spring Material: .032" (.8) Bronze
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Listings: UL/CSA

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL21CM415B . Santa Clara Systems carries 10,217 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
