HBL2310SR

Hubbell - Control

Current response time:

By 5AM PT on Monday

Emergency?

Description: Control

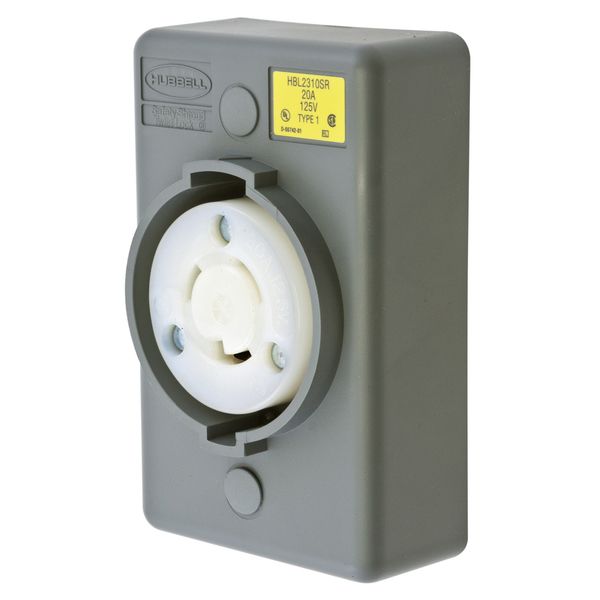

Specifications Description: 20A, 125V Safety-Shroud Twist-Lock receptacle.
UPC Number: 78358523402
Weight in LBs: 0.45
Flammability: V0 per UL94 or CSA 22.2 No. 17
Operating Temperatures: Maximum Continuous: -40 C to 75 C
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White & Green)
Temperature Rise: Max 30 temperature rise at full rated current after 250 cycles of overload at 200% of rated current after 250 cycles of overload at 200% of rated current at a power factor of 75% (WC596)
Terminal Accommodation: #16 AWG - #8 AWG solid or stranded copper wire only.
Moisture Resistance: Type 4, 4X, 12 & IP66 Suitability
Product Identification: Ratings are a permanent part of this device blade holder, and are also labeled on device, color coded by voltage, visible in use. Catalog ID is on device visible in use.
Max Working Voltage: 600V RMS
Enclosure Type: 3R, Rainproof, Suitable for use in damp locations.
Portable Outlet Box: Safety Shroud Watertight Twist-Lock Receptacles
Receptacle Rating: 20A 125V, 2 Pole 3 Wire
Listings and Certifications: UL Listed, CSA Certified, Fed Spec WC596.

Housing and Flange: Gray Valox
Body Contact Carrier: Natural White Nylon
Terminal Retainer: Clear Polycarbonate
Drive Screw: Steel, Zinc Plated
Contact Spring: Brass
Spring Binding Plate: Brass
Terminal Clamp: Steel, nickel-plated .08" curved, scalloped.
Flange/Lid Gasket: Closed Cell Neoprene Foam
Cover Hinge Pin: Stainless Steel 302/304
Cover Spring: Stainless Steel 302/304
Terminal Screws: 10-32 Brass (white finish on neutral screw when used) Multiple Drive Head
Grounding Screw: Brass (green finish) combination head
Mounting Screw: Stainless Steel 302/304 Combination Head
Dielectric Voltage: Withstands 2,000V minimum.
Operation: Indoor and outdoor wet and dry locations
Code Compliance: National Electrical Code , ANSI/NFPA 70
