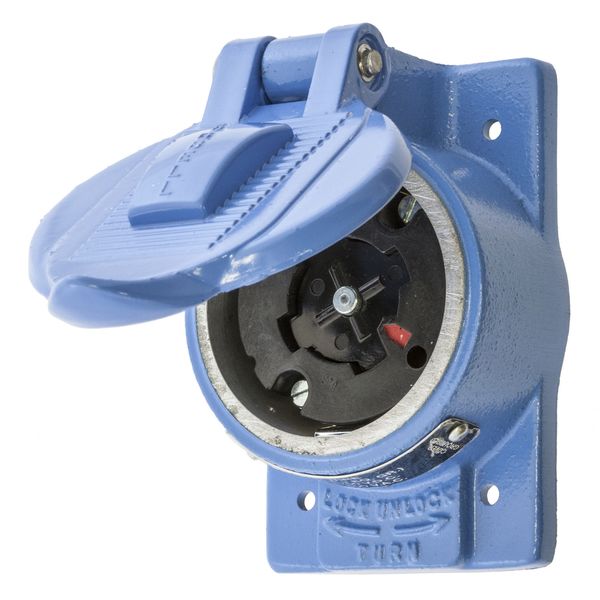

HBL25250

Hubbell - Hubbellock Receptacle

Current response time:

By 5AM PT on Friday

Emergency?

Description: Hubbellock Receptacle
Specifications Description: 4P5W, 30A 600V AC Max, Black Phenolic, Weatherproof FS/FD Cover
UPC Number: 7.83585E+11
Weight in LBs: 1.3
Flammability: UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Product Type: Hubbellock Devices
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 20A #12 AWG; 30A #10 AWG
Moisture Resistance: IP44
Terminal Screw Material: Steel pressure screw- zinc plate
Ground Screw Material: Steel pressure screw- zinc plate

Device Color: Blue
Catalog No: Permanently ink marked on product
Product Item: Single Receptacle
Wiring Scheme: 3-Pole, 4-Wire Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Multi-Rating: 30A 600V AC, 20A 250V DC
Body Contact Carrier Material: Black Polyester
Contact Spring Material: .032" Bronze
Mounting Screw Material: Steel, zinc plated
Cover (Top) Material: Cast Aluminum
Base Material: Cast Aluminum
Ground Contact Material: .032" Bronze
Listings: FED SPEC UL/CSA
