Out of Stock

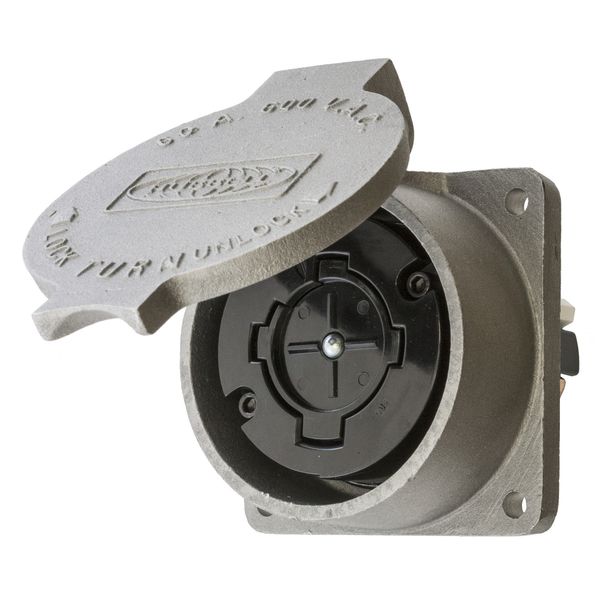

HBL26410

Hubbell - Control

Current response time:

By 5AM PT on Monday

Emergency?

Description: Control
Specifications Description: 3P4W, 60A 600V AC Max, Short Aluminum Housing
UPC Number: 7.83585E+11
Weight in LBs: 1.7
Flammability: UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: #6 AWG
Moisture Resistance: IP44
Terminal Screw Material: Steel pressure screw- zinc plate
Ground Screw Material: Steel pressure screw- zinc plate
Device Color: Metallic

Catalog No: Permanently ink marked on product
Product Item: Single Receptacle
Wiring Scheme: 3-Pole, 4-Wire Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Multi-Rating: 60A 600V AC
Body Contact Carrier Material: Black Polyester
Contact Spring Material: .032" Bronze
Mounting Screw Material: Steel, Nickel plate
Cover (Top) Material: Cast Aluminum
Base Material: Cast Aluminum
Ground Contact Material: .032" Bronze
Listings: UL/CSA

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL26410 . Santa Clara Systems carries 10,217 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
