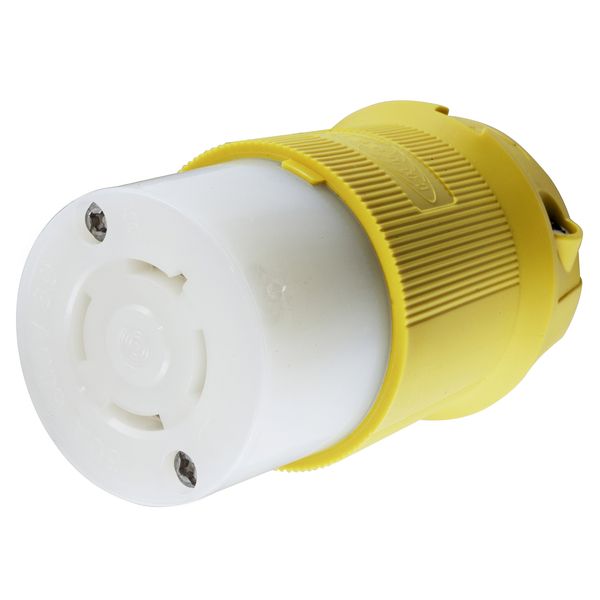

HBL27CM43

Hubbell - Control

Product Summary:

Specifications Description: 3P4W, 30A 3PH 600V, L17-30R, White & Yellow Nylon
UPC Number: 7.83585E+11
Weight in LBs: 0.4
Amperage: 30A
Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6

Current response time:

12 Minutes 5 Seconds

Description: Control
Specifications Description: 3P4W, 30A 3PH 600V, L17-30R, White & Yellow Nylon
UPC Number: 7.83585E+11
Weight in LBs: 0.4
Amperage: 30A
Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 3 Phase 600V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 30A #10 AWG
Moisture Resistance: IP20
Terminal Screw Material: #10-32 Bronze (white finish on neutral screw when used) Multi-drive
Ground Screw Material: #10-32 Bronze (green finish) Multi-drive
Device Color: Yellow
Catalog No: Permanently ink marked on product
Product Item: Connector Body

Wiring Scheme: 3-Pole, 4-Wire Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Chem/Marine
Housing Material: Yellow nylon
NEMA Configuration: L17-30R
Cord Dia.: .35"-1.15" (9-29)
Terminal Retainer Material: Clear polycarbonate
Cord Clamp Material: Yellow nylon
Terminal Clamp Material: .08" (2) steel-nickel plated
Cord Clamp Screw Material: Stainless steel, Multi-drive
Body Holding Screw Material: Stainless steel, Multi-drive
Body Contact Carrier Material: Natural White Nylon
Contact Spring Material: Brass
Spring Binding Plate Material: Brass
Ground Contact Material: .031" (.8) Brass
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Listings: FED SPEC UL/CSA
