HBL420R5W

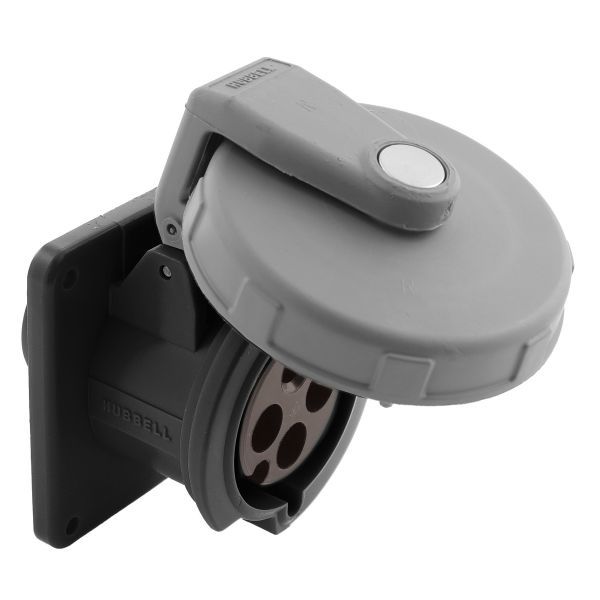

Hubbell - Pin and Sleeve Receptacle Connector

Current response time:

16 Minutes 33 Seconds

Description: Pin and Sleeve Receptacle Connector
Specifications Description: Watertight IEC Pin and Sleeve Receptacle, 3P4W, 20A 3PH 600V
UPC Number: 78358540441
Weight in LBs: 1.05
Amperage: 20A
Flammability: HB or Better per UL 94 or CSA C22.2 No. 0.17
Operating Temperatures: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact.
Voltage: 3 Phase 600V
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with North American and IEC conventions.
Temperature Rise: Max 30 C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.
Poles and Wires: 3 Pole, 4 Wire
Moisture Resistance: Watertight per IEC 60309-1
Mounting Screws: Stainless Steel (300 Series)
Ingress Protection: IP 67 Suitability
Product Identification: Identification and ratings are a permanent part of the device housing.
Impact Resistance: Per CSA C22.2 No. 182.1 / UL1682.
Max Working Voltage: 600V RMS (i.e. minimum creepage distance 10 mm minimum)
Housing: Zytel 101 Nylon
Cover: Rynite SST35
IEC Product Type: Watertight

Service Style: Standard
Device: Receptacle
Terminal Accommodations: #14 To #10 AWG copper wire only
Replacement Interior Number: IN420DF
Mounting Flange: Zytel 101 Nylon
Contact Carrier: High-Impact Thermoset
Retainer: High-Impact Thermoset
Terminal Screws: Stainless Steel (300 series)
Assembly Screws: Stainless Steel (300 series)
Gaskets: Solid Neoprene
Cover Arm: Rynite SST35
Arm Spring: Stainless Steel (17-1 Type)
Cover Screw/Rivet: Nickel Plated Brass
Rotating Sealing Disc: Polycarbonate
Ground/Phase Sleeve: Brass
Pin/Sleeve Spring: Stainless Steel (300 Series)
Certification: UL Listed, File E146032 Receptacles and Inlets, E146033 Plugs and Connectors, UL Standard UL1682 & UL1686C2, CSA Certified File LR280C for Plugs, Connectors and Inlets, LR285C for Receptacles, CSA Standard C22.2 No. 182.1, UL Classified to IEC60309-1, IEC
Dielectric Withstand Voltage: Withstands 3,000V AC Min.
Endurance: 5,000 connect and disconnect cycles with load for 16A and 20A, 1,000 cycles with load and 1,000 cycles w/o load for 30A, 32A, 60A and 63A, and 250 cycles with load and 250 cycles w/o load for 100A and 125A.
Certifications: UL Listed, File E146032 Receptacles and Inlets, E146033 Plugs and Connectors, UL Standard UL1682 & UL 1686C2, CSA Certified File LR280C for Plugs, Connectors and Inlets and LR285C for Receptacle CSA Standard C22.2 No. 182.2, UL Classified to IEC 309-1 and
Device Description: Every Hubbell non-metallic Pin and Sleeve product is designed to meet the International Standard IEC 60309-1 and IEC 60309-2. This device standard calls out singly rated, non-interchangeable configuration for every voltage and type of service.
