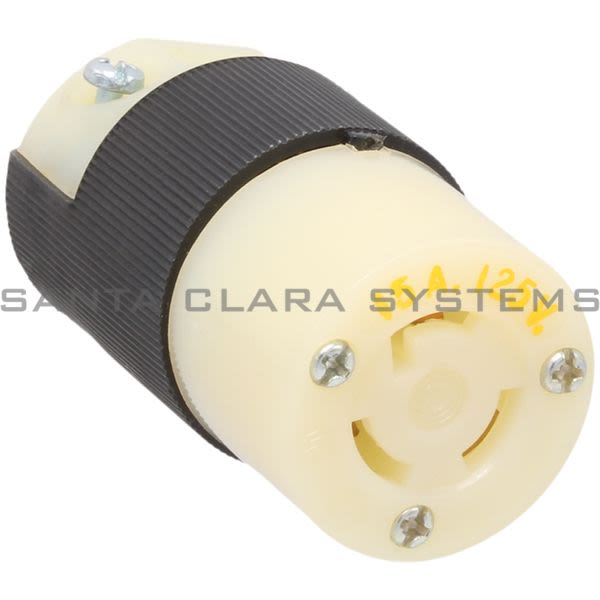

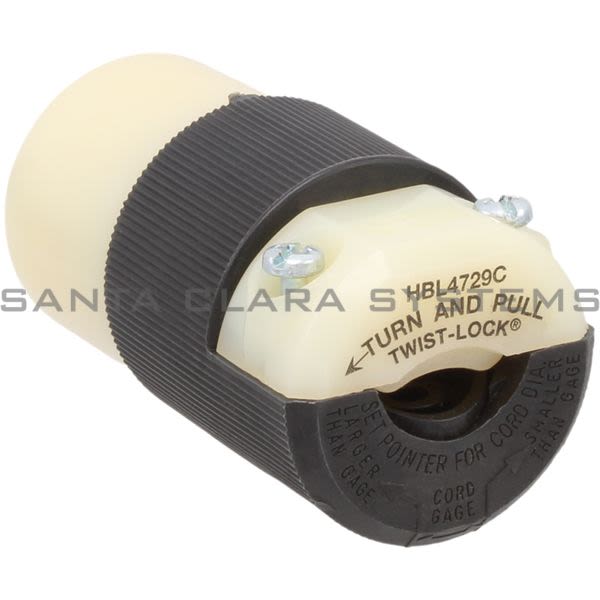

HBL4729C

Hubbell

Current response time:

11 Minutes 45 Seconds

Description:
Specifications Description: 2P3W, 15A 125V, L5-15R, Black & White Nylon
UPC Number: 7.83585E+11
Weight in LBs: 0.15
Amperage: 15A
Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 125V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 15A #14 AWG
Moisture Resistance: IP20
Terminal Screw Material: #8-32 Brass (white finish on neutral screw when used)
Ground Screw Material: #8-32 Brass (green finish)
Device Color: Black/White
Catalog No: Permanently ink marked on product
Product Item: Connector Body
Wiring Scheme: 2-Pole, 3-Wire Grounding

Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Insulgrip
Housing Material: Black nylon
NEMA Configuration: L5-15P
Cord Dia.: .230"-.720" (5.8-18.3)
Terminal Retainer Material: Clear polycarbonate
Cord Clamp Material: Natural (white) nylon
Terminal Clamp Material: Cold rolled steel-nickel-plated
Cord Clamp Screw Material: Steel - zinc plated Multi-drive
Body Holding Screw Material: Steel, zinc plated Multi-drive
Body Contact Carrier Material: Natural White Nylon
Contact Spring Material: Brass
Spring Binding Plate Material: Brass
Ground Contact Material: .032" Bronze
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Listings: UL/CSA
Certified: UL2306 OEM and replacement use on convention center flat cable cord sets.
