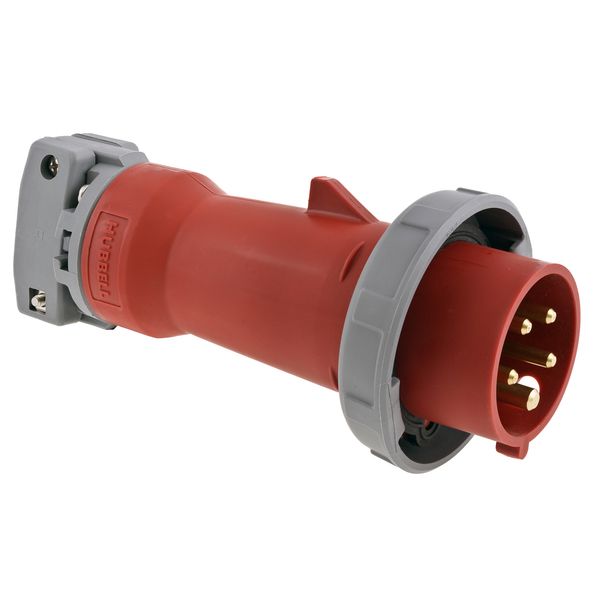

HBL516P6W

Hubbell - Pin and Sleeve Plug

Current response time:

18 Minutes 54 Seconds

Description: Pin and Sleeve Plug
Specifications Description: Watertight IEC Pin and Sleeve Plug, 4P5W, 16A 380-415V
UPC Number: 78358540522
Weight in LBs: 1.3
Amperage: 16A
Flammability: UL94-5VA and V-0 classification.
Operating Temperatures: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact.
Voltage: 220/380, 240/415V
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with North American and International conventions.
Product Type: IEC Devices
Temperature Rise: Max 30 C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.
Poles and Wires: 4 Pole, 5 Wire
Moisture Resistance: Watertight per IEC 60309-1
Ingress Protection: IP67 Suitability
Product Identification: Identification and ratings are a part of the external label and molded into the receptacle mount.
Impact Resistance: In accordance with UL746C
Max Working Voltage: 600V AC RMS
Housing: Zytel 801 Nylon
IEC Product Type: Watertight
Service Style: Standard
Device: Plug
Terminal Accommodations: #14 To #10 AWG copper wire only
Cord clamp range: .330" To .830"

Replacement Interior Number: IN520EM
Hinge Spring: Stainless Steel (300 series)
Lock Ring: Rynite SST35
Contact Carrier: High-Impact Thermoset
Retainer: High-Impact Thermoset
Ground/Phase Pins: Brass
Terminal Screws: Stainless Steel (300 series)
Assembly Screws: Stainless Steel (300 series)
Gaskets: Neoprene
Cord Clamps: Rynite SST35
Grommet/Glands: Solid Neoprene
Gland Cap: Rynite SST35
Cord Clamp Screws: Stainless Steel (300 Series)
Clamp Nut: Nickel Plated Brass
Certification: UL Listed, CSA Certified
Dielectric Withstand Voltage: Withstands 3,000V AC
Short Circuit Withstand: Suitable for use on a circuit capable of delivering not more than 10,000 RMS symmetrical amperes at the voltage rating of the receptacle.
Endurance: Mechanical: 10,000 cycles, Electrical: 6,000 cycles.
Cord Grip Retention: Per CSA C22.2 No. 182.1 / UL1682.
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49 and the harmonized European Standards.
UV Resistance: All materials are UV Stabilized.
Certifications: UL Listed, CSA Certified.
Device Description: Every Hubbell non-metallic Pin and Sleeve product is designed to meet the International Standard IEC 60309-1 and IEC 60309-2. This device standard calls out singly rated, non-interchangeable configuration for every voltage and type of service.
