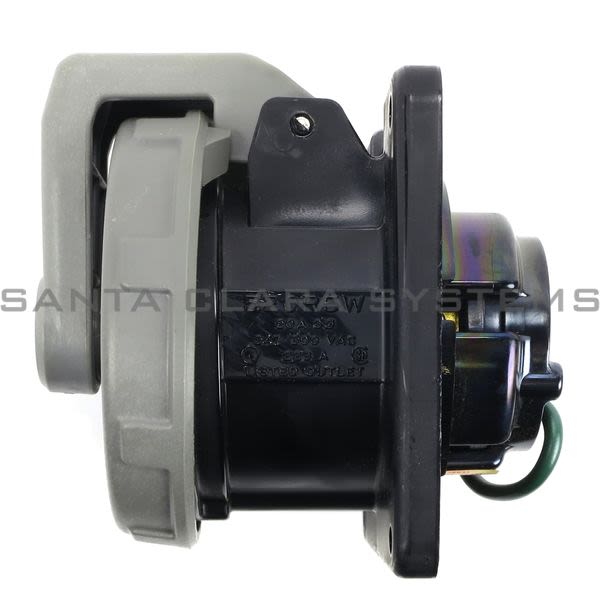

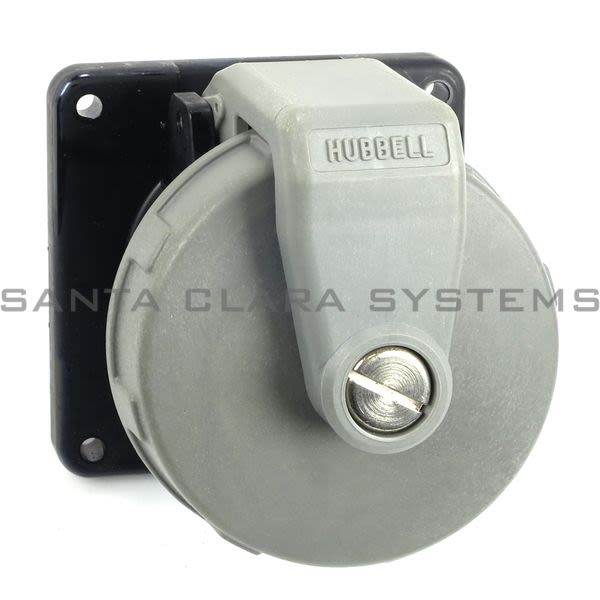

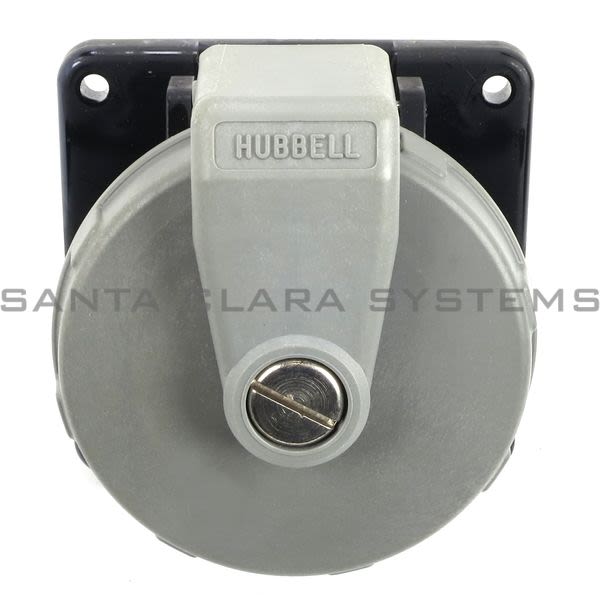

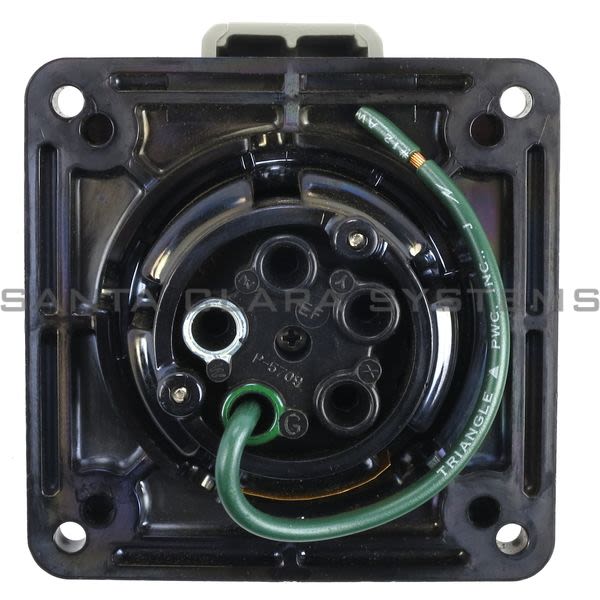

HBL520R5W

Hubbell - Pin and Sleeve Receptacle Connector

Current response time:

8 Minutes 13 Seconds

Description: Pin and Sleeve Receptacle Connector
Specifications Description: Watertight IEC Pin and Sleeve Receptacle, 4P5W, 20A 3PH 347/600V
UPC Number: 78358540536
Weight in LBs: 1.15
Amperage: 20A
Flammability: UL94-5VA and V-0 classification.
Operating Temperatures: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact.
Voltage: 3 Phase Y 347/600V
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with North American and International conventions.
Temperature Rise: Max 30 C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.
Poles and Wires: 4 Pole, 5 Wire
Moisture Resistance: Watertight per IEC 60309-1
Mounting Screws: Stainless Steel (300 Series)
Ingress Protection: IP67 Suitability
Product Identification: Identification and ratings are a part of the external label and molded into the receptacle mount.
Impact Resistance: In accordance with UL746C
Max Working Voltage: 600V AC RMS
Housing: Zytel 101 Nylon
Cover: Rynite SST35
IEC Product Type: Watertight
Service Style: Standard
Device: Receptacle

Terminal Accommodations: #14 To #10 AWG copper wire only
Replacement Interior Number: IN520EF
Hinge Spring: Stainless Steel (300 series)
Mounting Flange: Zytel 101 Nylon
Contact Carrier: High-Impact Thermoset
Retainer: High-Impact Thermoset
Terminal Screws: Stainless Steel (300 series)
Assembly Screws: Stainless Steel (300 series)
Gaskets: Neoprene
Cover Arm: Rynite SST35
Arm Spring: Stainless Steel (17-1 Type)
Cover Screw/Rivet: Nickel Plated Brass
Rotating Sealing Disc: Polycarbonate
Ground/Phase Sleeve: Brass
Pin/Sleeve Spring: Stainless Steel (300 Series)
Certification: UL Listed, CSA Certified
Dielectric Withstand Voltage: Withstands 3,000V AC
Short Circuit Withstand: Suitable for use on a circuit capable of delivering not more than 10,000 RMS symmetrical amperes at the voltage rating of the receptacle.
Endurance: Mechanical: 10,000 cycles, Electrical: 6,000 cycles.
UV Resistance: All materials are UV Stabilized.
Certifications: UL Listed, CSA Certified.
Device Description: Every Hubbell non-metallic Pin and Sleeve product is designed to meet the International Standard IEC 60309-1 and IEC 60309-2. This device standard calls out singly rated, non-interchangeable configuration for every voltage and type of service.
