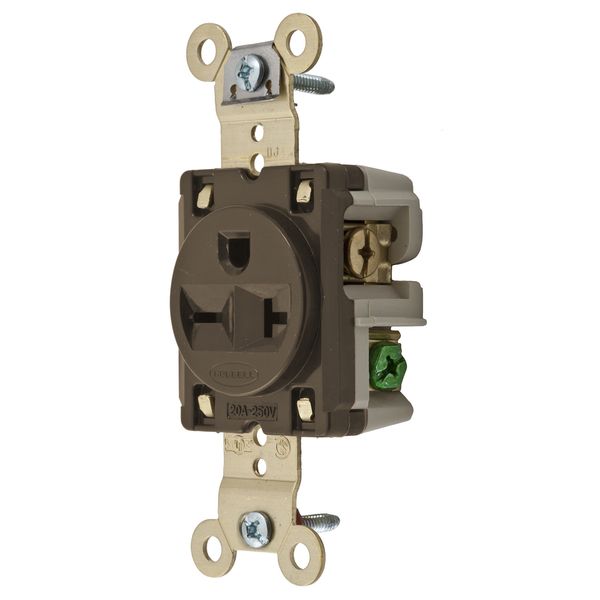

- Description: Single Receptacle
- Specifications Description: 2-Pole 3-Wire Grounding, 20A 250V, 6-20R, Flush Nylon Face, Back & Side Wired, Brown
- UPC Number: 7.83585E+11
- Weight in LBs: 0.15
- Amperage: 20A
- Flammability: Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA.
- Operating Temperatures: Maximum continuous 75C, minimum -40C (w/o impact).
- Voltage: 250V
- Current Interrupting: Certified for current interrupting at full rated current.
- Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
- Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Poles and Wires: 2 Pole, 3-Wire Grounding
- Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only.
- Terminal Screw Material: #8-32 Brass /Ni plated for neutral
- Product Identification: Ratings are a permanent part of the device.
- Ground Screw Material: #8-32 Brass, Multiple Drive (Green)
- Horsepower: 2
- Rating: 20A, 250V
- Type: 2 Pole, 3 Wire, Grounding
- Standard: NEMA
- Receptacle Style: Single
- Face Shape: Traditional
- Wiring Method: Back and Side
- Hospital Grade ?: No
- Receptacle Grade: Heavy Duty Spec Grade
- Face Style: Finder Groove
- Other Available Colors: Brown, Ivory
- NEMA No.: 6-20R
- Certification: UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
- Top Material: Nylon
- Base Material: Reinforced PET
- Power Contacts Material: .037" (.9) Brass
- Mounting Strap Material: .050" (1.3) Brass
- Auto Ground Clip Material: Stainless Steel
- Mounting Screw Material: Steel-Zinc Plated
- Dielectric Voltage: Withstands 2,000V minimum.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL5461 . Santa Clara Systems carries 10,217 items from Hubbell.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
