Out of Stock

HBL5966VBLK

Hubbell - Control

Product Summary:

UPC Number: 7.83585E+11
Weight in LBs: 0.1
Amperage: 15A
Flammability: UL 94 V2.
Operating Temperatures: Maximum continuous 75°C, minimum -40°C (w/o impact).

Current response time:

17 Minutes 15 Seconds

Description: Control

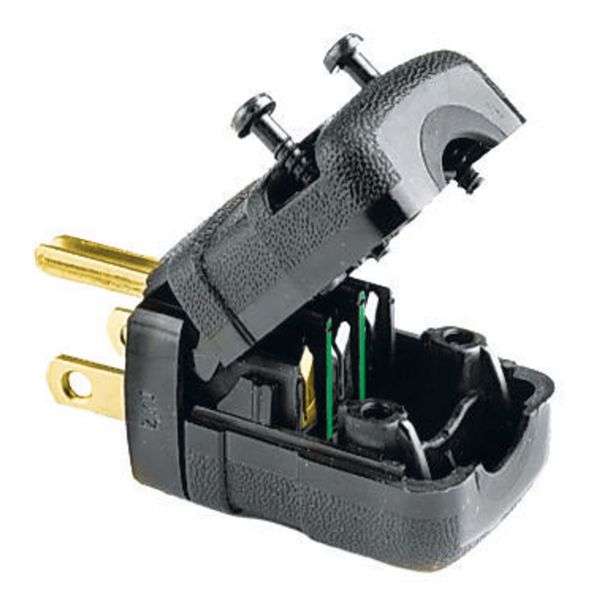

Specifications Description: 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Insulation Displacement Terminals, Black Nylon, Bulk Pack
UPC Number: 7.83585E+11
Weight in LBs: 0.1
Amperage: 15A
Flammability: UL 94 V2.
Operating Temperatures: Maximum continuous 75°C, minimum -40°C (w/o impact).
Voltage: 125V
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
Temperature Rise: Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Poles and Wires: 2 Pole, 3-Wire Grounding
Terminal Accommodation: #18-#16 AWG copper stranded or solid conductor only.
Product Identification: Ratings are a permanent part of the device.
Body Style: Straight
Horsepower: 0.5

Housing Material: Nylon
Rating: 15A,125V
Type: 2 Pole, 3 Wire, Grounding
Standard: NEMA
Hospital Grade ?: No
Plug/Connector Grade: Valise
Enhancement: Insulation Displacement
NEMA No.: 5-15P
Cord Dia.: .230"-.360" (5.8-9.1)
Certification: UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
IP Suitability: IP20
Cord Clamp Material: Nylon
Contact Blades Material: .060" (1.5) Brass
Ground Contact Blade Material: .040" Brass
Dielectric Voltage: Withstands 2,000V minimum.
