Out of Stock

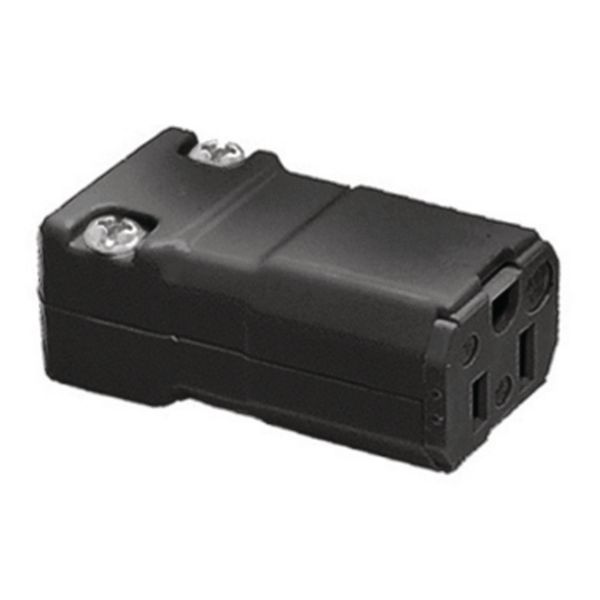

HBL5969VBLK

Hubbell - Control

Product Summary:

Specifications Description: 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Black Nylon
UPC Number: 7.83585E+11
Weight in LBs: 0.15
Amperage: 15A
Flammability: UL 94 HB or better.

Current response time:

17 Minutes 56 Seconds

Description: Control
Specifications Description: 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Black Nylon
UPC Number: 7.83585E+11
Weight in LBs: 0.15
Amperage: 15A
Flammability: UL 94 HB or better.
Operating Temperatures: Maximum continuous 75°C, minimum -40°C (w/o impact).
Voltage: 125V
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
Temperature Rise: Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Poles and Wires: 2 Pole, 3-Wire Grounding
Terminal Accommodation: #18-#10 AWG copper stranded conductor
Terminal Screw Material: #8-32 Steel (copper or nickel finish)
Product Identification: Ratings are a permanent part of the device.
Ground Screw Material: #8-32 Steel, (green finish)

Body Style: Straight
Housing Material: Nylon
Rating: 15A, 125V
Type: 2 Pole, 3 Wire, Grounding
Standard: NEMA
Wiring Method: Back Wire
Hospital Grade ?: No
Plug/Connector Grade: Valise
NEMA No.: 5-15R
Cord Dia.: .220"-.660" (5.6-16.8)
Certification: UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
IP Suitability: IP20
Cord Clamp Material: Noryl
Power Contacts Material: .040" (1.0) Phosphor Bronze
Dielectric Voltage: Withstands 2,000V minimum.

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL5969VBLK . Santa Clara Systems carries 10,258 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
