Out of Stock

HBL6236

Hubbell - Control

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Control

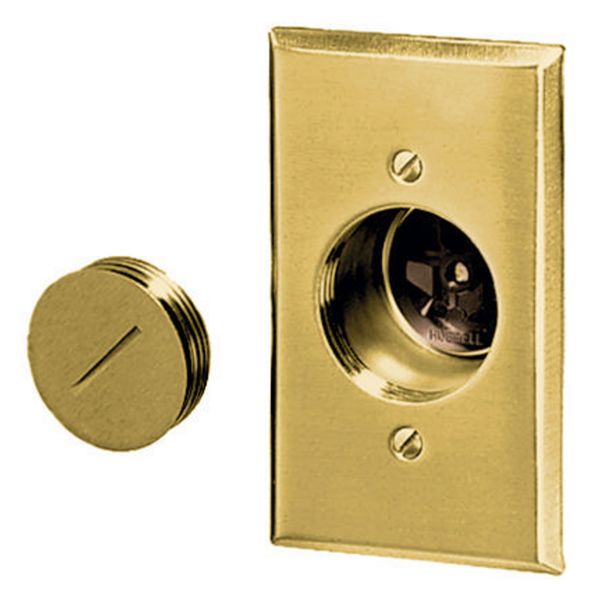

Specifications Description: 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Phenolic, with .060" Brass Plate and Blank Flush Plug and Mounting Box
UPC Number: 7.83586E+11
Weight in LBs: 1.35
Amperage: 15A
Flammability: UL 94 V2.
Operating Temperatures: Maximum continuous 75C, minimum -40C (w/o impact).
Voltage: 125V
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Poles and Wires: 2 Pole, 3-Wire Grounding
Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only.
Terminal Screw Material: #8-32 Brass, Multiple Drive
Product Identification: Ratings are a permanent part of the device.

Ground Screw Material: #8-32 Brass, Multiple Drive (Green)
Horsepower: 1
Rating: 15A, 125V
Type: 2 Pole, 3 Wire, Grounding
Standard: NEMA
Receptacle Style: Single
Face Shape: Traditional
Wiring Method: Side Wire Only
Hospital Grade ?: No
Specialty Type: Display Receptacle With Back Box
NEMA No.: 5-15R
Certification: UL Listed, File E2186, Listed to UL Standard 498
Mounting Screw Material: Stainless Steel
Dielectric Voltage: Withstands 2,000V minimum.

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL6236 . Santa Clara Systems carries 10,217 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
