HBL7379

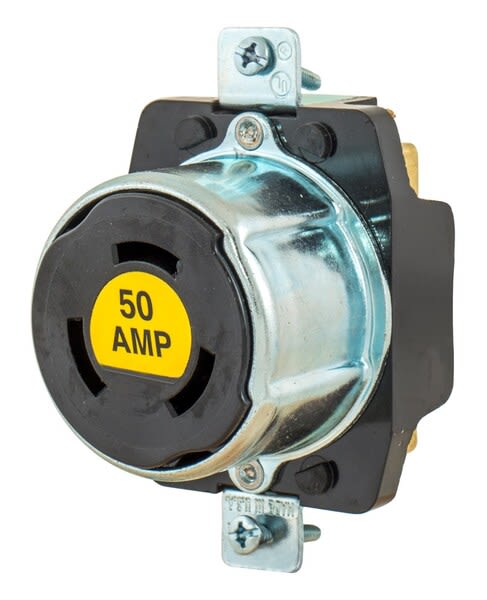

Hubbell - 50A Twist-Lock Receptacle

Current response time:

By 5AM PT on Monday

Emergency?

Description: 50A Twist-Lock Receptacle
Specifications Description: 3P4W, 50A 600V AC Max, Black Melamine
UPC Number: 7.83585E+11
Weight in LBs: 0.75
Amperage: 50A
Flammability: UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 250V DC, 600V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: #10 AWG min #6 AWG max
Terminal Screw Material: Steel pressure screw- zinc plate
Ground Screw Material: Steel pressure screw- zinc plate
Device Color: Black
Catalog No: Permanently ink marked on product
Product Item: Single Receptacle

Wiring Scheme: 3-Pole, 4-Wire Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Standard
Housing Material: Phenolic
50A Version: Non-Keyed Blades
Body Contact Carrier Material: Black Thermoset
Contact Spring Material: .100"/.040" Brass
Mounting Screw Material: Steel-zinc-plated
Ground Contact Material: .031" Brass
Bridge (Mounting Strap) Material: .062" Steel, Zinc Plate
Rivet Material: Brass
Pressure Screw Material: Steel, Zinc Plate
Terminals Material: .050" Steel
Casing Material: .062" Steel, Zinc Plate
Listings: UL/CSA
