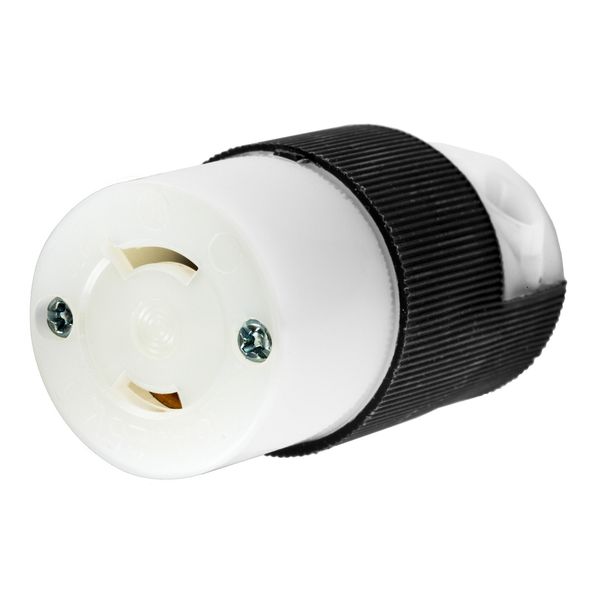

HBL7506C

Hubbell - Control

Current response time:

9 Minutes 16 Seconds

Description: Control
Specifications Description: 2P2W, 15A 125V, L1-15R, Black & White Nylon
UPC Number: 7.83585E+11
Weight in LBs: 0.15
Amperage: 15A
Flammability: UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 125V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 15A #14 AWG
Moisture Resistance: IP20
Terminal Screw Material: #8-32 Brass (white finish on neutral screw when used)
Device Color: Black/White
Catalog No: Permanently ink marked on product
Product Item: Connector Body

Wiring Scheme: 2-Pole, 2-Wire Non-Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Standard
Housing Material: Black nylon
NEMA Configuration: L1-15P
Cord Dia.: .230"-.720" (5.8-18.3)
Terminal Retainer Material: Clear polycarbonate
Cord Clamp Material: Natural (white) nylon
Terminal Clamp Material: .062" cold rolled steel-nickel-plated
Cord Clamp Screw Material: Steel - zinc plated Multi-drive
Body Holding Screw Material: Steel, zinc plated Multi-drive
Body Contact Carrier Material: Natural White Nylon
Contact Spring Material: Brass
Spring Binding Plate Material: Brass
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Listings: UL
