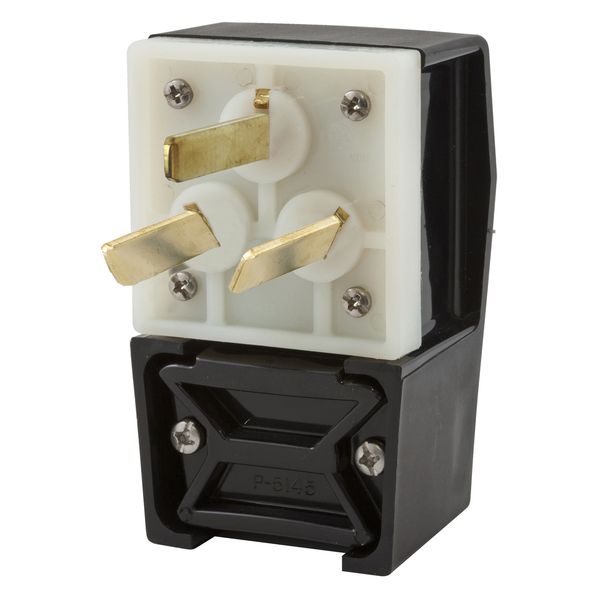

HBL7977

Hubbell - Control

Product Summary:

UPC Number: 7.83585E+11
Weight in LBs: 0.55
Amperage: 50A
Operating Temperatures: Maximum continuous 75°C, minimum -40°C (w/o impact).
Voltage: 125V/250V

Current response time:

17 Minutes 16 Seconds

Description: Control
Specifications Description: 3-Pole 3-Wire Non-Grounding, 50A 125/250V, 10-50P, 4-Way Angle, Black & White Nylon
UPC Number: 7.83585E+11
Weight in LBs: 0.55
Amperage: 50A
Flammability: Receptacle: UL 94 V0. Plug: UL 94 HB (Housing), UL 94 V0 (Blade Holder and Retainer).
Operating Temperatures: Maximum continuous 75°C, minimum -40°C (w/o impact).
Voltage: 125V/250V
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
Temperature Rise: Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Poles and Wires: 3 Pole, 3-Wire Non-Grounding
Terminal Accommodation: #12-#4 AWG copper stranded or solid conductor only.
Terminal Screw Material: 3/8" Allen Head, Plated Steel
Product Identification: Ratings are a permanent part of the device.
Body Style: Angle
Horsepower: 3(2)

Housing Material: Supertough® Nylon
Rating: 30A, 125/250V
Type: 3 Pole, 3 Wire, Non Grounding
Standard: NEMA
Hospital Grade ?: No
Plug/Connector Grade: Insulgrip
NEMA No.: 10-50P
Cord Dia.: .625"-1.187" (15.9-30.2)
Certification: UL Listed, File E2186, Listed to UL Standard 498
IP Suitability: IP20
Blade Holder Material: Reinforced Thermoplastic Polyester
Retainer Material: Reinforced Thermoplastic Polyester
Cord Clamp Material: Reinforced Thermoplastic Polyester
Contact Blades Material: .060" (1.5) Brass
Box Terminals Material: Copper
Dielectric Voltage: Withstands 2,000V minimum.
