HBL8200SGALA

Hubbell - Control

Product Summary:

UPC Number: 7.83585E+11
Weight in LBs: 0.3
Amperage: 15A
Flammability: UL 94 V0 and UL 94-5 VA.
Operating Temperatures: Maximum continuous 75°C, minimum -40°C (w/o impact).

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Control

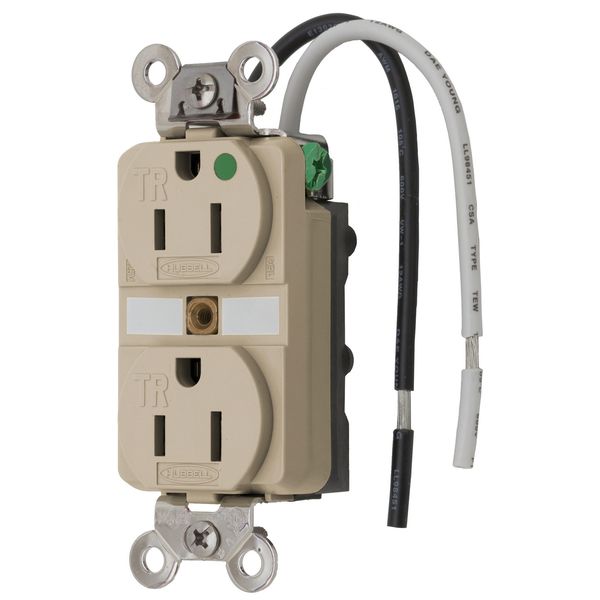

Specifications Description: 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Flush Thermoplastic Face, Wire Leads, Light Almond
UPC Number: 7.83585E+11
Weight in LBs: 0.3
Amperage: 15A
Flammability: UL 94 V0 and UL 94-5 VA.
Operating Temperatures: Maximum continuous 75°C, minimum -40°C (w/o impact).
Voltage: 125V
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
Temperature Rise: Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Poles and Wires: 2 Pole, 3-Wire Grounding
Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only.
Terminal Screw Material: #10-32 Silicon Bronze (Ni plate if neutral)
Product Identification: Ratings are a permanent part of the device.
Ground Screw Material: #10-32 Silicon Bronze (Green)

Horsepower: 0.5
Rating: 15A, 125V
Type: 2 Pole, 3 Wire, Grounding
Standard: NEMA
Receptacle Style: Duplex
Face Shape: Traditional
Wiring Method: Back and Side
Hospital Grade ?: Yes
Receptacle Grade: Hospital Grade
Face Style: Finder Groove
Enhancement: Tamper Resistant
Other Available Colors: Brown, Ivory, Gray, Red, White, Almond
NEMA No.: 5-15R
Certification: UL Listed, File E2186, Guide RTRT Fed Spec WC596G, Hospital Grade Meets NEMA WD-1 Heavy Duty and WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42 where applicable
Dielectric Voltage: Withstands 2,000V minimum.
