Out of Stock

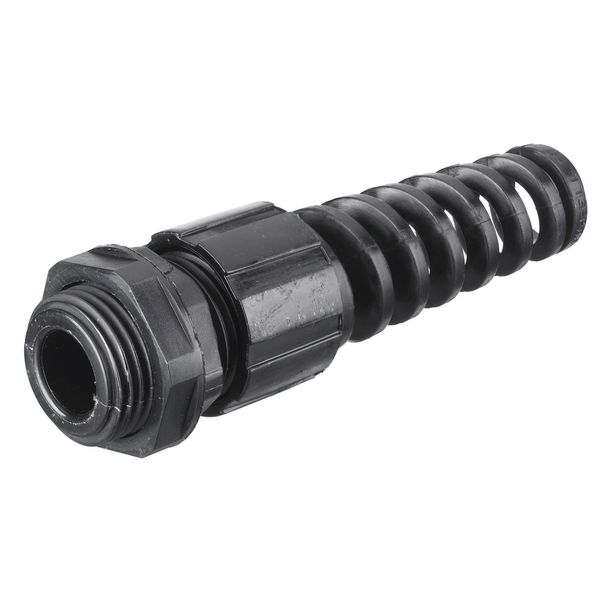

HJ1040BPK25

Hubbell - Control

Current response time:

By 5AM PT on Monday

Emergency?

Description: Control
Specifications Description: Hubbell Juniors are a miniature liquidtight version of the full-sized Hubbell cord connectors. They feature the same GOTCHA® ring technology and neoprene bushings.
UPC Number: 78358502317
Weight in LBs: 1.22
Flammability: Hubbell Juniors have a UL 94-V2 rating.
Product Type: Cord Connectors
Material/Style: Nylon Miniature with Spiral
Cord Diameter Range: .25"- .31" (6.3-7.9)
Cord Connector Body Style: Straight Male
HUB Size: 1/2"
Effective Operating Temperature: -30°F to +225°F (-34°C to +107°C)

Recommended Knockout Hole Size: .82"-.84" (20.9-21.3)
Dimension A: 1.00" (25.4) Dia.
Dimension B: 3.72" (94.5) Ref.
Dimension C: .46" (11.7)
Dimension D: .45" (11.4) Throat Dia.
Dimension E: .45" (11.4)
Dimension F A/C: .99" (25.1)
Dimension F A/F: .92" (23.4)
Certifications: UL Listed, CSA Certified
Packaging: Bulk 25

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HJ1040BPK25 . Santa Clara Systems carries 10,227 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
