HMHB2LV

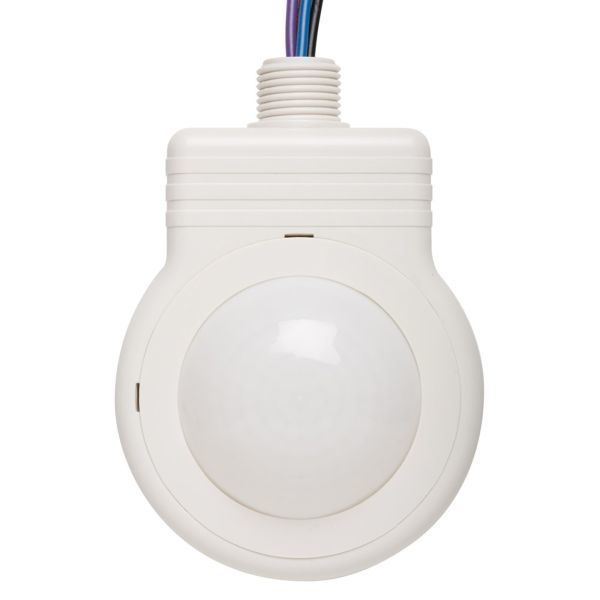

Hubbell - Fluorescent High Bay Sensor | H-MOSS

Product Summary:

Color: White
Operating Temperature: 32°F - 149°F (0°C - 65°C)
Type: High Bay Lighting Controls
Environmental Conditions: Indoor Dry unless protected by additional means
Supply Voltage: 24V DC

Current response time:

12 Minutes 26 Seconds

Description: Fluorescent High Bay Sensor | H-MOSS
Color: White
Operating Temperature: 32°F - 149°F (0°C - 65°C)
Type: High Bay Lighting Controls
Mounting: Mounts directly to the end of a fixture through an extended ½ inch chase nipple For deeper body fixtures, an optional Extender Adapter (available separately) positions the sensor flush or below the bottom of the reflector for a full field of view.
Environmental Conditions: Indoor Dry unless protected by additional means
Supply Voltage: 24V DC
Application: Warehouses, Distribution Centers, Gyms, Retail and Manufacturing
Catalog Description: Switches and Lighting Controls, Occupancy Sensors, High Bay, 24V DC,1.4
Connector: Wire Leads
Control Output: Input Voltage
Indicator: PIR= Red LED
Load: Load is a function of the control unit

Operating Cycles: 6,000 Cycles Minimum
Sensitivity: Adjustable
Sensor: Digital PIR Sensor
Target Size: People
Sub Brand: H-MOSS
Certifications: ETL, Conforms to UL STD 916, Certified to CAN/USA STD 22.2 No. 61010-1-04 and Title 24 Certified
Special Features: Standard Product
Coverage: 360° (includes masking kit for aisle and end-of-aisle applications) Lens: Below 30 ft.: 1.4 - 42 ft. radius; mounted @ 30 ft.; Up to 45 ft.: 1.1 - 49.5 ft. radius; mounted @ 45 ft.
Construction: Casing?high-impact injection-molded thermoplastic
Size and weight: Size: 4.4 inch x 3.6 inch x 2.0 inch; Weight: 7 oz.
User Interface: 2 four-pin dip switches
Timer time-outs: Primary: 8-second test mode 4, 8, 16 and 30 minute time-outs Secondary: - Can be disabled 30, 60 and 90 minute time-outs
Passive infrared: Dual element pyrometer and spherical Fresnel lens
