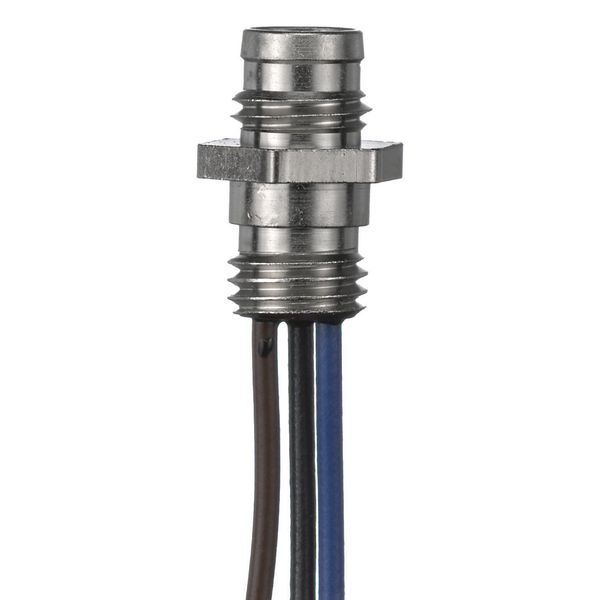

NBCS3D

Hubbell - Control

Current response time:

By 5AM PT on Monday

Emergency?

Description: Control
Specifications Description: As time goes by, electronics get smaller and smaller. Industry demands for smaller photo eyes and 8mm proximity switches have led to the demand for the connectors that mate with them; the Hubbell Nano-Quick connector meets that demand.
UPC Number: 78358595624
Weight in LBs: 0.05
Amperage: 3&4P=4A
Ingress Protection: IP67
Operating Temperature: PVC Cable: -20 C to 105 C, TPE Cable: -40 C to 105 C
Product Description: As time goes by, electronics get smaller and smaller. Industry demands for smaller photo eyes and 8mm proximity switches have led to the demand for connectors that mate with them; the Hubbell Nano-Quick connector meets that demand.
Voltage Rating: 125V AC/75V DC
Cable: #24 AWG - PVC jacket (black), PVC Conductor Insulation, Copper Braid - 85% Coverage, Stranding 19/36, #18 AWG - TPE jacket (black), PVC Conductor Insulation, Stranding - 19/36.
Vibration Resistance: 10-2,000 Hz@15g per MIL-STD-1344, Method 2005
Poles: 3
Length: 2M
Signal-Quick Product Type: Male Receptacle

Nano-Quick Retention Style: Snap Together
Insulator Materials: Nylon 6/6, White
Contact Materials: Pins: Brass, Sockets: Beryllium Copper
Contact Plating: Hard Gold over Palladium/Nickel
Overmold Material: Polyurethane, Black
Coupling Nut, Metallic: Nickel Plated Brass
Receptacle Shell: Nickel Plated Brass
Strain Relief: 20 pounds min per UL 2238
Contact Resistance: 5 MW
Isolation Resistance: 1000 MW
Moisture Protection: UL Type 4, 4X, 12 and 13
Corrosion Resistance: 500 hours salt spray per MIL-STD-1344, METHOD 1001
Certifications: UL 2238 and UL50, File No. E192071. CSA Certified, C22.2 No. 182.3 and CSA C22.2 No. 94
Features/Benefits: Gated strain relief with graduated window sizes. Strong, flexible design distributes force away from contact terminations. Superior arc of bend control. Nickel plated
