PT2FIT

Hubbell - Control

Product Summary:

UPC Number: 78358549815
Weight in LBs: 3.65
Furniture Feed Services: Large Capacity Furniture Feed
Flush Furniture Feed Offering: Through Floor Fitting
Complies with:: UL 514A requirements for scrub water protection.

Current response time:

7 Minutes 50 Seconds

Description: Control

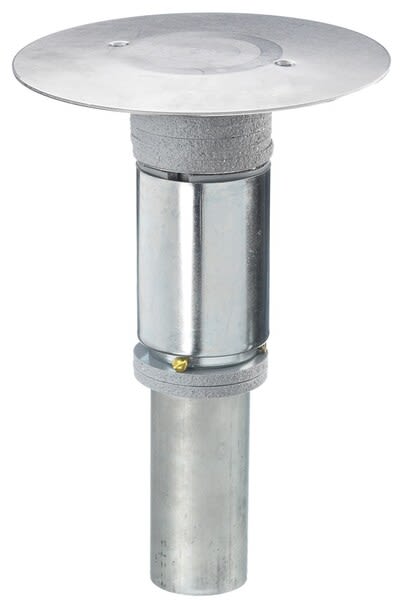

Specifications Description: Hubbell Introduces a new fire-rated poke-through fitting that accommodates various communication cable capacity levels. The new single service fire-rated poke-through incorporates a two inch conduit that is designed to support up to 36 low voltage cables in one location. These two inch single service units are UL listed for floors with a 1-2 hour fire rating.
UPC Number: 78358549815
Weight in LBs: 3.65
Furniture Feed Services: Large Capacity Furniture Feed
Flush Furniture Feed Offering: Through Floor Fitting
Complies with:: UL 514A requirements for scrub water protection.
Fire Rating: For use in 1, 1 1/2, 2, 3 or 4 hour rated unprotected reinforced concrete floors or in 1, 2 or 3 hour rated floors employing steel floor units and concrete topping (D900 series design).

Floor Thickness Range: 2 1/4" (over metal deck) to 7" (57.2 to 117.8)
UL Installation Spacing: Minimum of 2 feet on centers and not more than one unit per 65 sq. ft. of floor area in each span.
Cored Hole: 3" (76.2) diameter
Conduit Tubes: 2" EMT
Listings: UL Listed, CSA Certified
Wiring Capacity: Voice/Data Only: Up to 36 low voltage cables at .21" (5.3) diameter.
Plenum Rating: Acceptable for use in environment air handling spaces per NEC article 300.22(C).

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PT2FIT . Santa Clara Systems carries 10,258 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
