PT7FSD

Hubbell - Control

Product Summary:

UPC Number: 78358549418
Weight in LBs: 2.7
Housing: Engineered flame-retardant thermoplastic UL rated 94V-0
Flush Duplex Offering: Through Floor Fitting with Junction
Complies with:: UL 514A requirements for scrub water protection.

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Control

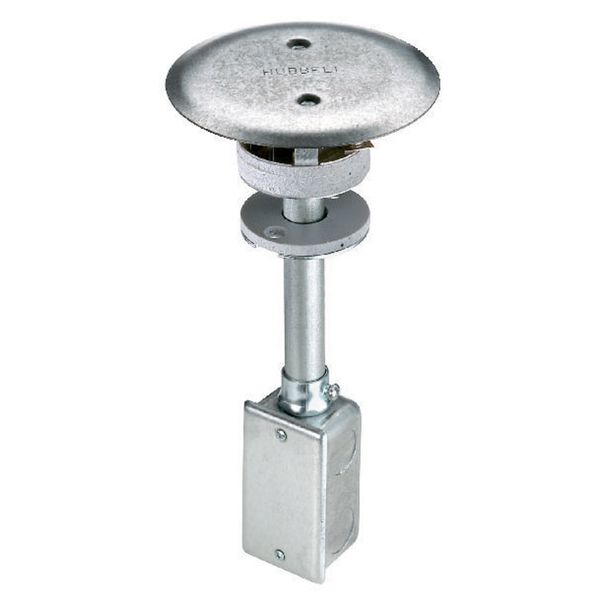

Specifications Description: Three-service poke-through fittings install in a 3 inch (76.2) diameter core drilled hole and will accommodate a floor thickness range of 2 ¼ - 7 inches (57.2 - 177.8). Includes a ¾" EMT tube for power wiring.
UPC Number: 78358549418
Weight in LBs: 2.7
Housing: Engineered flame-retardant thermoplastic UL rated 94V-0
Flush Duplex Offering: Through Floor Fitting with Junction
Complies with:: UL 514A requirements for scrub water protection.
Fire Rating: For use in 1, 1 1/2, 2, 3 or 4 hour rated unprotected reinforced concrete floors or in 1, 2 or 3 hour rated floors employing steel floor units and concrete topping (D900 series design).

Floor Thickness Range: 2 1/4" (over metal deck) to 7" (57.2 to 117.8)
UL Installation Spacing: Minimum of 2 feet on centers and not more than one unit per 65 sq. ft. of floor area in each span.
Cored Hole: 3" (76.2) diameter
Receptacles: Hubbell #HBL5352, NEMA 5-20R; 20A, 125V AC
Jack(s): Low Voltage Knockout Only.
Device and Cover Flap Material: Thermoplastic
Conduit Tubes: Power - 3/4" EMT/Low Voltage - 1/2" EMT (two)
Listings: UL Listed, CSA Certified
