UVPP

Hubbell - Universal Power Pack

Current response time:

16 Minutes 22 Seconds

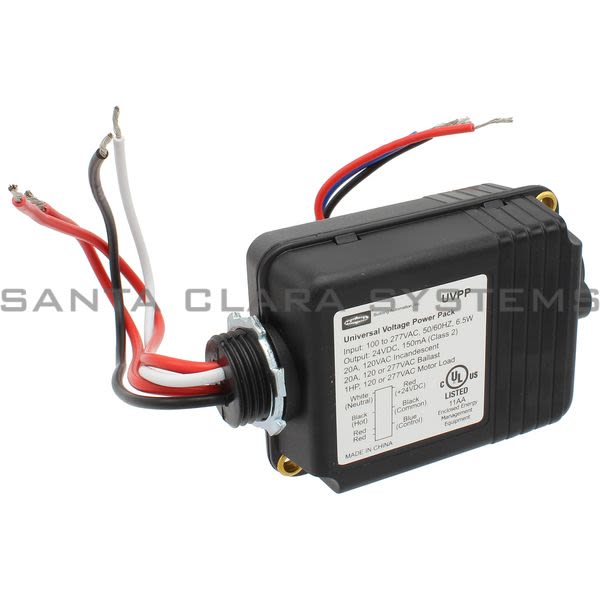

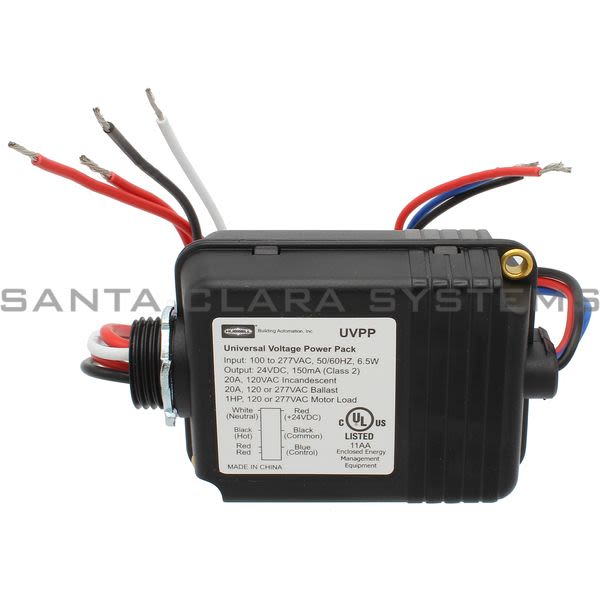

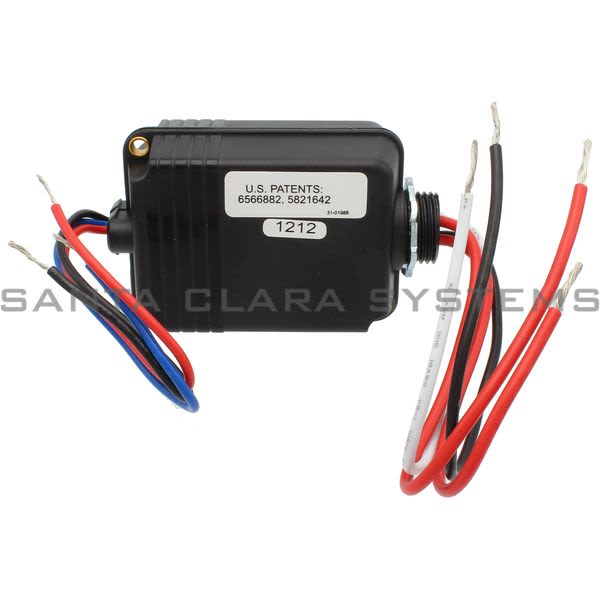

Description: Universal Power Pack
Color: Black
Weight: 15 oz. [425.24 g]
Power Input: 100-277 VAC; 50/60Hz
Power Output: 24VDC, 150mA (Class 2)

Relay Contact Ratings: 20A: 120VAC Incandescent; 20A: 120 or 277VAC Ballast; 1HP: 120 or 277VAC Motor Load
Plenum rated: Complies with requirements for use in a plenum area. Plenum rated for external junction box mounting
Operating environment: Indoor use only. Operating temperature: 32 to 104F (0 to 40C). Relative humidity (non-condensing): 0% to 95%
Dimensions: 3.69" [93.73mm] x 2.33" [59.18mm] x 1.36" [34.54mm]
Certifications: UL and cUL listed

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on UVPP . Santa Clara Systems carries 10,217 items from Hubbell.

The Universal Voltage Power Pack (Uvpp) Is A Self-Contained Transformer And Relay Designed For Low-Voltage 24vdc Occupancy Sensors. The Power Pack Supports And Automatically Detects The Line-Voltage Input Within The 100?277vac Range. This Eliminates The Need For Voltage-Specific Power Packs. The Universal Voltage Power Pack With Manual On/off Control (Uvppm) Provides A Unique Solution For Lighting Applications Where Users Require Both Manual On/off Control As Well As Automatic Off Control. Both Power Packs Are Capable Of Switching 20a Loads And Feature Zero Arc Point Switching

The Universal Voltage Power Pack (Uvpp) Is A Self-Contained Transformer And Relay Designed For Low-Voltage 24vdc Occupancy Sensors. The Power Pack Supports And Automatically Detects The Line-Voltage Input Within The 100?277vac Range. This Eliminates The Need For Voltage-Specific Power Packs. The Universal Voltage Power Pack With Manual On/off Control (Uvppm) Provides A Unique Solution For Lighting Applications Where Users Require Both Manual On/off Control As Well As Automatic Off Control. Both Power Packs Are Capable Of Switching 20a Loads And Feature Zero Arc Point Switching
Minimizing Relay-Contact Wear From High Inrush Loads. A Single Power Pack Can Power Either 4 Sensors Or 3 Sensors And The Mpsa Auxiliary Relay For Multiple Circuits. The Power Packs Are Plenum Rated And Easily Mount Inside Or Outside Of A Junction Box Or Inside A Fixture.
