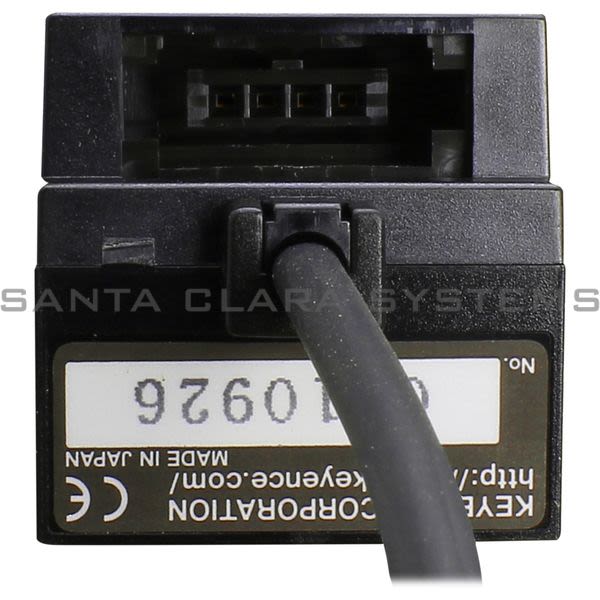

• Keyence AP-40P Pressure Sensor Product Image
  • Keyence AP-40P Pressure Sensor Product Image
  • Keyence AP-40P Pressure Sensor Product Image
  • Keyence AP-40P Pressure Sensor Product Image
  • Keyence AP-40P Barcode

AP-40P

Product Summary:

  • Output: PNP output
  • Applicable sensor head: AP-41, AP-43, AP-44
  • Detectable pressure range: -15% to +110% of F.S.
  • Response time (chattering prevention function): 2.5/5/100/500 ms
  • Analog voltage output: 1 to 5 V
Get a Quote

Current response time:

By 5AM PT on Thursday
  • Description: Pressure Sensor
  • Current consumption: 105 mA (12 V), 55 mA (24 V) (including sensor head)
  • Power supply: 12 to 24 VDC 10%, Ripple (p-p): 10% max.
  • Environmental resistance - Ambient temperature: 0 to 50C (32 to 122F), No condensation
  • Environmental resistance - Ambient humidity: 35 to 85%, No condensation
  • Environmental resistance - Shock resistance: 100 m/s2 in X, Y, and Z directions, 3 times respectively
  • Environmental resistance - Vibration resistance: 10 to 55 Hz, 1.5 mm 0.06" double amplitude in X, Y, and Z directions, 2 hours respectively
  • Material: Front housing: Polyamide, Front panel sheet: PET, Rear housing: Polysulfone, Cable: Oil-proof cabtyre cable

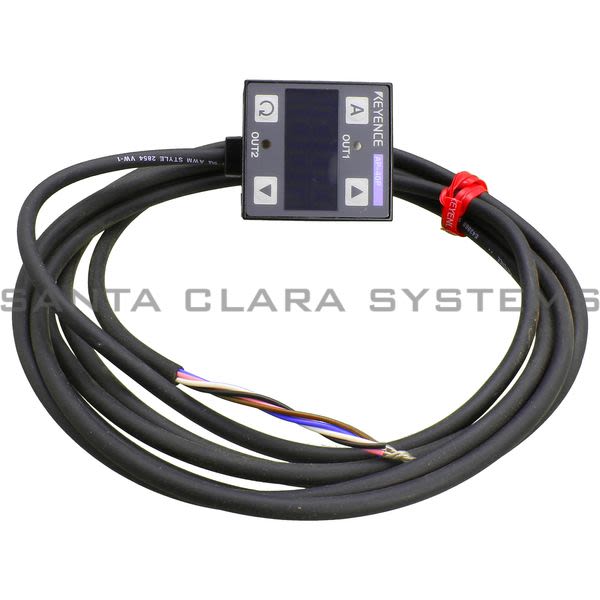

  • Weight: 80 g (including 2 m 6.6' cable) (28 g without cable)
  • Footnotes: *1 Two types of panel mounting brackets are available: OP-31357 (black) and OP-32908 (gray).
  • Output: PNP output

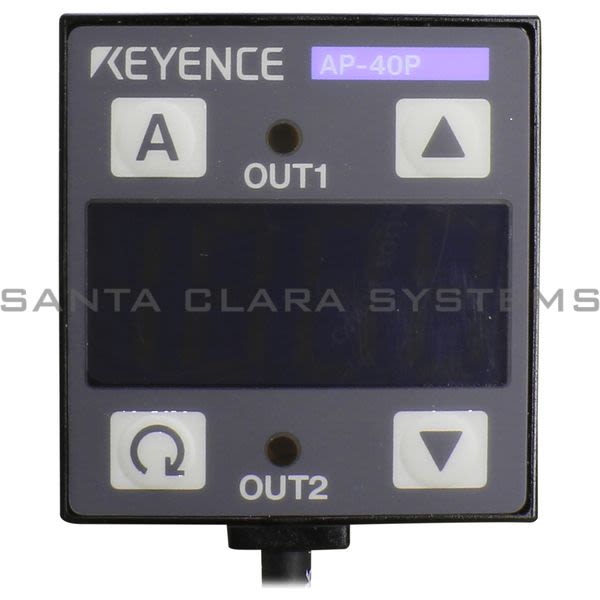

  • Display: 3 1/2-digit, 2-color, 7-segment LED (Character height: 11 mm 0.43"), Display cycle: 5 times/sec.
  • Applicable sensor head: AP-41, AP-43, AP-44
  • Detectable pressure range: -15% to +110% of F.S.
  • Display resolution: 0.1 kPa, 1 mmHg, 0.1 inchHg, 0.001 bar [AP-41] 0.001 MPa, 0.01 kgf/cm2, 0.2 Psi, 0.01 bar [AP-43] 0.2 kPa, 2 mmHg, 0.1 inchHg, 0.002 bar [AP-44]
  • Response time (chattering prevention function): 2.5/5/100/500 ms
  • Control output: PNP: 100 mA max. (30 V max.), Residual voltage: 1 V max. 2-output (N.O./N.C. selectable)
  • Analog voltage output: 1 to 5 V
  • Temperature fluctuation for display: 1.0% max. of F.S.
  • Temperature fluctuation for analog output: 2.0% max. of F.S.

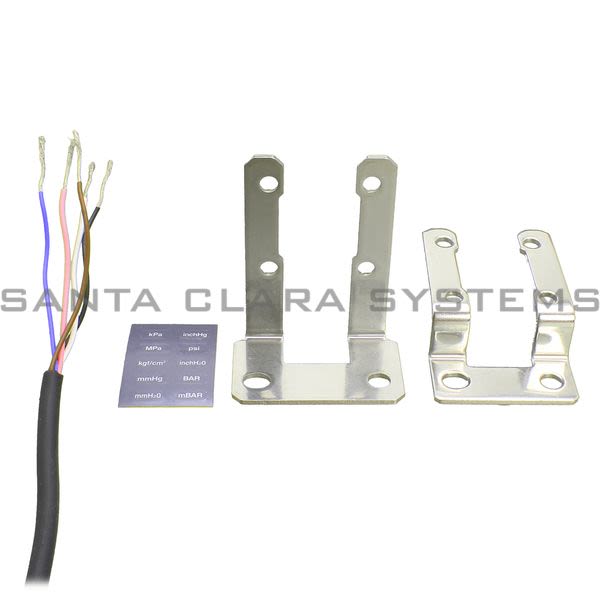

  • Mounting: With supplied mounting bracket (2 types) or optional panel mounting bracket*1
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on AP-40P . Santa Clara Systems carries 1,475 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
