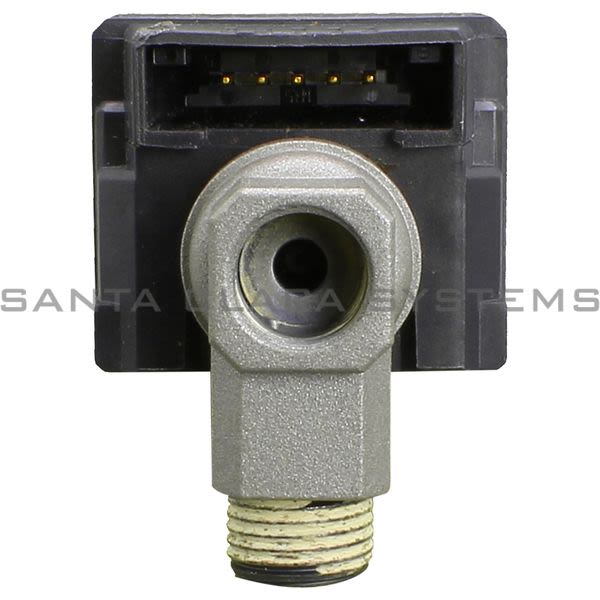

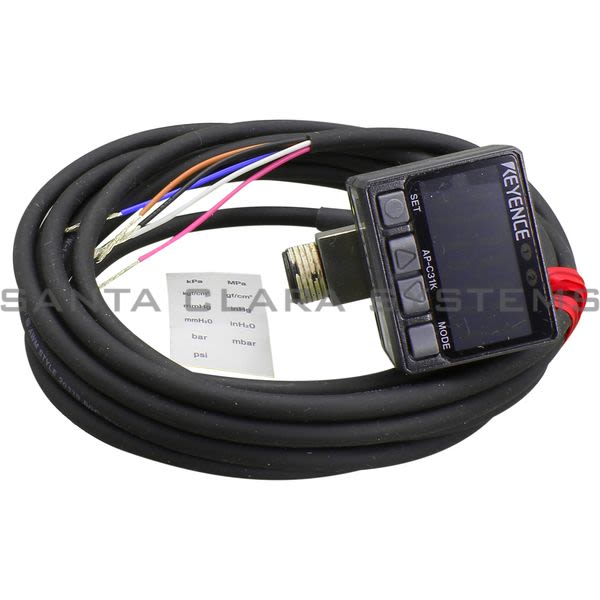

AP-C31K

Keyence - Sensor

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Sensor
Weight: 30 g (not including cables) / 78 g (including 2 m cable)
Housing material: Front case: polysarfun. Rear case: PBT. Front sheet: polycarbonate. Pressure port: die-cast zinc
Rated pressure range - Unit: Negative pressure
Rated pressure range - kPa: 0 to -101.3
Rated pressure range - kgf/cm: -
Rated pressure range - mmHg: 0 to -760
Rated pressure range - inHg: 0 to -29.9
Rated pressure range - psi: 0 to -14.69
Rated pressure range - bar: 0 to -1.013
Pressure resistance: 500kPa
Adaptive fluids: Air, non-corrosive gasses
Pressure type: Gauge pressure
Rating - Power supply voltage: 12 to 24 VDC +10% Ripple (P-P) 10% max.
Rating - Current consumption: 24 V operation (NPN/PNP)
Rating - Normal - Current consumption: 960 mW (40 mA) / 1320 mW (55 mA) max.
Rating - Eco mode - Current consumption: 720 mW (30 mA) / 960 mW (40 mA) max.
Display method: 3.5 digit two-color 7 segment LED (11 mm character height) display cycle: 10 times/second
Configuration/display range: -15 to +110% of F.S.

Operating status indicators: Red LED x 2 (supports control output 1 / control output 2)
Resolution - Standard mode - kPa: 0.1
Resolution - Standard mode - mmHg: 1
Resolution - Standard mode - inHg: 0.1
Resolution - Standard mode - psi: 0.02
Resolution - Standard mode - bar: 0.001
Repeatability: +0.2% of F.S.
Hysteresis: Variable (standard 0.5% of F.S.)
Display temperature characteristics: +1% of F.S. max.
Response (chatter prevention feature): Selectable from 2.5, 5, 100, 500 ms
Zero shift input: No-voltage input (without contacts) Input time 2 ms or greater (switchable with analog output).
Control output - NPN: NPN open collector max. 100 mA (40 V max.) residual voltage 1 V max., 2 outputs (N.O./N.C. switchable)
Control output - PNP: PNP open collector max. 100 mA (30 V max.) residual voltage 1 V max., 2 outputs (N.O./N.C. switchable)
Analog output: 1 to 5 V output impedance 1 k max. (switchable with zero shift input.)
Enviromental resistance - Ambient temperture: 0 to +50*C, no freezing
Enviromental resistance - Relative humidity: 35 to 85% RH, no condensation
Enviromental resistance - Vibration: 10 to 55 Hz, compound amplitude 1.5 mm, 2 hours for each of X, Y, and Z axes.
Pressure port: NPT 1/8 Bidirectional rotating type
