AP-V42W

Product Summary:

  • Output: NPN output
  • Resolution - Standard mode - AP-44: 0.01 kPa, 1 mmH2O, 0.01inH2O, 0.1mbar
  • Temperature characteristic: 1% of F.S. or less
  • Rating - Power consumption - At 12 V - Normal: 720 mW (60mA)
  • Rating - Power consumption - At 12 V - Eco mode: 480 mW (40mA)
Get a Quote

Current response time:

By 5AM PT on Wednesday
  • Description: Proximity Switch Sensor
  • Temperature characteristic: 1% of F.S. or less
  • I/O - Zero-shift input (selectable): Input time: 2 ms or more (switchable with analog output)
  • Unit expansion: Up to 8 extension units can be connected (a total of 9 units)
  • Rating - Power voltage: 12 to 24 VDC 10%, ripple (P-P): 10% or less
  • Rating - Power consumption - At 12 V - Normal: 720 mW (60mA)
  • Rating - Power consumption - At 12 V - Eco mode: 480 mW (40mA)
  • Rating - Power consumption - At 24 V - Normal: 960 mW (40mA)
  • Rating - Power consumption - At 24 V - Eco mode: 720 mW (30mA)
  • Environmental resistance - Ambient temperature: 0 to 50C 32 to 122F, no freezing
  • Environmental resistance - Ambient humidity: 35 to 85%RH (no condensation)
  • Environmental resistance - Vibration resistance: 10 to 55 Hz, 1.5 mm 0.06" double amplitude in X, Y, and Z directions, 2 hours respectively
  • Material: Polycarbonate

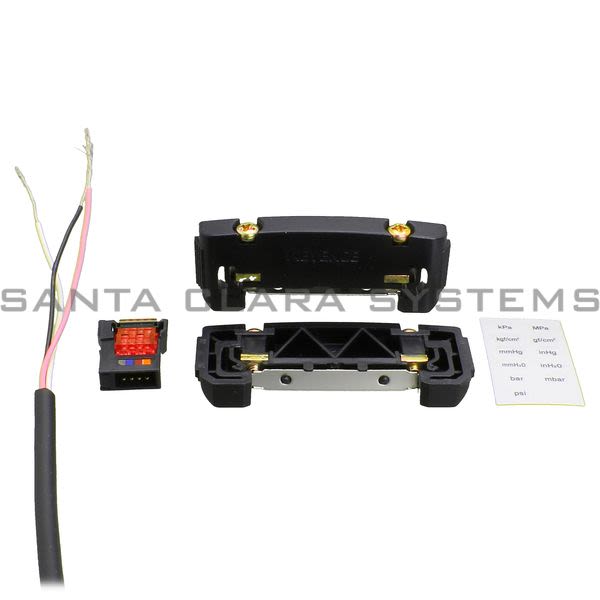

  • Accessories: End unit, head connection connector, extension warnings sticker
  • Weight: Approx. 80 g (with 2 m cable)
  • Output: NPN output
  • Display power: 4 1/2-digit, 2-color, 7-segment LED (Character height: 4.5 mm 0.18") AI indicator (green) Display cycle: 10 times/s
  • Operation indicator: Red LED 2 (corresponding to control output 1 and control output 2)
  • Resolution - Standard mode - AP-41M: 0.1 kPa, 1 mmHg, 0.1 inchHg, 0.01 psi, 0.001 bar
  • Resolution - Standard mode - AP-41: 0.001 kPa, 0.01 kgf/cm2, 0.1 psi, 0.01 bar
  • Resolution - Standard mode - AP-43: 0.1 kPa, 1 mmHg, 0.1 inchHg, 0.02 psi, 0.001 bar
  • Resolution - Standard mode - AP-44: 0.01 kPa, 1 mmH2O, 0.01inH2O, 0.1mbar
  • Resolution - Standard mode - AP-48: 0.1 kPa, 0.001 kgf/cm2, 0.02 psi, 0.001 bar
  • Resolution - Focus mode - AP-41M: 0.01 kPa, 0.1 mmHg, 0.01 inchHg, 0.002 psi, 0.1mbar
  • Resolution - Focus mode - AP-41: 0.1 kPa, 0.001 kgf/cm2, 0.02 psi, 0.001 bar
  • Resolution - Focus mode - AP-43: 0.02 kPa, 0.2 mmHg, 0.01 inchHg, 0.004 psi, 0.2 mbar
  • Resolution - Focus mode - AP-44: 0.001 kPa, 0.1 mmH2O, 0.001inH2O, 0.01mbar
  • Resolution - Focus mode - AP-48: 0.02 kPa, 0.2gf/cm2, -, -, 0.004 psi, 0.2 mbar
  • Hysteresis: Standard mode: 0.5% of F.S., high-resolution mode: 0.1% of F.S., hysteresis variable mode (F-2): variable
  • Response time (chattering prevention function): 1/2.5/5/100/500 ms (selectable; 1 ms is used when high-speed mode is selected)
  • I/O - Control output: Maximum NPN open-collector output: 20 mA (40 V or less), residual voltage: 1 V or less, 2 outputs (N.O./N.C. switchable)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on AP-V42W . Santa Clara Systems carries 1,405 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
