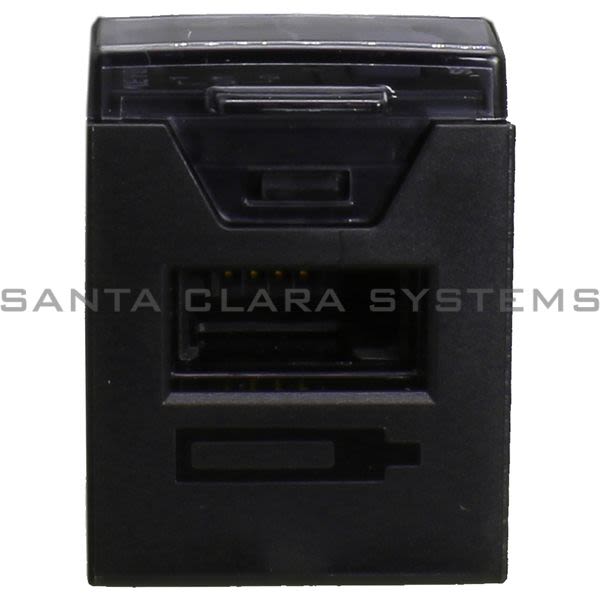

• Keyence AP-V80WP Amplifier Unit Product Image

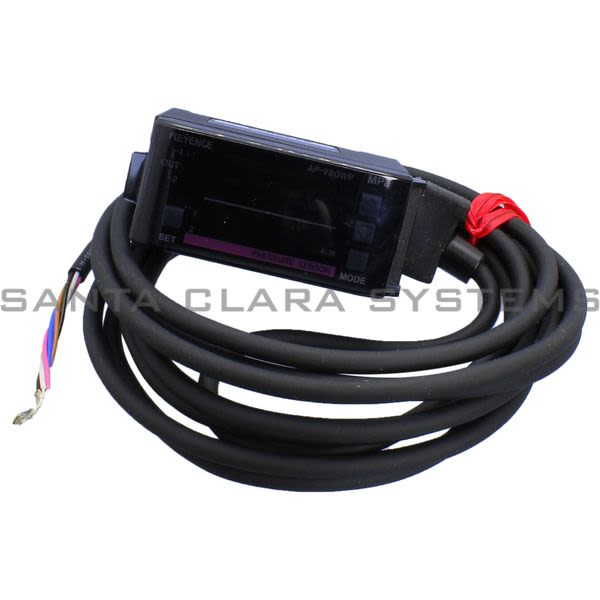

  • Keyence AP-V80WP Amplifier Unit Product Image

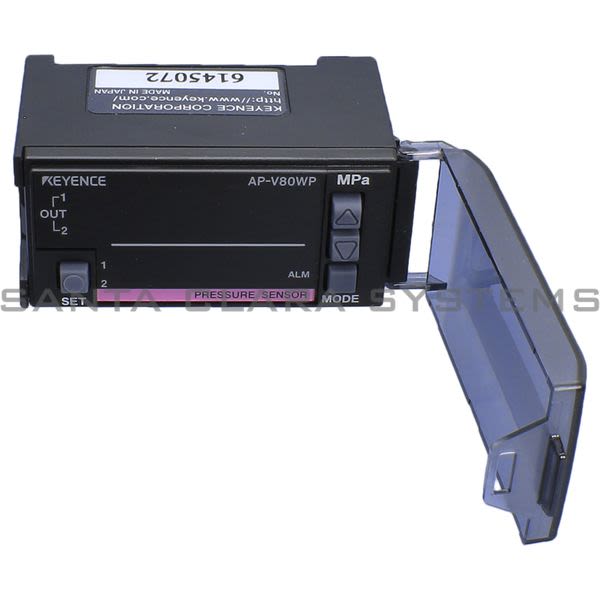

  • Keyence AP-V80WP Amplifier Unit Product Image
  • Keyence AP-V80WP Amplifier Unit Product Image

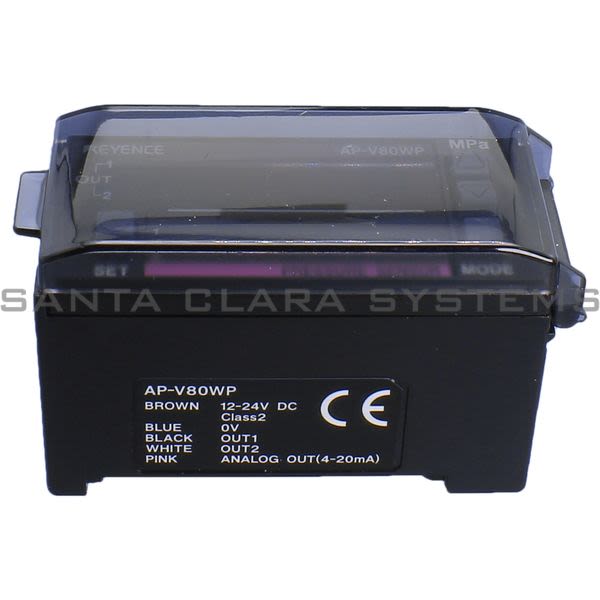

  • Keyence AP-V80WP Amplifier Unit Product Image
  • Keyence AP-V80WP Barcode

AP-V80WP

Product Summary:

  • Weight: Approx 85 g
  • Type: Standard , DIN
  • Output: PNP output
  • Material: Main unit and cover: polycarbonate, key tops: elastomer

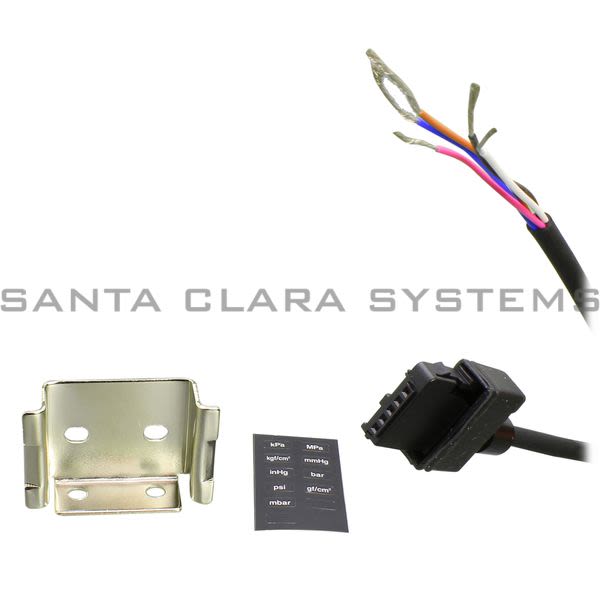

  • Accessories: DIN-rail mounting bracket, power cable
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Amplifier Unit
  • Weight: Approx 85 g
  • Footnotes: *1 Excluding the current for analog output. Including the current for the sensor head
  • Type: Standard , DIN
  • Output: PNP output
  • Material: Main unit and cover: polycarbonate, key tops: elastomer
  • Accessories: DIN-rail mounting bracket, power cable
  • Display power: 2-level display with 4 1/2-digit, 7-segment LED (Character height: Upper level: 8 mm 0.32", red, Lower level: 5.7 mm 0.22", green) Alarm indicator: Red LED
  • Operation indicator: Red LED 3 (corresponding to control output 1, control output 2, and the alarm indicator)
  • Resolution - Standard mode - AP-10SK: 0.1 inchHg
  • Resolution - Standard mode - AP-11SK: 0.1 inchHg
  • Resolution - Standard mode - AP-12SK: 0.01 PSI
  • Resolution - Standard mode - AP-13SK: 0.1 PSI
  • Resolution - Standard mode - AP-14SK: 1 PSI
  • Resolution - Standard mode - AP-15SK: 10 PSI
  • Resolution - Standard mode - AP-16SK: 10 PSI
  • Resolution - High-resolution mode - AP-10SK: 0.01 inchHg
  • Resolution - High-resolution mode - AP-11SK: 0.01 inchHg
  • Resolution - High-resolution mode - AP-12SK: 0.001 PSI
  • Resolution - High-resolution mode - AP-13SK: 0.01 PSI
  • Resolution - High-resolution mode - AP-14SK: 0.1 PSI
  • Resolution - High-resolution mode - AP-15SK: 1 PSI
  • Resolution - High-resolution mode - AP-16SK: 1 PSI
  • Hysteresis: Variable (Standard: 0.5% of FS; high-resolution: 0.1% of F.S.)
  • Response time (chatter prevention function): Selectable from 5, 10, 100, 500 and 1,000 ms
  • Control output: PNP open collector x 2 channels (N.O./N.C. selectable), 30 VDC max., 100 mA max. with residual voltage of 1 V max.
  • Analog output: 4 to 20 mA, Maximum load resistance: 260?
  • Zero-shift input/ bank input: Non-voltage input (contact or SSR) with input time of 20 ms or more.
  • I/O - Bank input (selectable): Input time: 20 ms or more (switchable between analog output and zero shift input)
  • Rating - Power voltage: 12 to 24 VDC Ripple (P-P) 10% or less
  • Power consumption - 12 V - Normal: 1380 mW (115 mA) or less*1
  • Power consumption - 12 V - Economy mode: 1020 mW (85 mA) or less*1
  • Power consumption - 24 V - Normal: 1920 mW (80 mA) or less*1
  • Power consumption - 24 V - Economy mode: 1200 mW (50 mA) or less*1
  • Environmental resistance - Operating temperature range: -10 to +50C 14 to 122F, No freezing
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude in X, Y, and Z directions, 2 hours respectively
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on AP-V80WP . Santa Clara Systems carries 1,903 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
