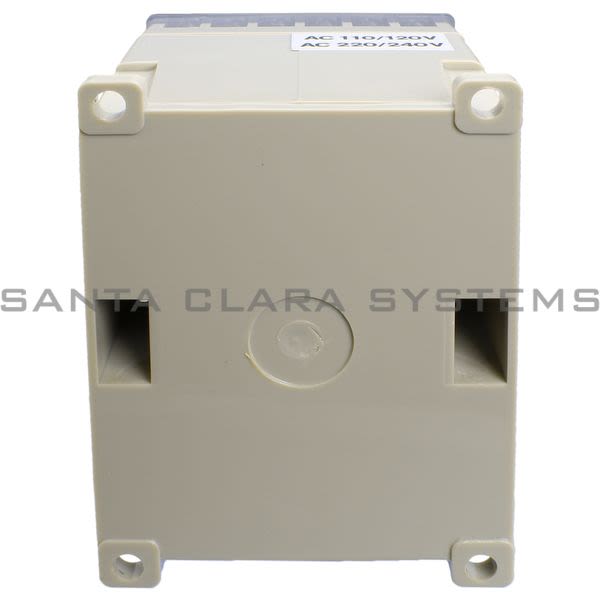

• Keyence AS-440-02 Sensor Amplifier Product Image

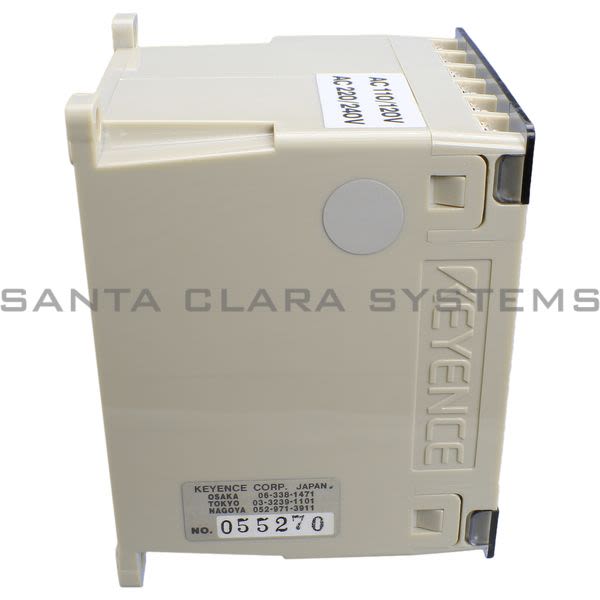

  • Keyence AS-440-02 Sensor Amplifier Product Image

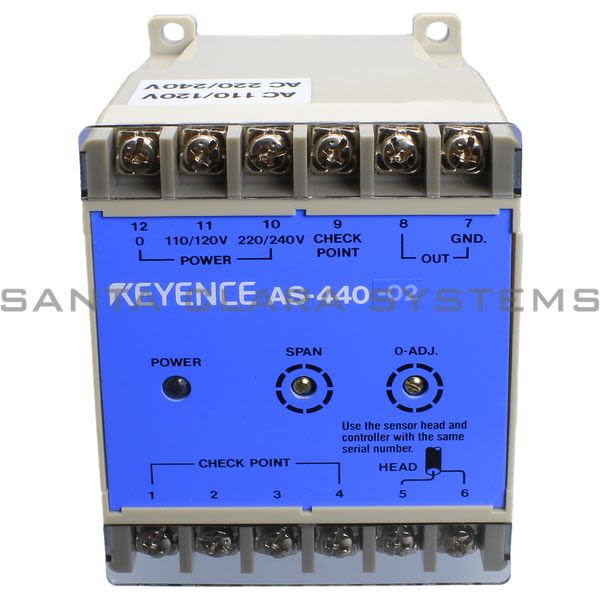

  • Keyence AS-440-02 Sensor Amplifier Product Image

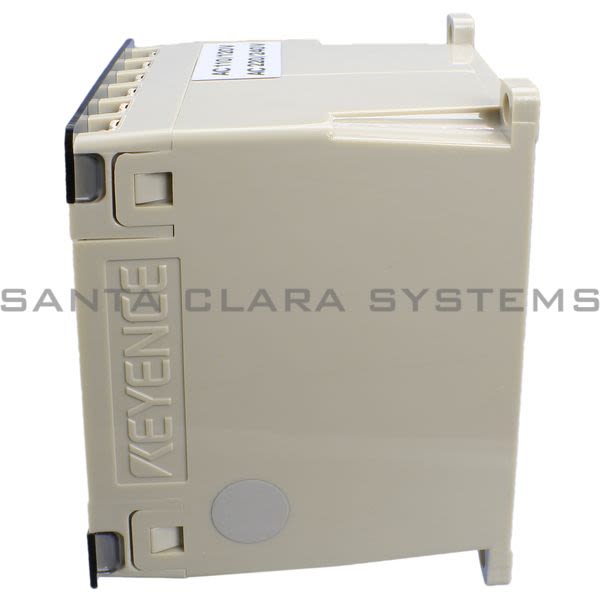

  • Keyence AS-440-02 Sensor Amplifier Product Image

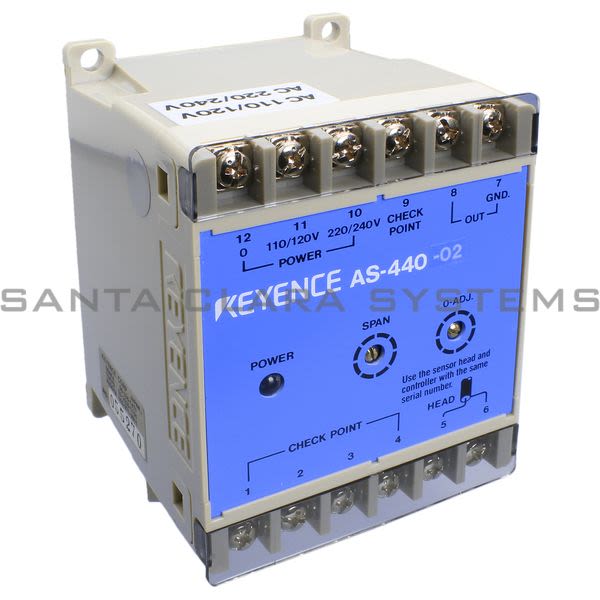

  • Keyence AS-440-02 Sensor Amplifier Product Image
  • Keyence AS-440-02 Barcode

AS-440-02

Product Summary:

  • Type: General-use amplifier unit
  • Sensor head: AH-110
  • Shape: M10 threaded
  • Measuring range: 0 to 2mm0.08"
  • Analog output voltage - Output voltage: 0 to 2V
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Sensor Amplifier
  • Rating - Power voltage: 110, 120, 220, 240 VAC 10%; 50/60 Hz
  • Rating - Power consumption: 5VA
  • Environmental resistance - Enclosure rating - Sensor head: IP67
  • Environmental resistance - Operating ambient temperature: -10 to +60C 14 to 140F, No freezing
  • Environmental resistance - Operating ambient temperature - Amplifier unit: 0 to +50C 32 to 122F
  • Environmental resistance - Operating ambient humidity: 35 to 85%RH (no condensation)
  • Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06", double amplitude, 2 hours in each of X, Y, and Z directions
  • Weight - Sensor head: Approx 55g
  • Weight (including cord) - Amplifier unit: Approx 320g
  • Footnotes: *1 When the distance between the sensor head and the target is within 50% of the measurement range.
  • Type: General-use amplifier unit
  • Sensor head: AH-110
  • Shape: M10 threaded
  • Measuring range: 0 to 2mm0.08"
  • Analog output voltage - Output voltage: 0 to 2V
  • Analog output voltage - Impedance: 100 ?
  • Analog output voltage - Resolution: 0.1% of F.S.
  • Analog output voltage - Linearity: 1% of F.S.
  • Analog output voltage - Response: 3.3 kHz (-3 dB)
  • Temperature fluctuation - Sensor head: 0.03% of F.S./C*1
  • Temperature characteristics - Amplifier unit: 0.05% of F.S./C*1
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on AS-440-02 . Santa Clara Systems carries 1,475 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
