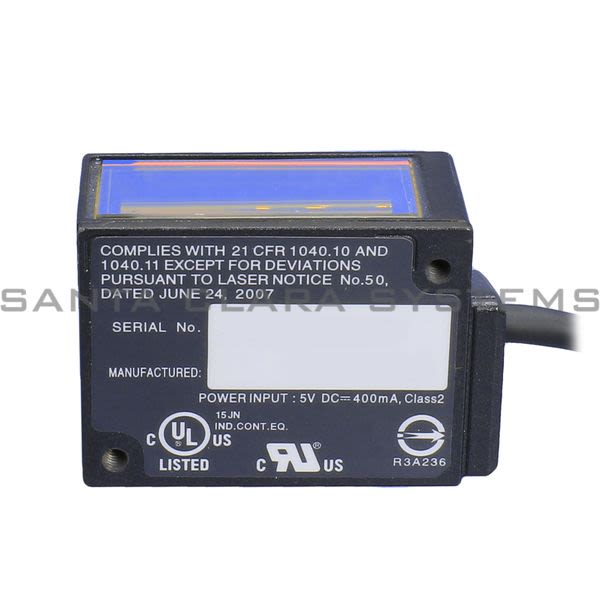

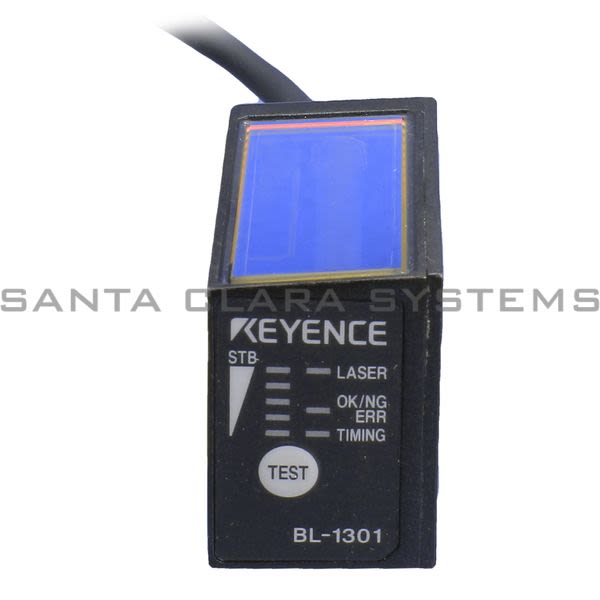

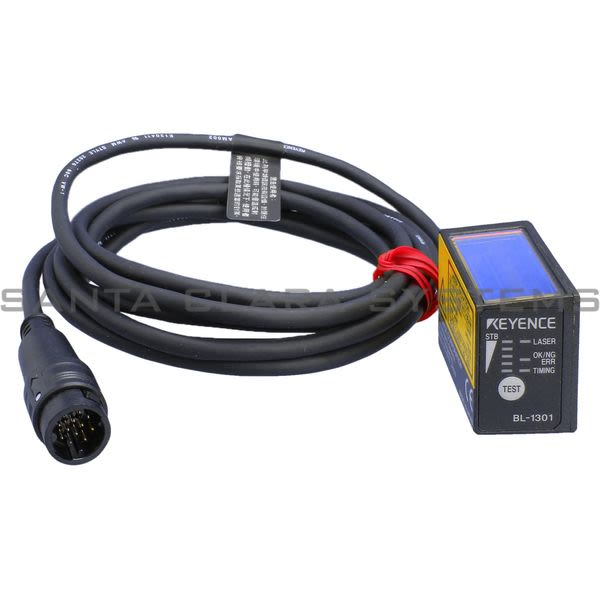

BL-1301

Keyence - Barcode Reader

Current response time:

15 Minutes 7 Seconds

Description: Barcode Reader
Weight: Approx 115 g
Footnotes: *1 Specifications at 500 scans/sec. *2 500 scans/sec. specifications *3 In order to conform with UL/IEC60950-1, use a Limited Power Source defined by UL/IEC60950-1.
Type: Standard type
Type - Reading direction: Front
Type - Scanning method: Raster
Laser - Light source: Visible semiconductor laser (wavelength: 660 nm)
Laser - Control output: 85 ?W
Laser - Pulse duration: 112 ?s

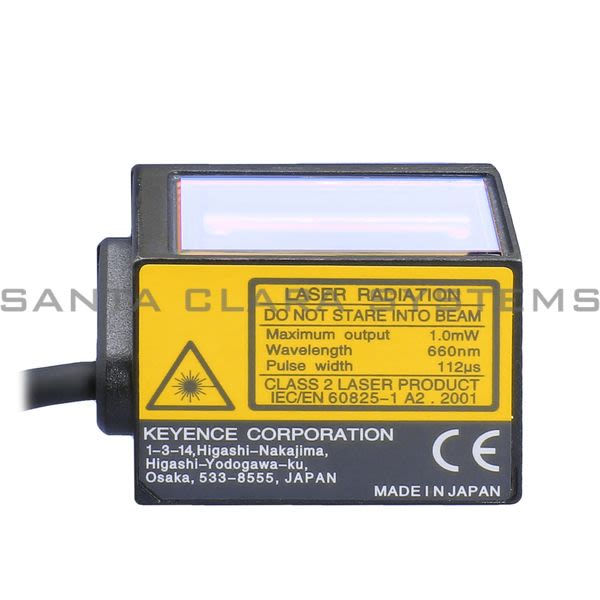

Laser - Laser class: Class 2 Laser Product (JIS C6802)
Reading - Supported codes: CODE39, ITF, Industrial2of5, Standard2of5, COOP2of5, CODABAR, CODE128, GS1-128, CODE93, UPC/EAN, GS1 DataBar
Reading - Number of readable digits: 74 digits (148 digits for CODE128 with start character C)
Reading - Readable bar width: 0.125 mm0.005"
Reading - Reading distance: 65 to 500 mm 2.56" to 19.69" (narrow bar width: 1.0 mm 0.04")*1
Reading - Focal point: 120 mm 4.72"
Reading - Largest readable label width: 339 mm 13.35" (distance: 350 mm 13.78", narrow bar width: 1.0 mm 0.04")*2
Reading - PCS: 0.4 or more
Reading - Scanning rate: 500 to 1,300 scans/sec. (in units of 100 scans)
I/O specifications - Input terminals - Number of inputs: 2 (IN1 and IN2)
I/O specifications - Input terminals - Input format: No-voltage input

I/O specifications - Output terminals - Number of outputs: 4 (OUT1, OUT2, OUT3, and OUT4)
I/O specifications - Output terminals - Output: NPN open collector
I/O specifications - Output terminals - Rated load: 24 VDC, 30 mA
I/O specifications - Output terminals - Leakage current (at OFF): 0.1mA or less
I/O specifications - Output terminals - Residual voltage (at ON): 0.5V or less
I/O specifications - Serial interface - Communication method: Conforms to EIA RS-232C
I/O specifications - Serial interface - Communication speed: 600, 1,200, 2,400, 4,800, 9,600, 19,200, 31,250, 38,400, 57,600, 115,200 bps
I/O specifications - Serial interface - Synchronization between the transmitter and receiver: Asynchronous
I/O specifications - Serial interface - Data bit length: 7 or 8 bits
I/O specifications - Serial interface - Stop bit length: 1 bit or 2 bits
I/O specifications - Serial interface - Parity check: None, odd, even
Rating - Power voltage: 5 VDC 5%
Rating - Voltage consumption: 400mA or less*3
Environmental resistance - Enclosure rating: IP65
Environmental resistance - Operating ambient luminance: Sunlight: 10,000 lux, incandescent lamp: 6,000 lux
Environmental resistance - Operating temperature range: 0 to +45C 32 to 113F
Environmental resistance - Ambient temperature for storage: -20 to +60C -4 to 140F
Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
Environmental resistance - Operating environment: No dust or corrosive gas present
Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude for 2 hours in each of the X, Y, and Z directions
