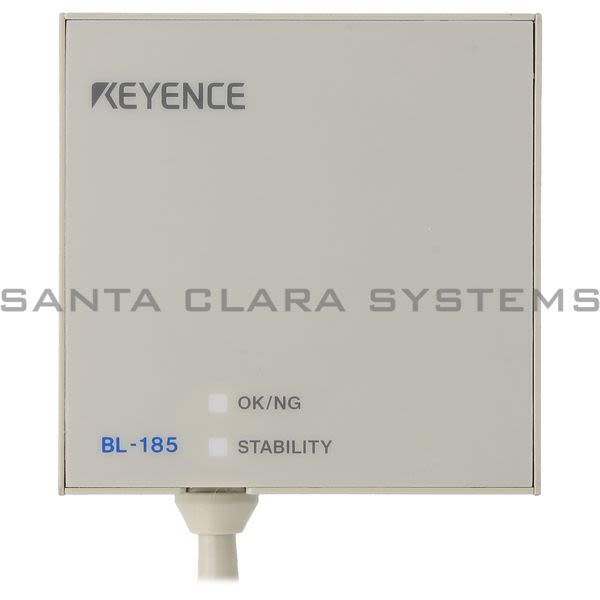

• Keyence BL-185-SO-7031 Barcode Reader Product Image

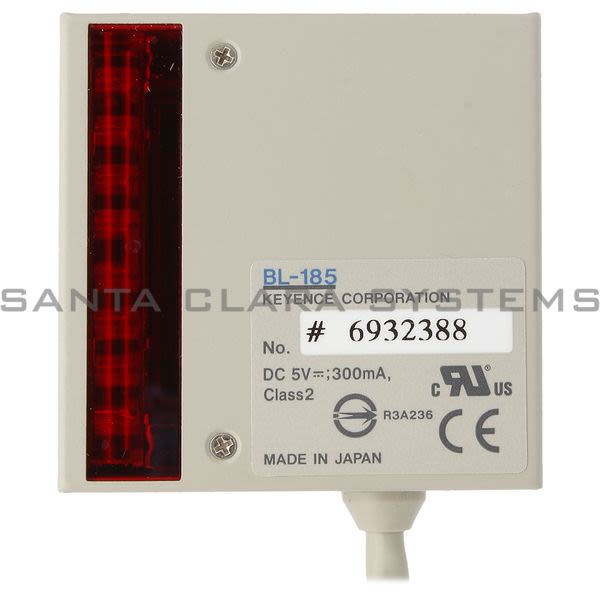

  • Keyence BL-185-SO-7031 Barcode Reader Product Image

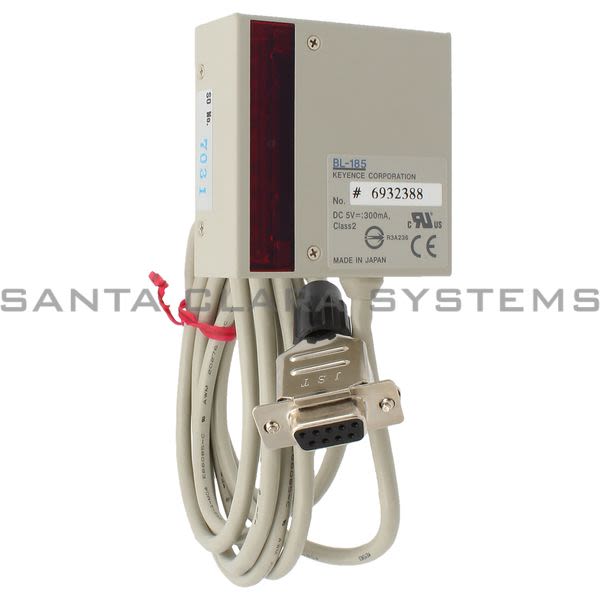

  • Keyence BL-185-SO-7031 Barcode Reader Product Image

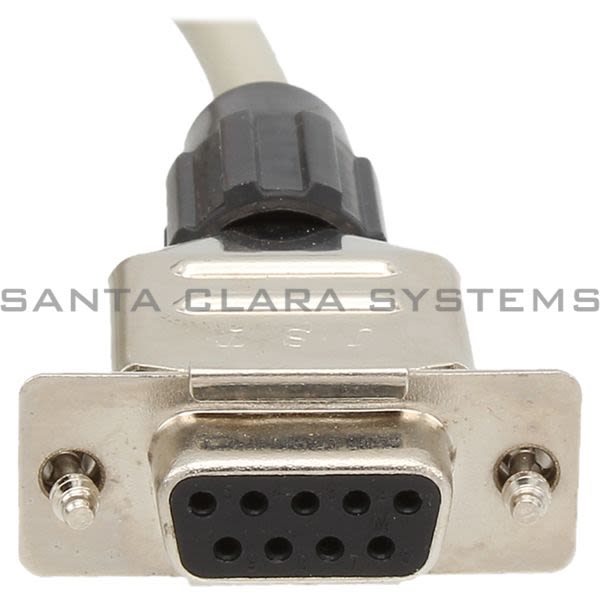

  • Keyence BL-185-SO-7031 Barcode Reader Product Image
  • Keyence BL-185-SO-7031 Barcode

BL-185-SO-7031

Product Summary:

  • Weight: Approx 180 g
  • Reading direction: Side
  • Light source/Light receiving element: LED/CCD image sensor
  • Readable bar width: 0.125 to 1.0 mm 0.005" to 0.039"*2
  • PCS: 0.45 or more (Refl ectance of white part: 75% or more)
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Barcode Reader
  • Weight: Approx 180 g
  • Footnotes: *1 33 5 mm 1.30" 0.20" when the narrowest bar is less than 0.19 mm 0.007". *2 Readable bar width indicates the range of the narrowest readable bar. *3 60 mm 2.36" when the narrowest bar is less than 0.19 mm 0.007". *4 Use a stable power supply of 5 VDC 5%.
  • Reading direction: Side
  • Light source/Light receiving element: LED/CCD image sensor
  • Reading distance: 33 10 mm 1.30"0.39" *1 (Using narrow bars of at least 0.19 mm 0.007" in width)
  • Readable bar width: 0.125 to 1.0 mm 0.005" to 0.039"*2
  • Largest readable label width: 80 mm 3.15" *3 (Using narrow bars of at least 0.19 mm 0.007" in width)
  • PCS: 0.45 or more (Refl ectance of white part: 75% or more)
  • Scanning rate: 500 scans/sec
  • Supported codes: CODE39, ITF, Industrial 2-of-5, COOP 2-of-5, Codabar, CODE128, EAN/UPC (AE)
  • Number of readable digits: 32 digits
  • Trigger input: Non-voltage input (contact or solid-state), TTL input is also possible.
  • Serial interface - Applied standard: RS-232C
  • Serial interface - Synchronization: Start-Stop
  • Serial interface - Transmission code: ASCII
  • Serial interface - Baud rate: 600/1200/2400/4800/9600/19200/31250/38400 bps
  • Serial interface - Data length: 7/8 bits
  • Serial interface - Parity check: None/Even/Odd
  • Serial interface - Stop bit length: 1 bit/2 bits
  • OK/NG output - Output form: NPN
  • OK/NG output - Rated load: 24 VDC, 100 mA
  • OK/NG output - Leakage current (at OFF): 0.1 mA max.
  • OK/NG output - Residual voltage (at ON): 0.5 V max.
  • Rating - Power voltage: 5 VDC 5% *4
  • Rating - Current consumption.: 300 mA
  • Environmental resistance - Operating ambient luminance: Sunlight, Incandescent lamp: 10000 lux, Fluorescent lamp: 3000 lux.
  • Environmental resistance - Operating temperature range: 0 to 40C 32 to 104F
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Operating environment: No dust or corrosive gas present
  • Environmental resistance - Vibration: 10 to 55 Hz, double amplitude 1.5 mm 0.06", 2 hours for each of X,Y,Z axis
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on BL-185-SO-7031 . Santa Clara Systems carries 1,913 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
