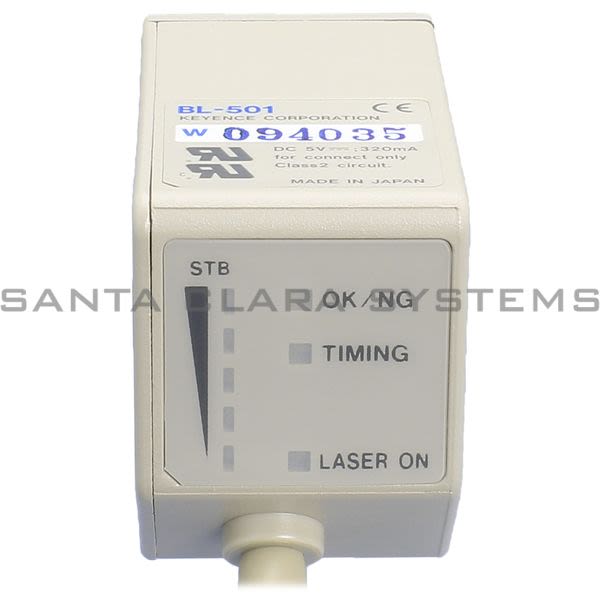

• Keyence BL-501-SO-7035 Laser Barcode Scanner Product Image

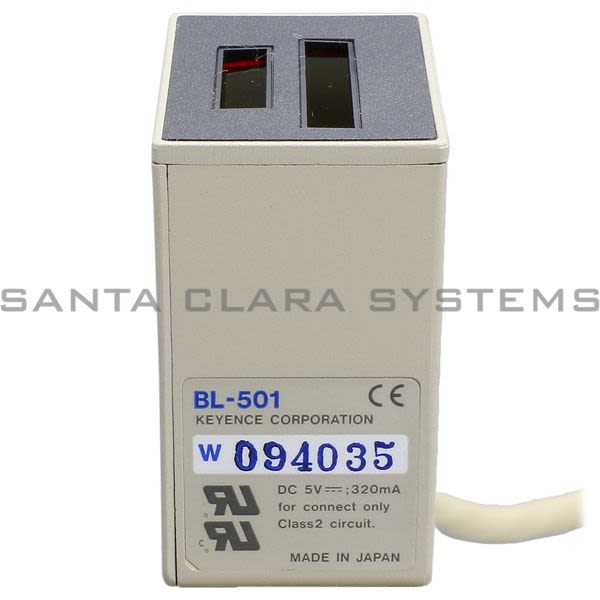

  • Keyence BL-501-SO-7035 Laser Barcode Scanner Product Image

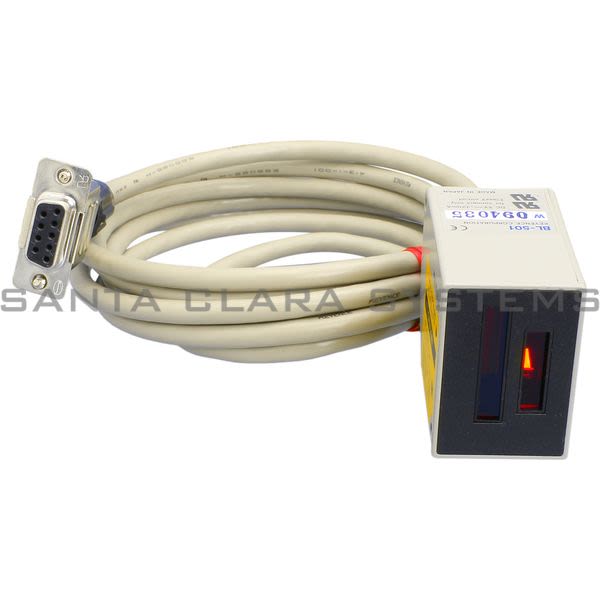

  • Keyence BL-501-SO-7035 Laser Barcode Scanner Product Image

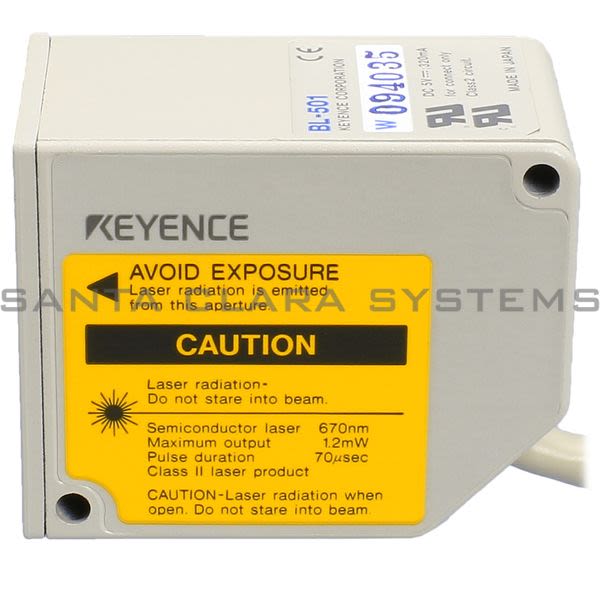

  • Keyence BL-501-SO-7035 Laser Barcode Scanner Product Image

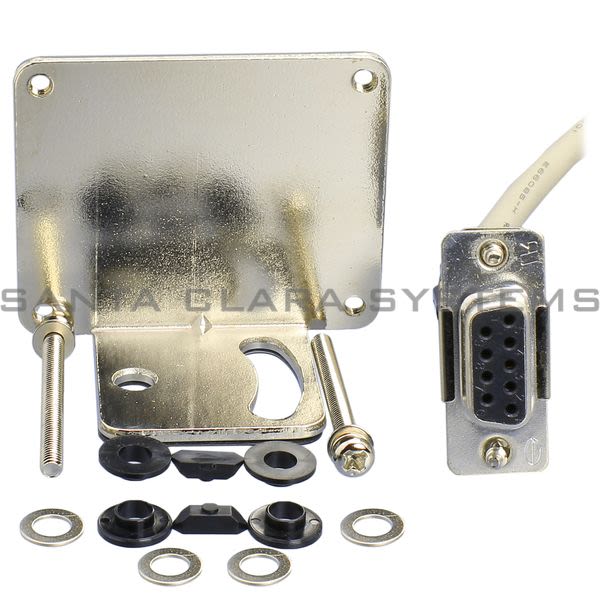

  • Keyence BL-501-SO-7035 Laser Barcode Scanner Product Image
  • Keyence BL-501-SO-7035 Barcode

BL-501-SO-7035

Product Summary:

  • Weight: Approx. 210 g
  • Type: Standard
  • Light source: Visible semiconductor laser
  • Reading direction: Front
  • Scanning method: Raster
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Laser Barcode Scanner
  • Weight: Approx. 210 g
  • Type: Standard
  • Light source: Visible semiconductor laser
  • Reading direction: Front
  • Scanning method: Raster
  • Light source - Wavelength: 670 nm
  • Light source - Class - FDA: Class II
  • Light source - Class - IEC 825-1 11. 1993: Class 2
  • Light source - Class - DIN EN 60825-1 07. 1994: Klasse 2
  • Reading distance: 80 to 240 mm
  • Readable bar width: 0.25 to 1.0 mm
  • Maximum readable label width: 194 mm (at 220 mm reading distance)
  • PCS: 0.6 or more (reflective of white part: 75% or more)
  • Scanning rate: 500 scan/sec
  • Target code: CODE39, ITF, Industrial2 of 5, COOP2 of 5, Codabar, CODEW128, EAN/UPC(a-e)
  • No. of readable digits: 32 digits
  • Trigger input: Non-voltage input (contact or solid-state) *TTL input is also possible
  • Rated load: 24 V DC, 30 mA
  • Enclosure rating: IP-64
  • Ambient light: Sunlight: 10,000 lux, Incandescent lamp: 7,000 lux.
  • Current consumption: 320 mA max.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on BL-501-SO-7035 . Santa Clara Systems carries 1,903 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
