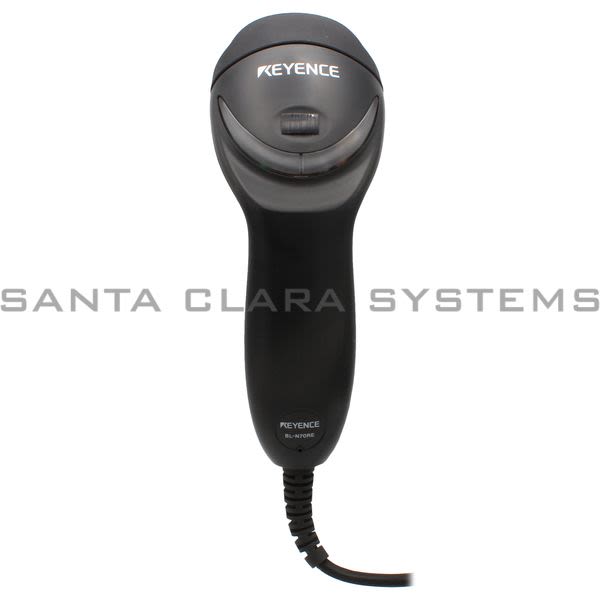

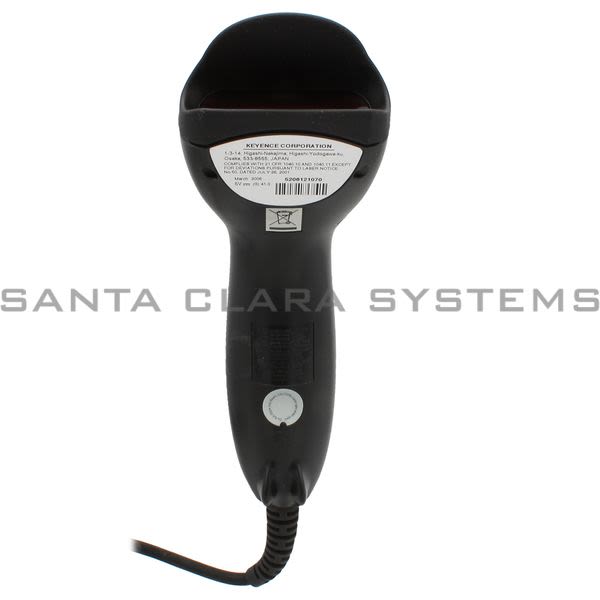

BL-N70RE

Keyence - Barcode Reader

Current response time:

By 5AM PT on Monday

Emergency?

Description: Barcode Reader
Weight: Approx 101 g
Footnotes: *1 The classifi cation is implemented based on IEC 60825-1 following the requirement of Laser Notice No.50 of FDA (CDRH). *2 An AC adapter is included for BL-N70RE. The power supply voltage for the included AC adapter is 100-240V AC. OP-99022(AC Cord) is required. BL-N70RE does not comply with the requirements on CE Marking.
Light source - Type: Visible red semiconductor laser (Wavelength: 650 nm)
Light source - Output: 40 ?W
Light source - Pulse duration: 1.5 ms
Light source - Laser class: Class 1 Laser Product (IEC 60825-1, FDA (CDRH) Part 1040.10*1)
Interface: RS-232C*2
Supported codes: JAN/EAN/UPC (A, E), CODE39, CODE128/EAN128, NW-7, CODE93, ITF, 2of5, RSS-14, RSS-14 Truncated, RSS-14 Stacked, RSS-14 Stacked Omnidirection, RSS Limited, RSS Expanded, RSS Expanded Stacked
Scanning rate: 72 scans/sec
Reading distance: 0 to 177 mm 0" to 6.97" (When narrow bar width is 0.66 mm 0.03")

Minimum narrow bar width: 0.125 mm 0.005"
PCS: 0.35
Number of readable digits: 3 to 40 digits max. (CODE128, CODE-C: 80 digits)

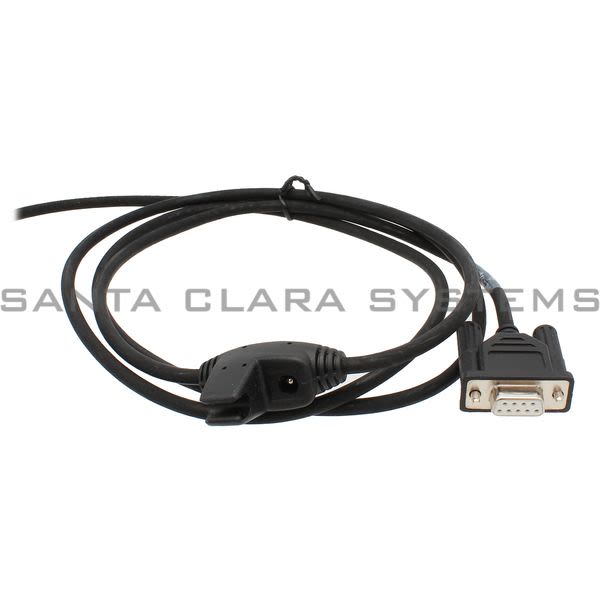

Wired communication unit - Connector shape: D-sub 9-pin (Female)
EMI: EN 55022, Class B
Rating - Power voltage: 5 VDC ± 5%
Rating - Current consumption.: 250mA or less
Environmental resistance - Operating ambient luminance: 4800 lx
Environmental resistance - Operating temperature range: 0 to 40°C 32 to 104°F
Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
Environmental resistance - Operating environment: No dust or corrosive gas present

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on BL-N70RE . Santa Clara Systems carries 2,110 items from Keyence.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
