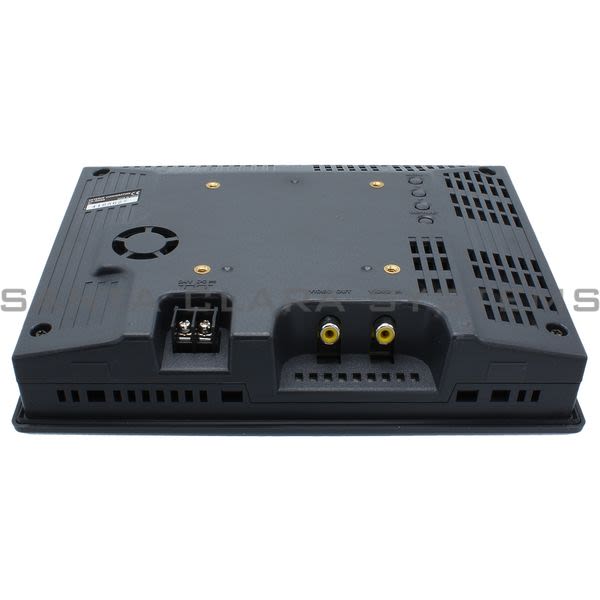

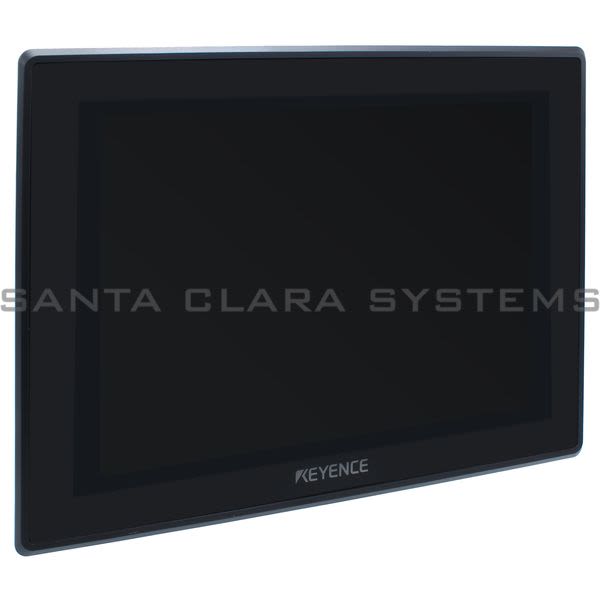

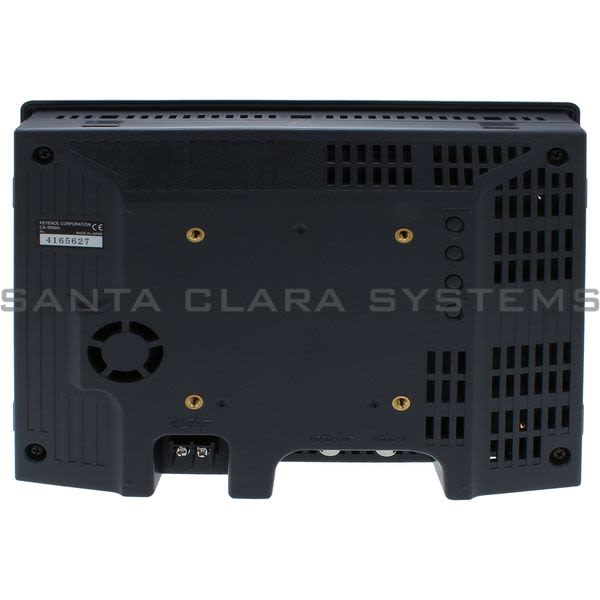

• Keyence CA-MN80 Machine Vision Color LCD Panel Product Image
  • Keyence CA-MN80 Machine Vision Color LCD Panel Product Image
  • Keyence CA-MN80 Machine Vision Color LCD Panel Product Image
  • Keyence CA-MN80 Machine Vision Color LCD Panel Product Image
  • Keyence CA-MN80 Barcode

CA-MN80

Product Summary:

  • Display panel - Display color: a-Si, TFT active matrix method
  • Display panel - No. of dots: 640 (W) 480 (H) dots
  • Input/Output - Input signal: NTSC composite signal (1.0Vp-p,75 ?)
  • Input/Output - Input signal mode: ?
  • Rating - Power voltage: 24 VDC 10%
Get a Quote

Current response time:

17 Minutes 33 Seconds
  • Description: Machine Vision Color LCD Panel
  • Input/Output - Connector: RCA pin jack (1 each for input and output)
  • Rating - Power voltage: 24 VDC 10%
  • Rating - Current consumption.: 1 A max.
  • Environmental resistance - Ambient temperature: 0 to 40? 32F to 104F
  • Environmental resistance - Operating Ambient humidity: 35 to 85%RH
  • Weight: Approx 1200 g
  • Display panel - Display color: a-Si, TFT active matrix method
  • Display panel - No. of dots: 640 (W) 480 (H) dots
  • Display panel - Active display area: 170.9 mm (W) 128.2 mm (H) 67.283" 5.047"
  • Structure: Panel-mount type, Only the front face is dust-proof andsplash-proof equivalent to IP65f.
  • Backlight - Duration: Approx. 50,000 hours on average (when installed in an upright position at 25C 77F)
  • Input/Output - Input signal: NTSC composite signal (1.0Vp-p,75 ?)
  • Input/Output - Input signal mode: ?
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CA-MN80 . Santa Clara Systems carries 1,405 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
