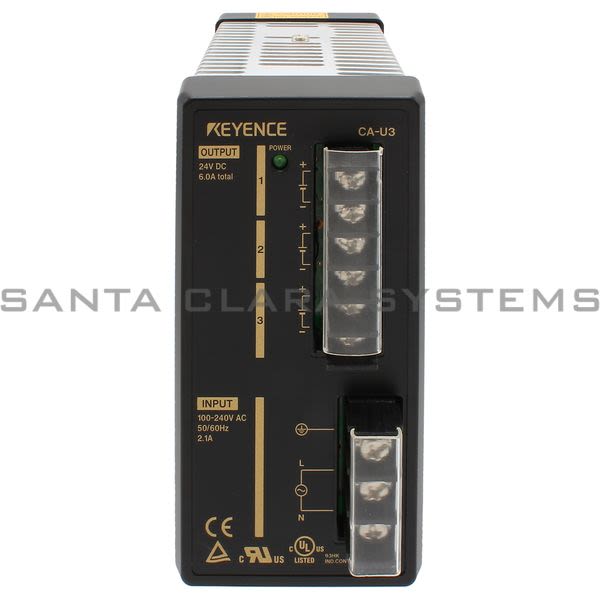

• Keyence CA-U3 Power Supply Product Image

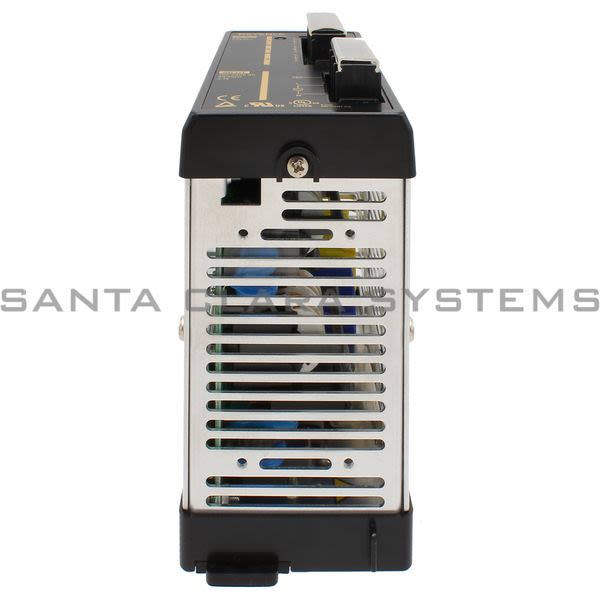

  • Keyence CA-U3 Power Supply Product Image

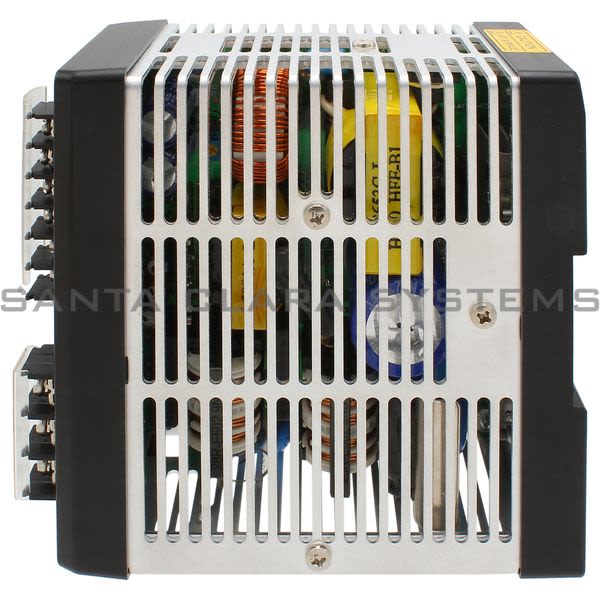

  • Keyence CA-U3 Power Supply Product Image

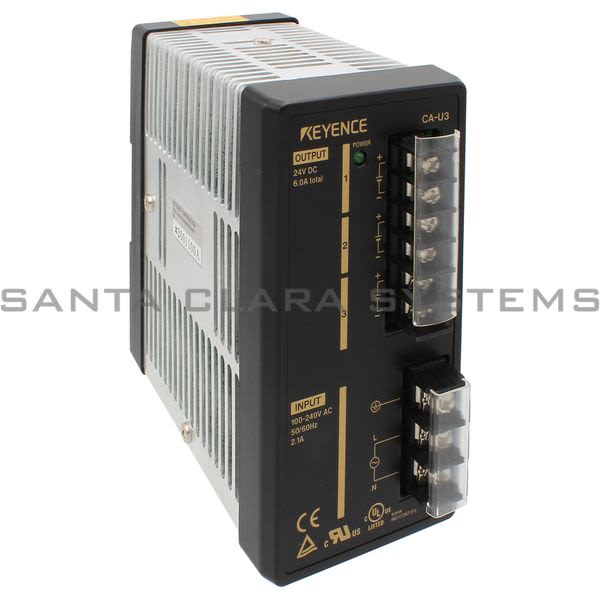

  • Keyence CA-U3 Power Supply Product Image
  • Keyence CA-U3 Barcode

CA-U3

Get a Quote

Current response time:

8 Minutes 34 Seconds
  • Description: Power Supply
  • Weight: Approx 700 g
  • Footnotes: *1 Specifi ed with the rated input voltage (100 or 200 VAC) and 100% load applied. *2 Automatic recovery occurs after dropping. When output is interrupted, wait for 1 minute or longer after the input is turned off, and then turn on the input for recovery. *3 Output is cut off by an amplitude interrupting system. When output is interrupted, wait for 1 minute or longer after the input is turned off, and then turn on the input for recovery.
  • Input conditions - Rated input voltage: 100 to 240 VAC (10%), 50/60 Hz
  • Input conditions - Rated input current: 2.1 A max.
  • Inputconditions - Efficiency: 78 to 80% (typical)
  • Input conditions - Power factor (100/200 VAC): 0.99/0.95 (typical) with maximum load applied
  • Input conditions - Leakage current (100/200 VAC): 0.4/0.75 mA max.
  • Input conditions - Rush current (100/200 VAC): 18/36 A max. (at 25C 77F cold start)
  • Output conditions - Rated output voltage: 24 VDC, Class2
  • Output conditions - Rated output current: 6.0 A (Total of 3 output terminals)
  • Output conditions - Ripple/noise voltage: 1% (p-p) max.
  • Output conditions - Input fluctuation: 0.4% max.
  • Output conditions - Load fluctuation: 0.7% max.
  • Output conditions - Starting time (100/200 VAC): 1,300/700 ms max.*1
  • Output conditions - Output holding time: 20 ms min. (100 to 240 VAC)
  • Protection - Overvoltage protection: Constant current drops or output is cut off at 7.9 A or max.*2
  • Safety standards: UL60950-1, UL508, CAN/CSA C-22.2 60950-1-3, EN60950-1
  • Noise terminal voltage: FCC part 15B class A, EN55011 class A
  • Radiated interference field strength: FCC part 15B class A, EN55011 class A
  • Limits for harmonic current emissions: Conforms to EN61000-3-2
  • Environmental resistance - Ambient temperature: -10 to +55C 14 to 131F (No freezing) (Refer to derating characteristics)
  • Environmental resistance - Operating Ambient humidity: 25 to 85% (No condensation)
  • Environmental resistance - Vibration resistance: 10 to 55 Hz, Double amplitude of 1.5 mm 0.06" max.2 hours each in X, Y, and Z directions (9.8 m/s2 max. when mounted on a DIN-rail)
  • Environmental resistance - Impact resistance: 300 m/s2, 2 times for each direction of 3 axes
  • Environmental resistance - Ambient temperature for storage: -20 to +70C -4 to 158F(no freezing)
  • Environmental resistance - Overvoltage category: II
  • Environmental resistance - Pollution degree: 2
  • Environmental resistance - Withstand voltage: 3.0 KVAC 50/60 Hz/1 min (Input-output) 2.0 KVAC 50/60 Hz/1 min (Input-GND) 500 VDC/1 min (Output-GND)
  • Environmental resistance - Insulation resistance: 100 M? min. at 500 VDC (Input-output) (Input-GND) (Output-GND)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CA-U3 . Santa Clara Systems carries 2,096 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
