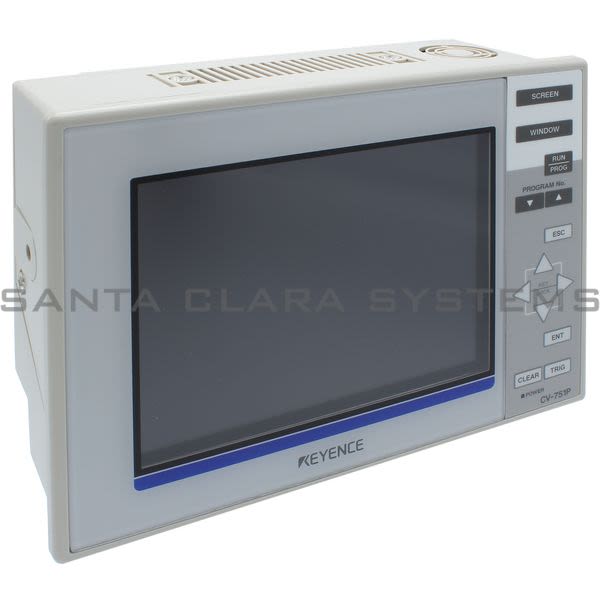

• Keyence CV-751P Operator Interface Product Image

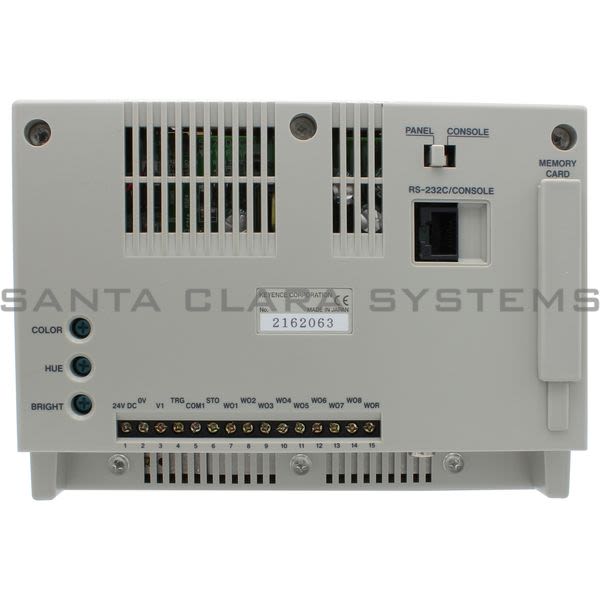

  • Keyence CV-751P Operator Interface Product Image

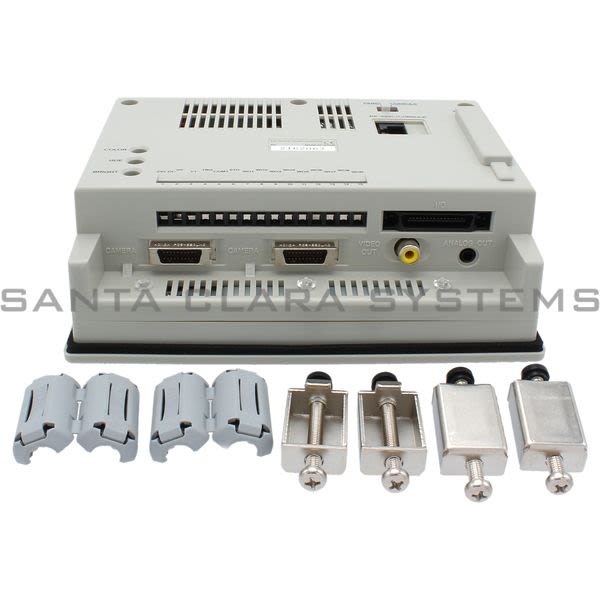

  • Keyence CV-751P Operator Interface Product Image

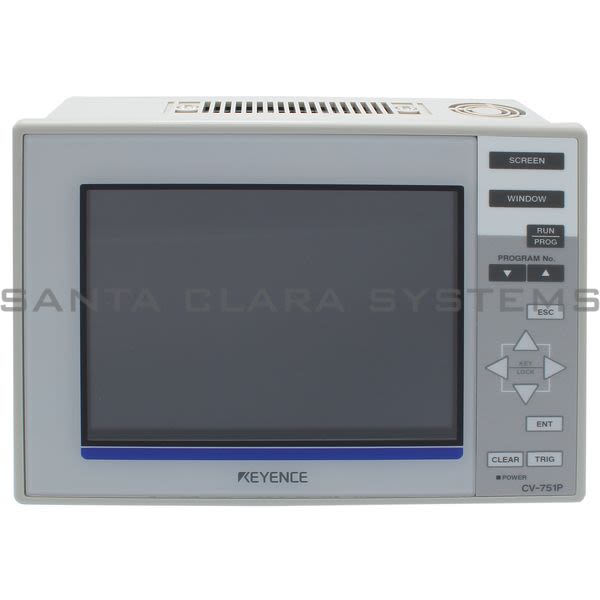

  • Keyence CV-751P Operator Interface Product Image
  • Keyence CV-751P Barcode

CV-751P

Product Summary:

  • Type: Built-in monitor type
  • No. of pixels: 508 (H) x 480 (V): 240,000 pixels
  • Functions - Mode - Absolute position detection: 4/program, Window shape: square
  • Functions - Mode - Relative position detection: 4/program, Window shape: square
  • Functions - Mode - Inspection mode - Width measurement: 8/program, Window shape: square
Get a Quote
           or
  • Description: Operator Interface
  • Functions - Setup menu: Save parameter upon setting
  • Input - Camera input: 2
  • Input - Control input - External trigger: 1 (Non-voltage input)
  • Input - Control input - Program selection: Data input (x4), 16 programs selectable (Non-voltage input)
  • Input - Control input - Continuous detection: Detection is continued without an external trigger when the program No. is changed while CONT input is on. (Non-voltage input)
  • Input - Control input - Screen registration: 2. Screens are registered by a trigger signal while REC input is on. (Non-voltage input)
  • Input - Control input - Display/output window selection: Data input (x3), 8 windows selectable (Non-voltage input)
  • LCD monitor - Panel: TFT 5.5 inch, full color
  • LCD monitor - Backlight: Cold cathode fluorescent tube (Life: 40,000 hrs)
  • Memory card: Compact Flash memory
  • Video output: Conforming to NTSC system
  • RS-232C interface: 1 ch, numerical value output and control input/output (Baud rate: 38,400 bps max. selectable)
  • Control output: PNP: 9, 50 mA max. (30 V max.)
  • Numerical value output: Binary 13 bits, 10 mA max. (30 V max.)
  • Analog output: 0 to 4 V output, output impedance: 100 ?
  • Display language: Japanese/English selectable
  • Power supply voltage: 24 VDC 10%
  • Current consumption: 1.4 A
  • Ambient temperature: 0 to 40C 32F to 104F
  • Relative humidity: 35 to 85%, No condensation
  • Weight: Controller: Approx. 900 g
  • Type: Built-in monitor type
  • No. of pixels: 508 (H) x 480 (V): 240,000 pixels
  • Process cycle: 30 c/s (Varies depending on the setting.)
  • Binary level: Color binary conversion processing by color extraction or color shade processing
  • Program registration: 16 programs (8 programs when two cameras are used) Programs are externally selectable.
  • No. of registered screens: 16 screens (1 screen/program or 2 screens/program)
  • Functions - Mode - Area sensor: 8 max./program, Window shape: circle/square/free square
  • Functions - Mode - Absolute position detection: 4/program, Window shape: square
  • Functions - Mode - Relative position detection: 4/program, Window shape: square
  • Functions - Mode - Inspection mode - Width measurement: 8/program, Window shape: square
  • Functions - Mode - Inspection mode - Pitch measurement: 8/program, Window shape: square
  • Functions - Mode - Inspection mode - Edge count: 8/program, Window shape: square
  • Functions - Mode - Inspection mode - Count: 8/program, Window shape: square/circle
  • Functions - Mode - Inspection mode - Flaw detection: 8/program, Window shape: square/circle/circumference/arc
  • Functions - Mode - Inspection mode - Point sensor: 8/program, 8 points/window
  • Functions - Mode - Inspection mode - Center-of-gravity: 8/program, Window shape: square/circle
  • Functions - Adjustment - Position adjustment: Color shade search/line sensor/color binary processing (Center of gravity, principal axis angle, X-/Y-axis direction, 180rotation)
  • Functions - Adjustment - Illumination adjustment: 1 illumination adjustment window/program (2/program when 2 cameras are used.)
  • Functions - Adjustment - Pre-processing (Filter function): Expand/shrink/median/average/edge emphasis/edge extraction/shading/brightness up/tint up/invert
  • Functions - Auto-sequence: Continuous processing of 4 programs max (Up to 32 inspections [4 programs x 8 windows] can be continuously processed)
  • Functions - Data calculation: Unit conversion (pixel, mm, inch) + Offset
  • Functions - Screen save: 8 screens
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CV-751P . Santa Clara Systems carries 1,357 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
